Phaser 3610, WorkCentre 3615 Service Manual4-62
REP 2.14 MSI Feed Solenoid
PL 2.6 MSI
Removal
1. Remove the Drum Cartridge ().
2. Remove (REP 1.2 Front Cover Assembly (3610 / 3615)).
3. Disconnect P/J 15. (Figure 1)

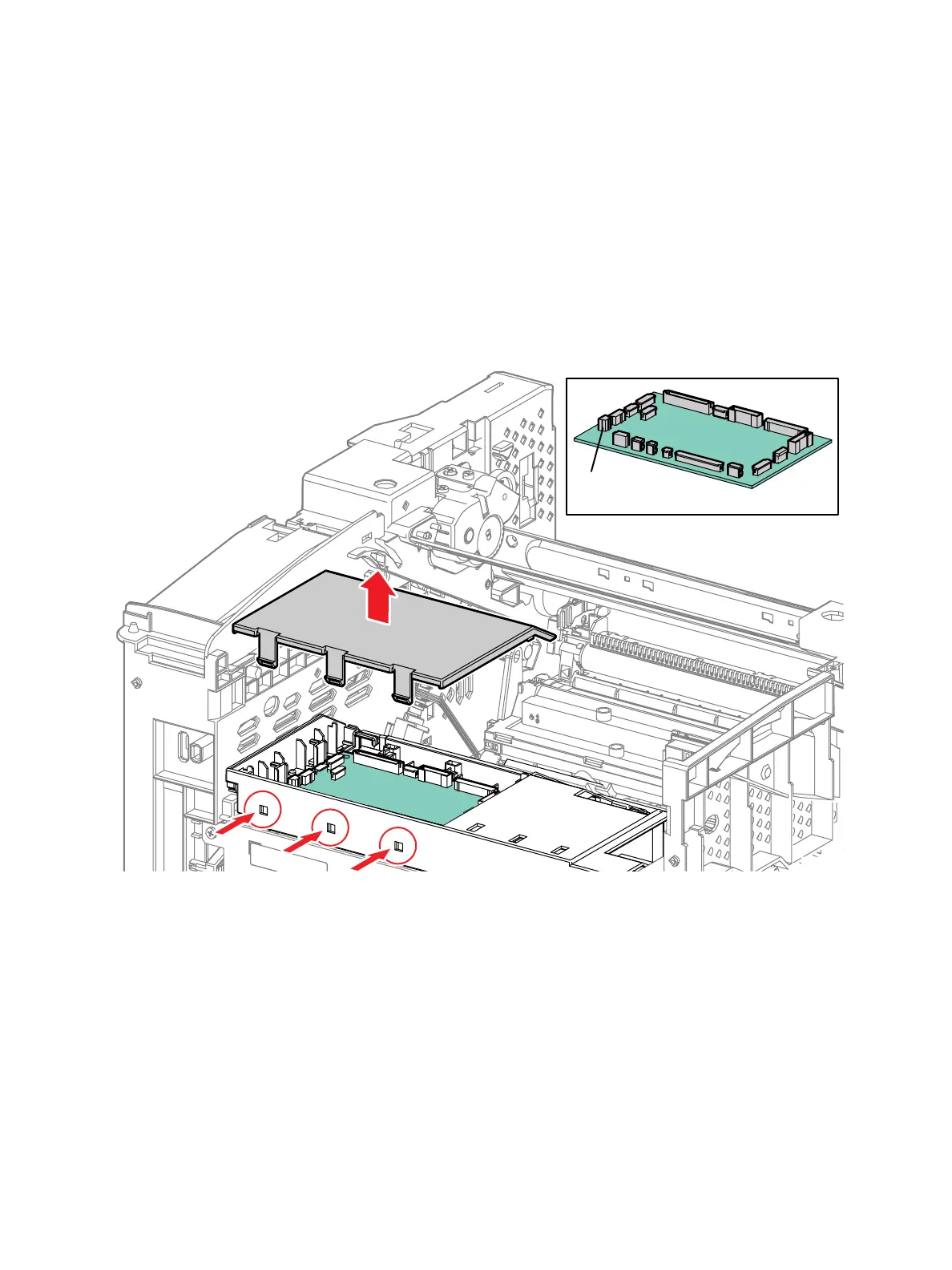

a. Release 3 clips to remove the MCU PWB Cover.
b. Disconnect P/J 15, and release the harness from all the chassis clips.
Figure 1
s3610-03
P15
To Next Page
