Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-55
REP 2.10 Rear Interlock Switch Assembly
PL 2.4 Duplex Chute
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 1.6 Right Side Cover (3610)) (REP 1.13 Right Side Cover (3615)).
2. Remove (REP 5.2 ESS PWB Housing).

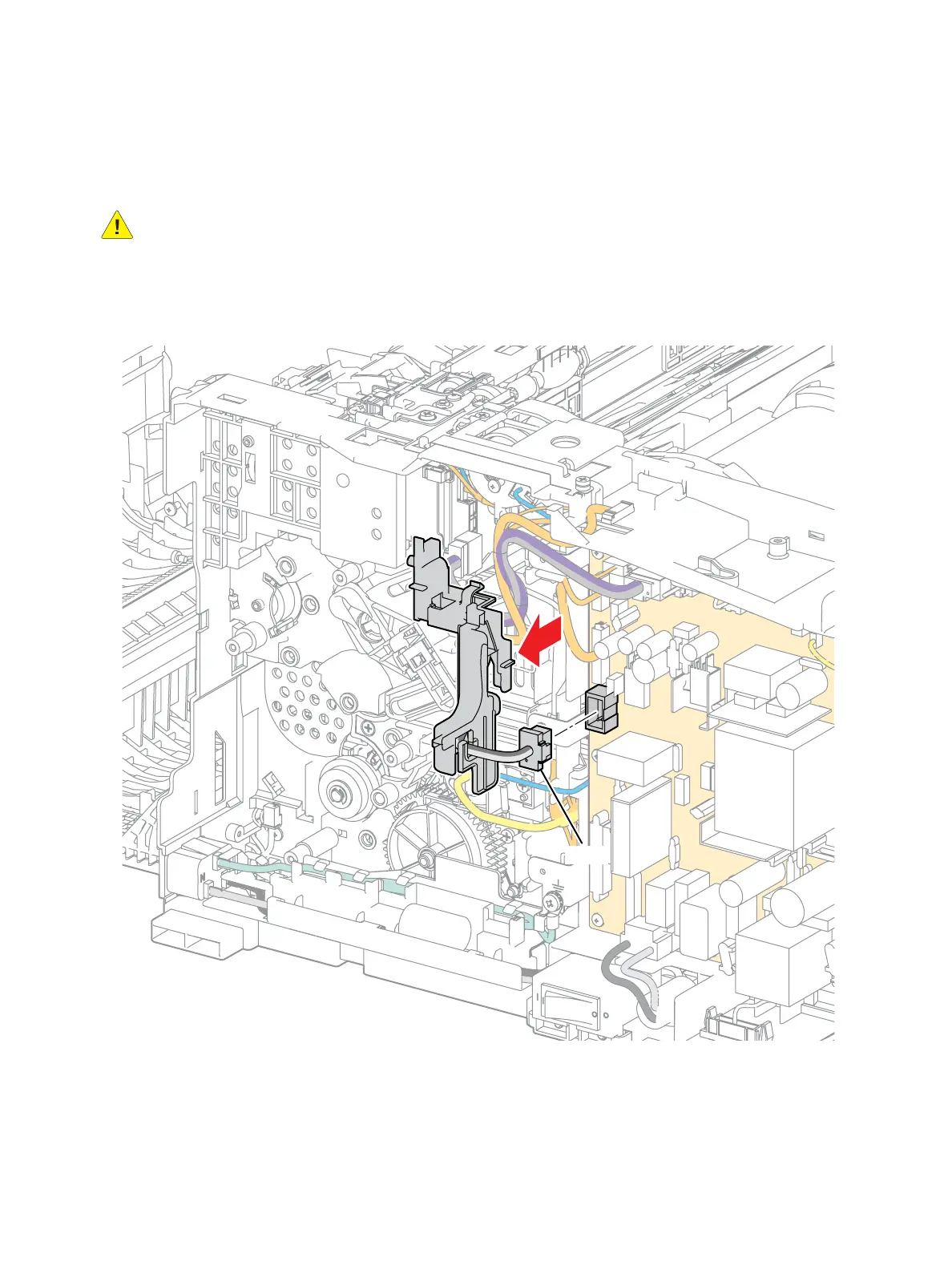

3. Disconnect P/J201 from the LVPS, and move the harness guide. (Figure 1)
Figure 1
s3610-06
6
P/J201
