Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-74
REP 3.3 Xerographic Connector Assembly
PL 3.3 Toner Dispense
Removal
1. Remove the Bypass Tray.
2. Remove (REP 1.2 Front Cover Assembly (3610 / 3615)).

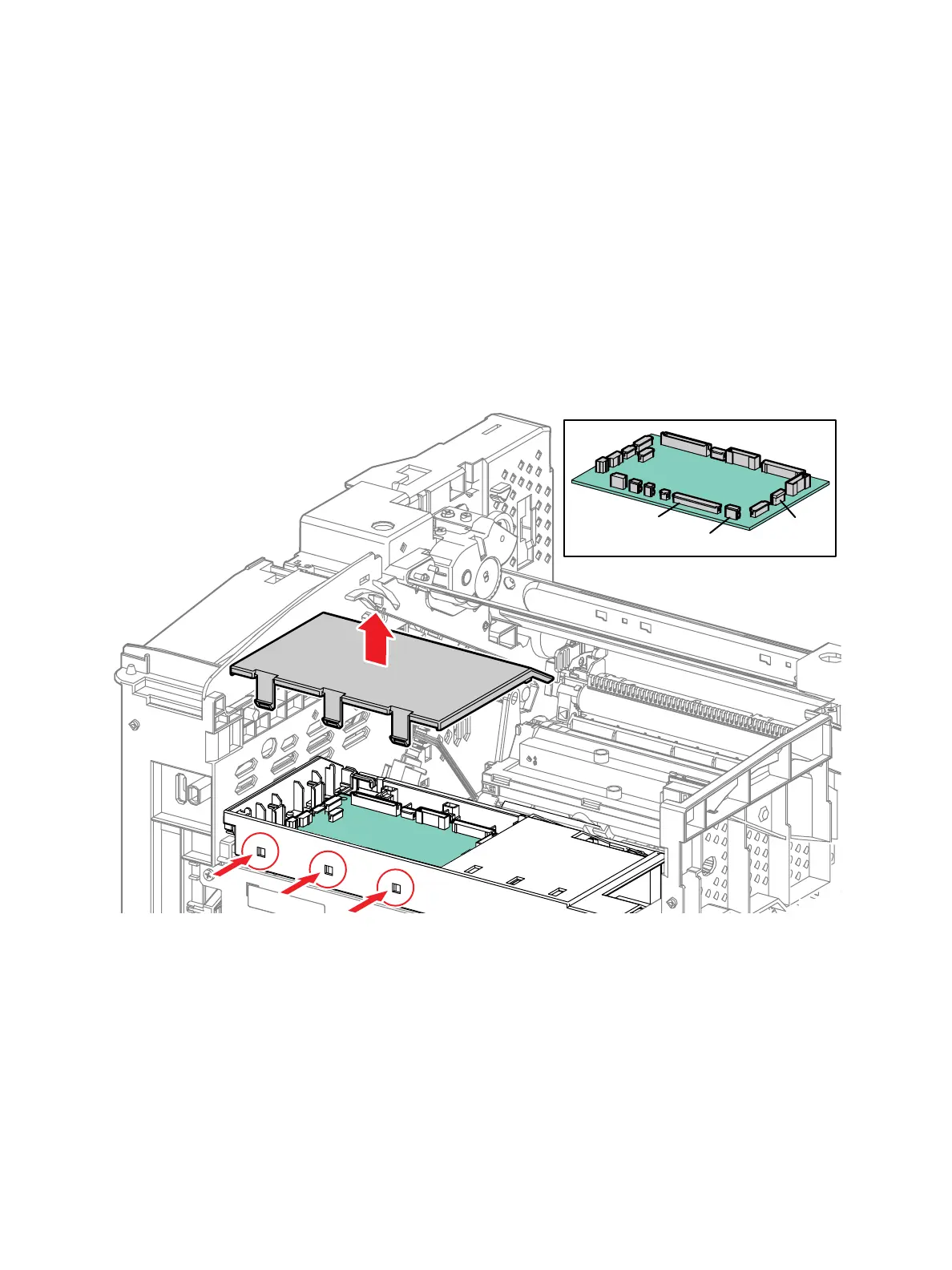

3. Prepare the MCU PWB. (Figure 1)
a. Release 3 clips to remove the MCU PWB Cover.
b. Disconnect all MCU PWB connections except P/J11, 18 and 26.
Note: Do not remove the MCU PWB.
Figure 1
s3610-03
5
P11
P18
P26
