Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-73
Replacement
1. You may need to release the wire harness in the housing to connect P/J 253

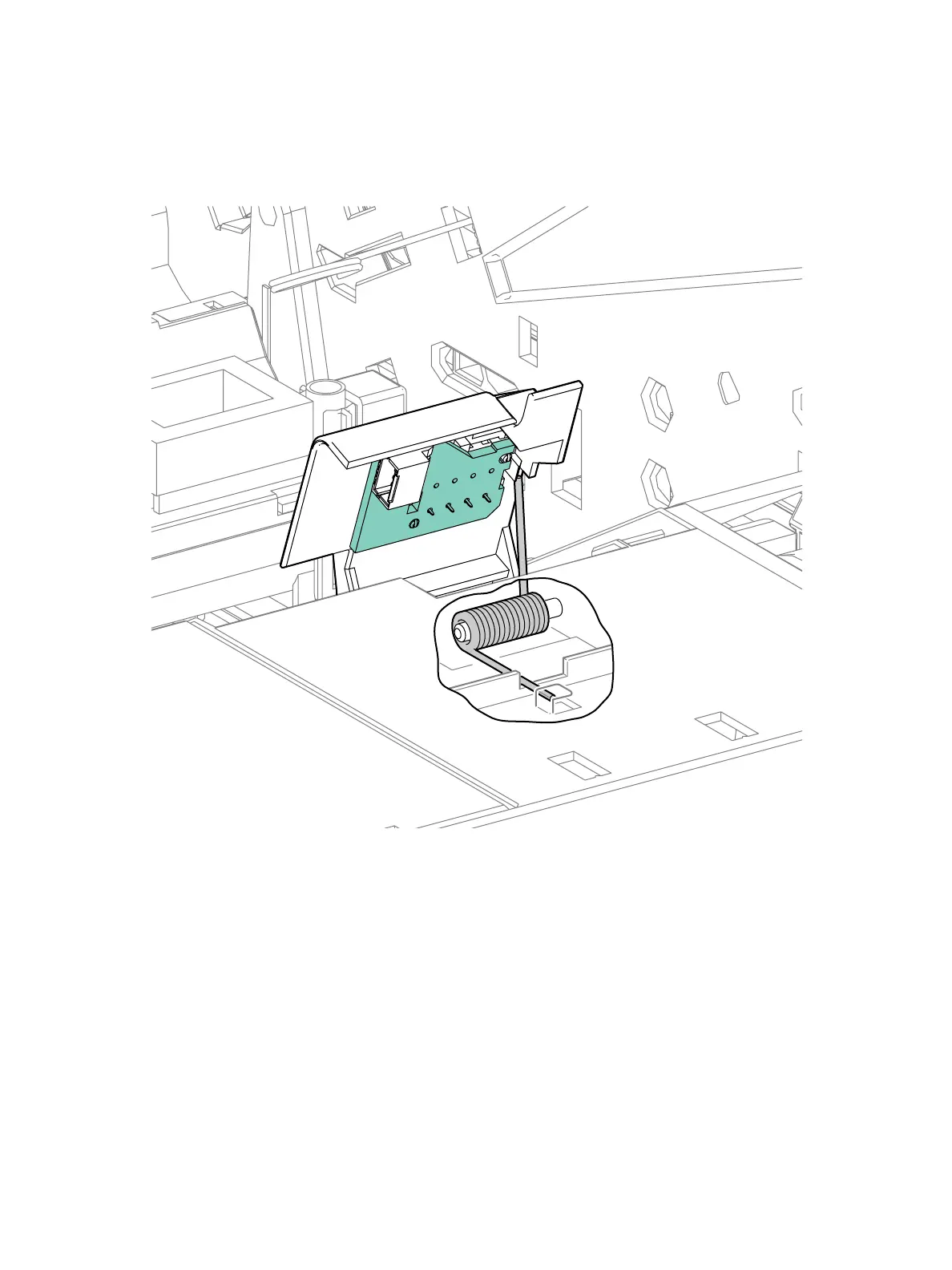

2. When closing the CRUM Housing, install the CRUM spring correctly. (Figure 3)
Figure 3
3. Test the spring tension after you close the housing.
4. Replace in reverse order.
s3610-041
