Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-21
REP 1.12 Control Panel (3615)
PL 1.5 Control Panel (3615)
Removal
1. Remove (REP 1.16 Upper Left Side Cover (3615)).
2. Release the tab on the left side of the Front Scanner Cover, move the cover to the left and lift to
remove.

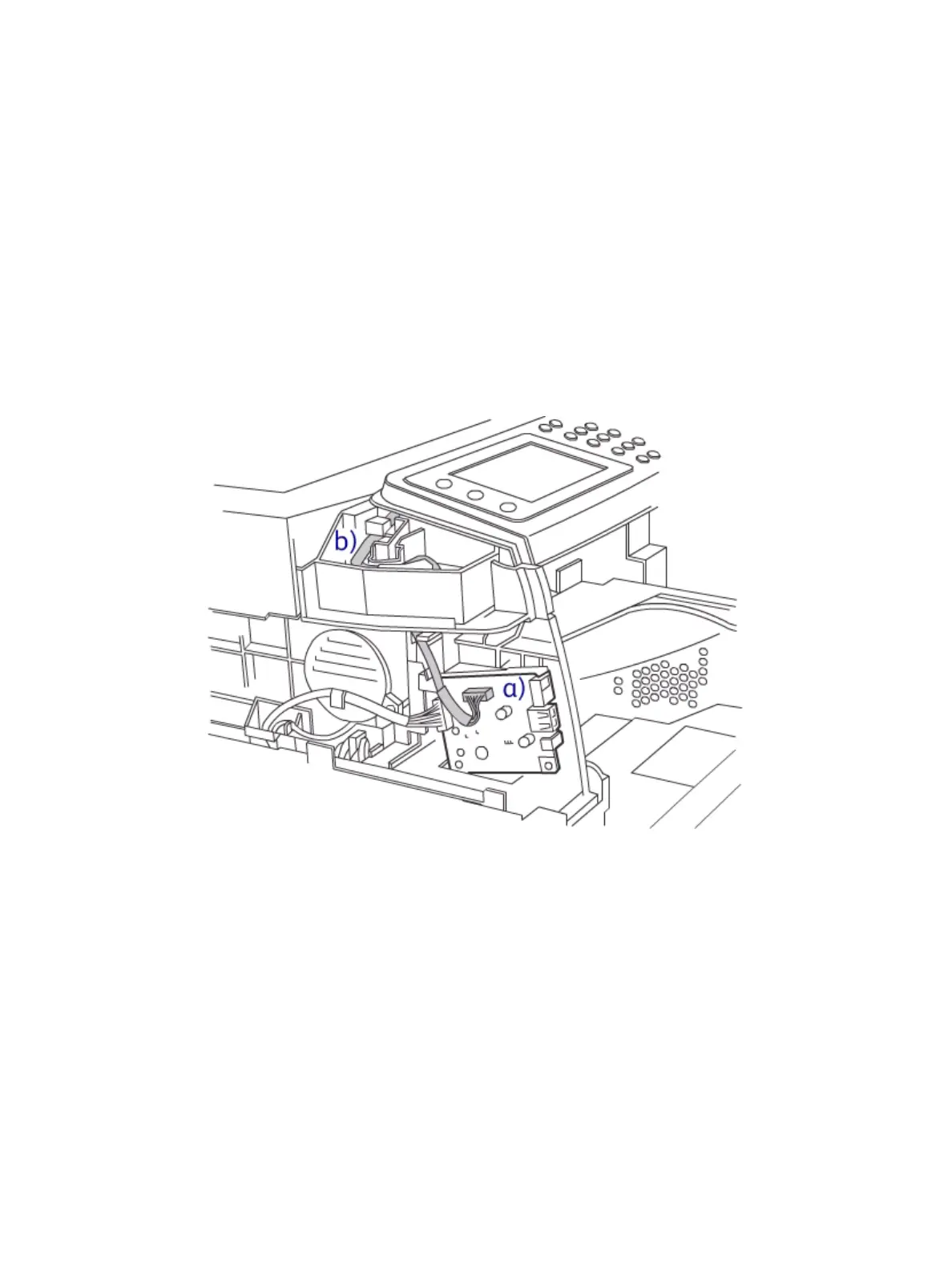

3. Disconnect P/J830 from the Front USB PWB. (Figure 1)
a. Disconnect P/J 830
b. Release the wire harness from the clips and gently pull the harness up through the access hole
in the chassis.
Figure 1

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
