Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-110
REP 5.8 HVPS (3615)
PL 5.3 Electrical (MCU PWB / HVPS)
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove the Bypass Tray.
2. Remove (REP 1.2 Front Cover Assembly (3610 / 3615)).
3. Remove (REP 1.5 Rear Cover Assembly).
4. Remove (REP 1.13 Right Side Cover (3615)).

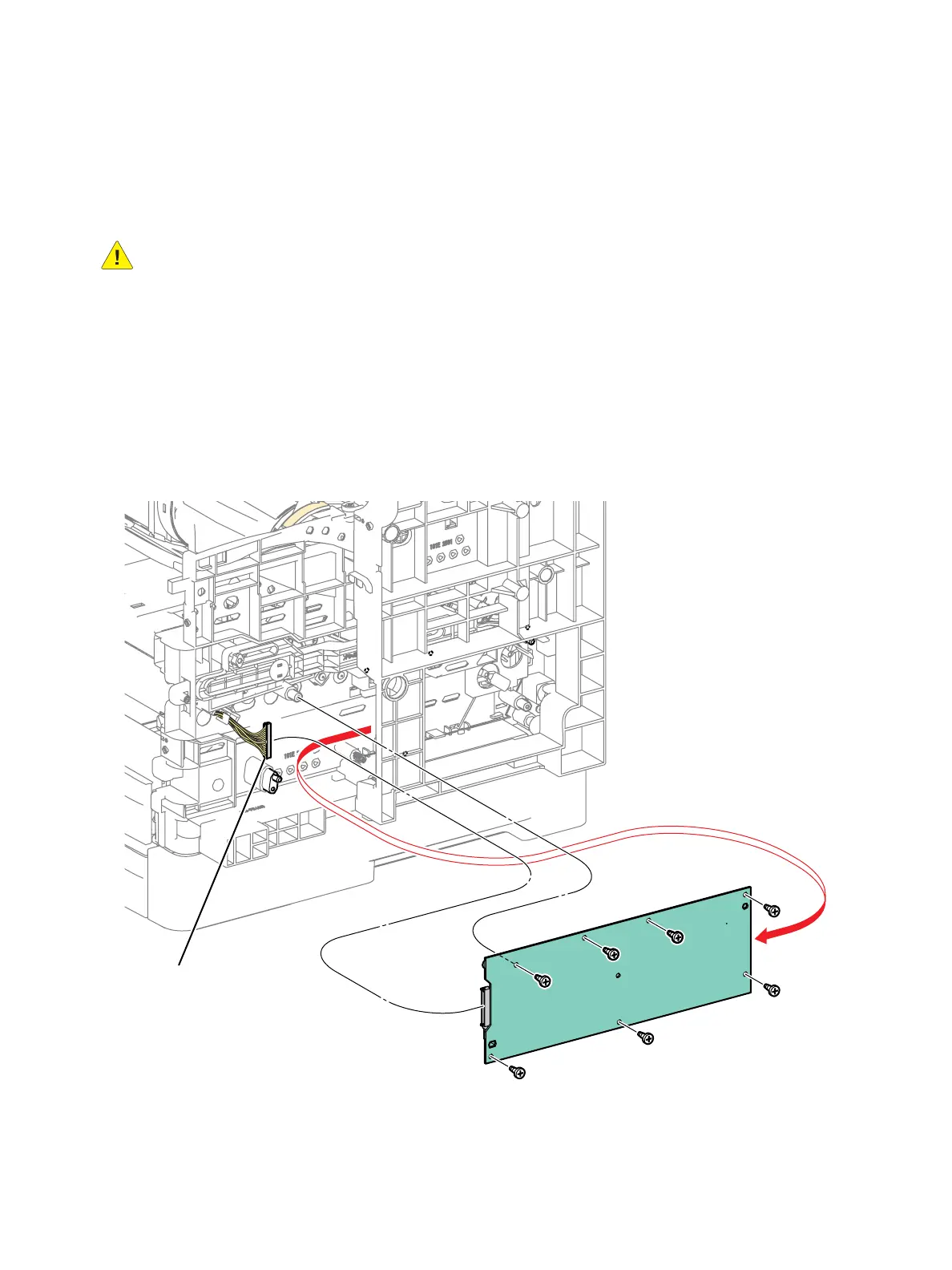

5. Remove the HVPS. (Figure 1)
a. Remove 7 screws (silver, tapping, 8mm),
b. Disconnect P/J261 from the HVPS.
c. Release 2 bosses to remove the PWB.
Figure 1
s3610-180
P/J261
b)
c)
a)
