Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-135
REP 7.14 Take Away Roller Assembly
PL 7.4 Tray 1/Optional Tray 550-Sheet Feeder (4/4)
Removal
1. Remove (REP 7.7 Feed Clutch Assembly).

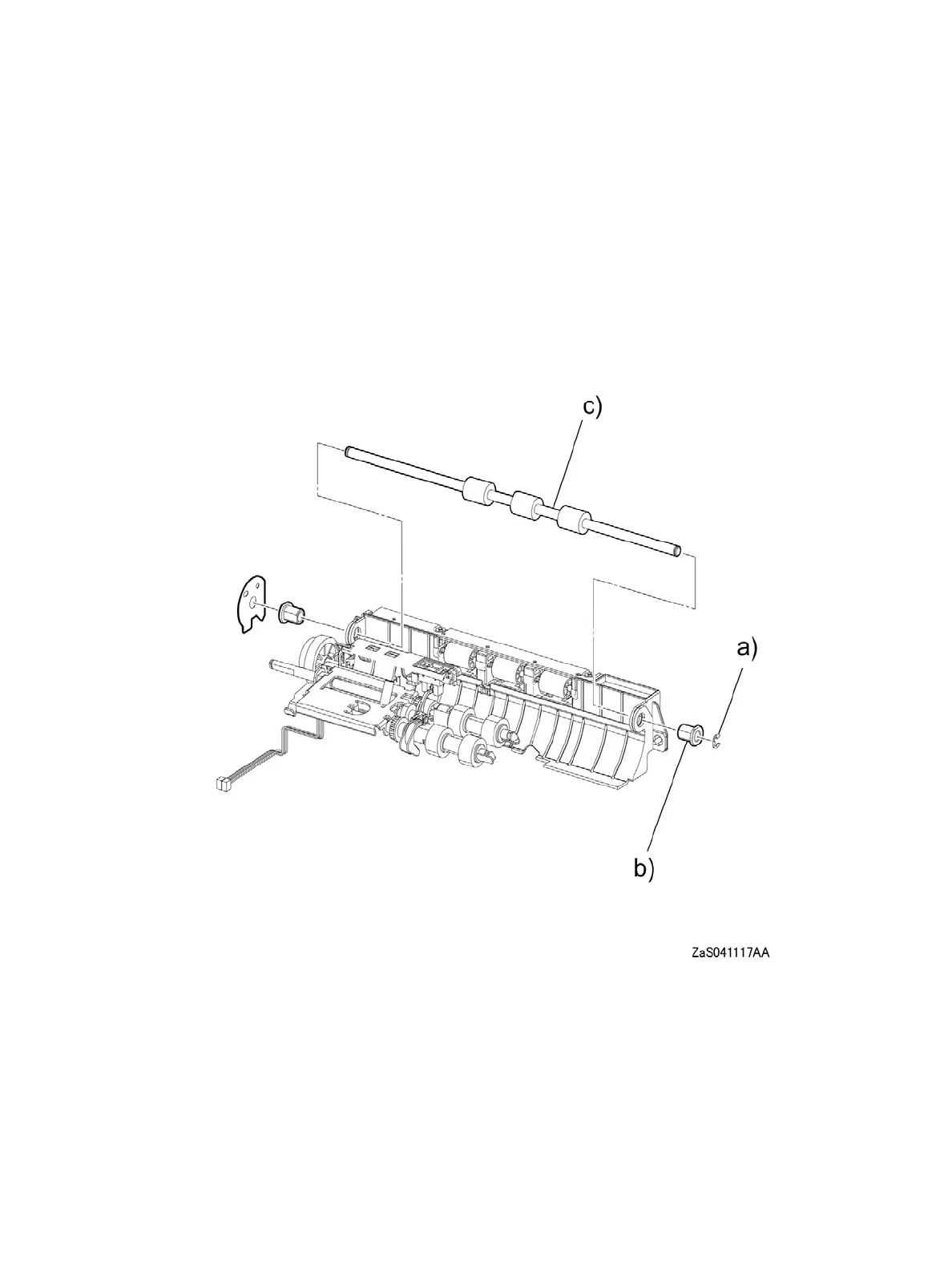

2. Remove the Roller Assembly. (Figure 1)
a. Remove the E-ring.
b. Remove the Bearing.
c. Remove the Roller Assembly by shifting it to the right and then out.
Figure 1
Replacement
1. Replace in reverse order.
