Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-23
REP 1.13 Right Side Cover (3615)
PL 1.2 Covers (3615)
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove the Bypass Tray.
2. Remove Tray 1.
3. Remove (REP 1.2 Front Cover Assembly (3610 / 3615)).
4. Open the Rear Cover, release the stopper strap and hinge clip from the chassis and rest the Rear
Cover Assembly on the work surface.

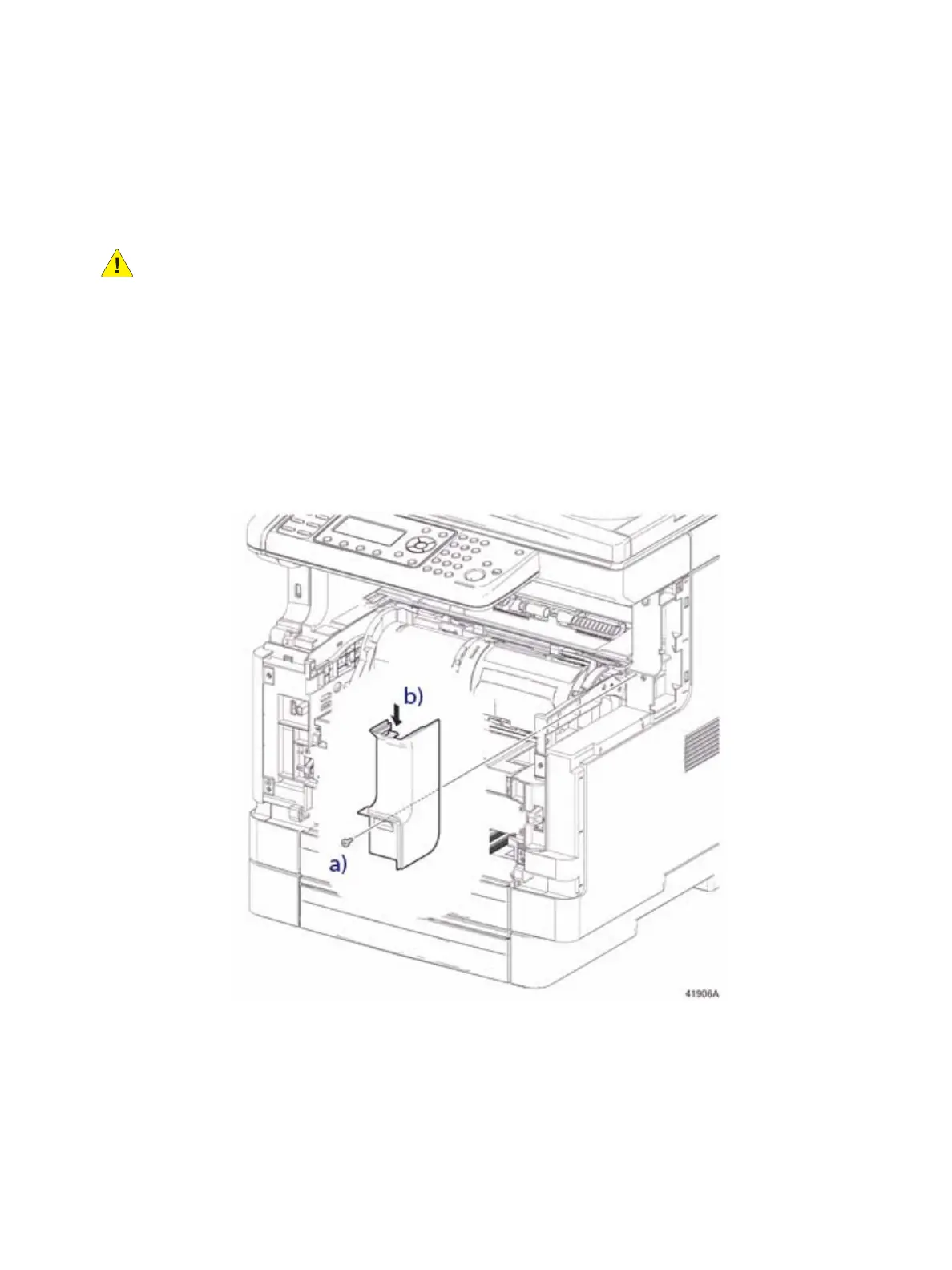

5. Remove the IIT Lower Right Cover. (Figure 1)
a. Remove 1 screw (silver, tapping, 8mm).
b. Release 1 clip from the top of the cover.
Figure 1
