Xerox WorkCentre 3615 - REP 7.12 Retard Roller Assembly

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-133
REP 7.12 Retard Roller Assembly
PL 7.3 Tray 1/Optional Tray 550-Sheet Feeder (3/4)
Removal
1. Remove the Tray.

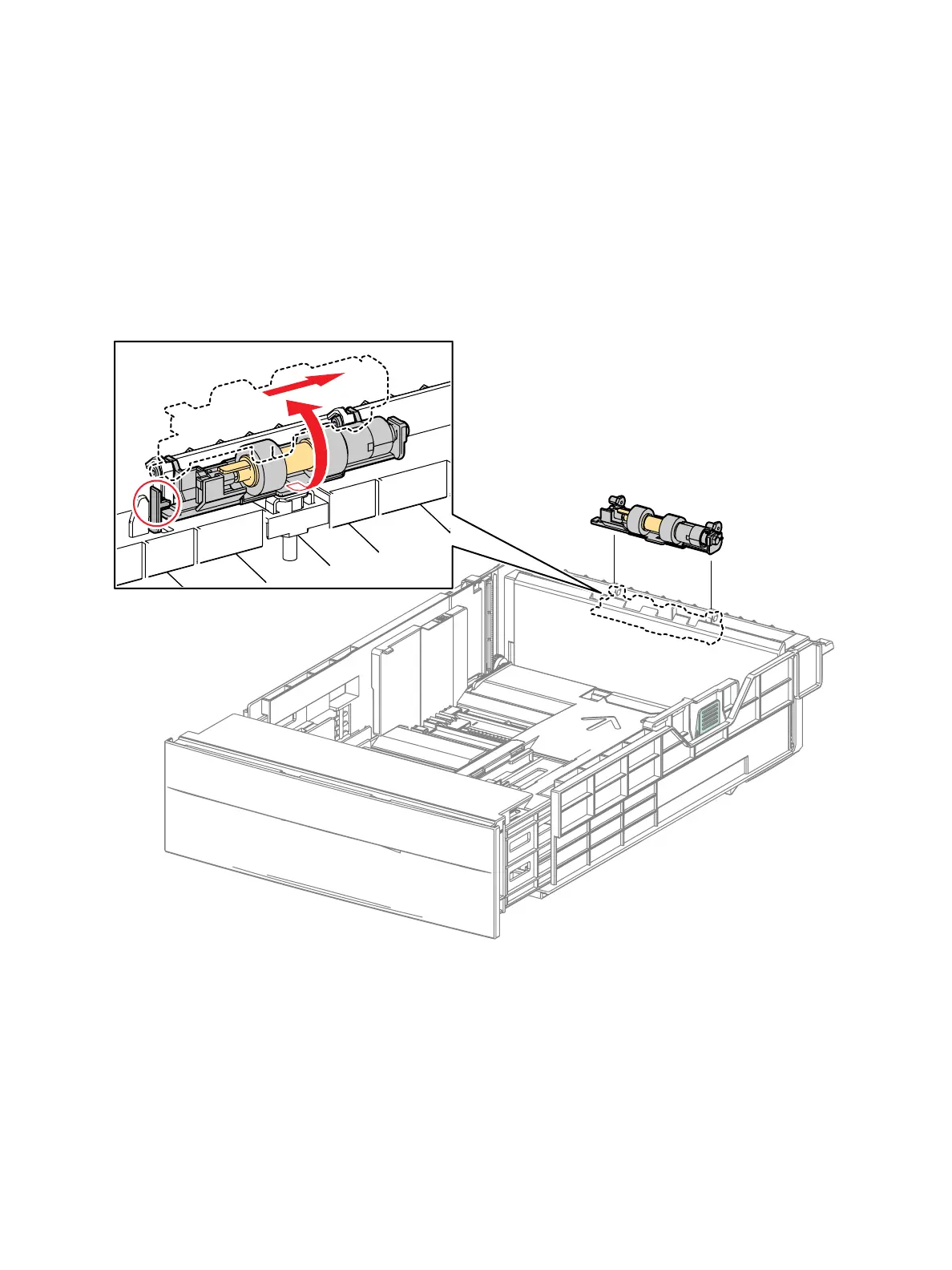

2. Remove the Roll Assembly. (FIgure 1)
a. Release the clip that secures the Retard Roller Holder to the Tray,
b. Rotate the holder to remove the holder from the Tray.
Figure 1
Replacement
1. Replace in reverse order.
s3610-120
b)
a)
