Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-115
REP 6.2 DADF
PL 6.1 IIT Scanner / DADF
Removal
1. Remove (REP 6.1 IIT Assembly).

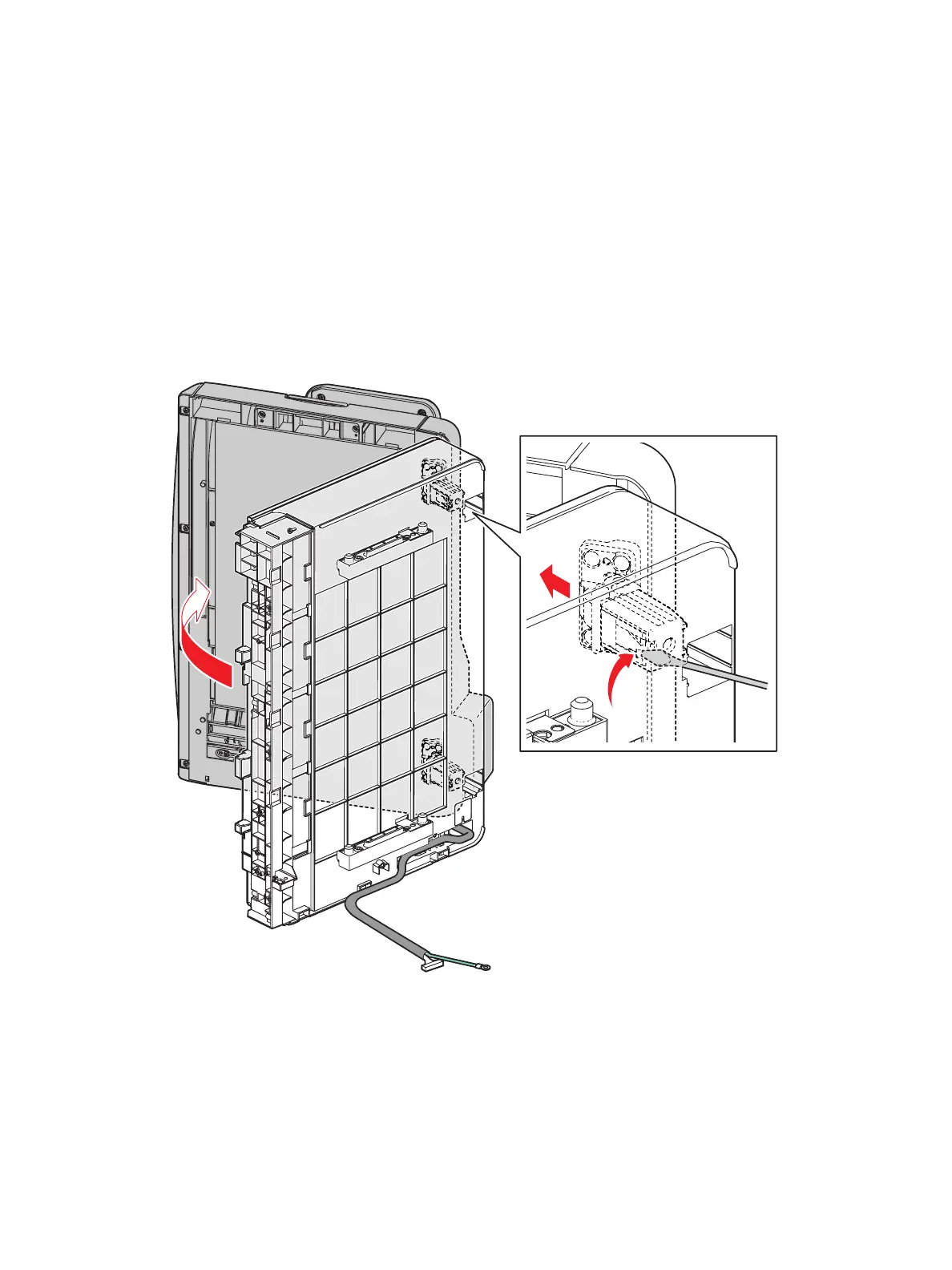

2. Remove the DADF. (Figure 2)
a. Flip the IIT Assembly on its side.
b. While applying a little pressure to separate the DADF from the Scanner, release the pins on
both DADF Hinges.
Figure 1
Replacement
1. Replace in reverse order.
s3610-106

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
