Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-114

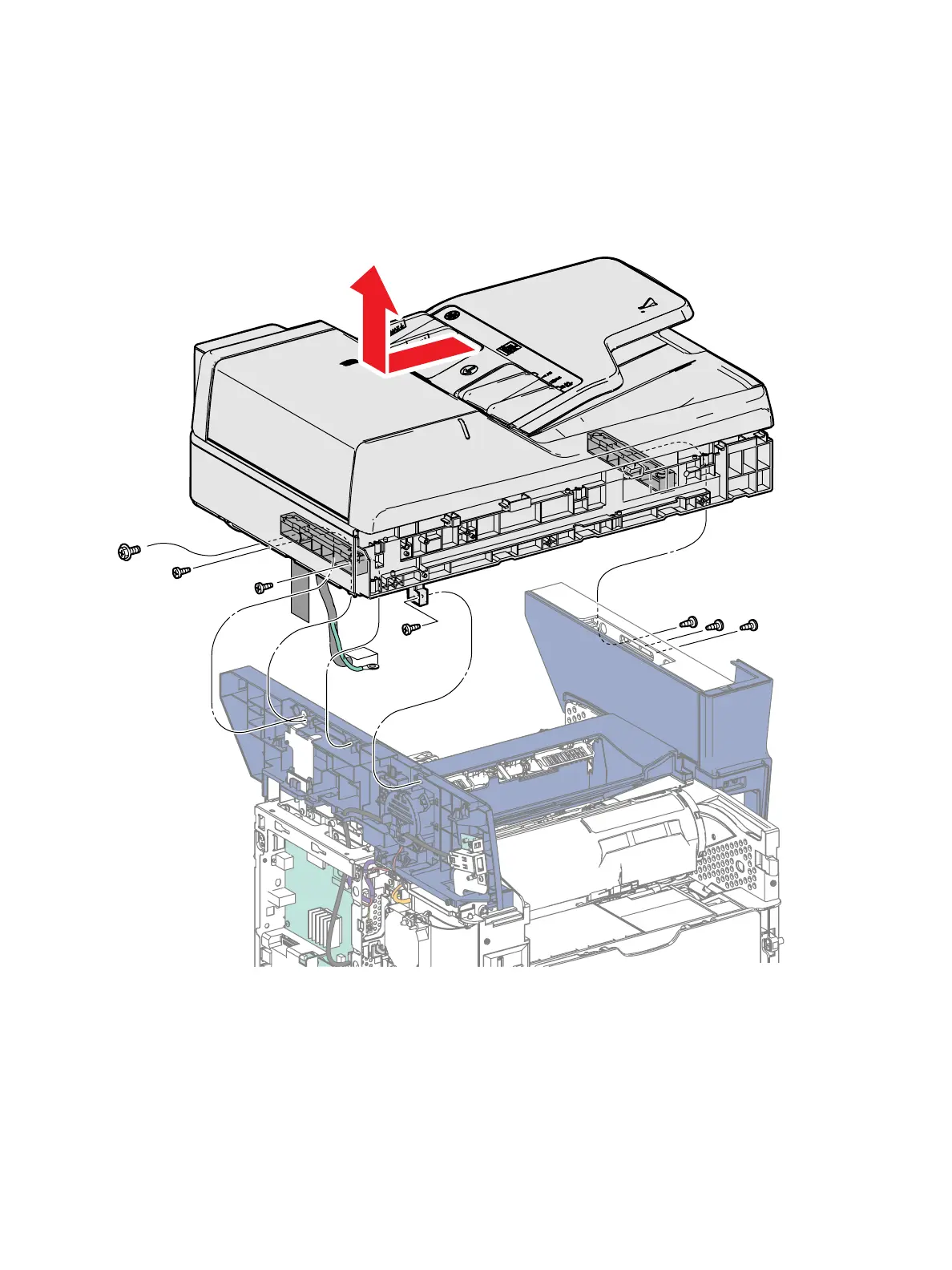

4. Remove the DADF Assembly. (Figure 2)
a. Remove 3 (silver, tapping, 8mm) on each side of the IIT Assembly.
b. Remove 1 screw (silver, hexagon head with flange, stud type, 10mm) on the left side.
c. Slide the assembly to the left to release the studs from the chassis holes, and lift to remove
the IIT/DADF.
Figure 2
Replacement
1. Replace in reverse order.
s3610-105
b)
c)
a)
a)

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
