Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-112
REP 5.9 AC Inlet Harness
PL 5.4 Electrical Connections
Removal
WARNING: Allow the Fusing Assembly to cool before servicing the product.
1. Remove (REP 5.2 ESS PWB Housing).

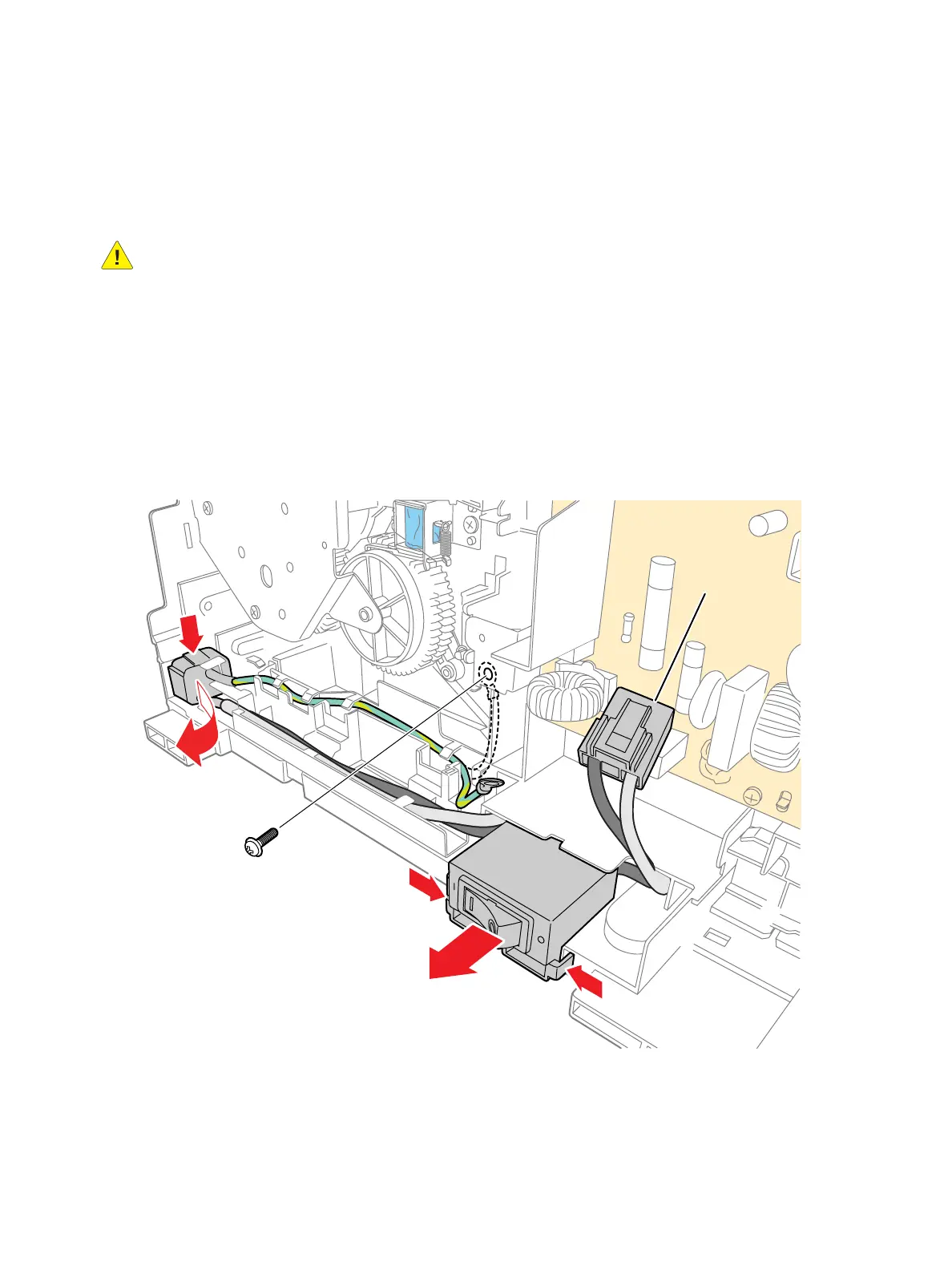

2. Remove the AC Inlet Harness. (Figure 1)
a. Remove 1 screw (silver, M6 with lock washer) that secures the AC ground wire and release the
ground wire from the harness clamps.
b. Disconnect P/J200 from the LVPS.
c. Release 2 clips that secure the power switch to the chassis and release the harness from the
harness guide.
d. Slide out the AC Socket to remove the AC Inlet Harness from the chassis.
Figure 1
Replacement
1. Replace in reverse order.
s3610-169
P/J200
b)
c)
a)
d)
c)

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
