Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-10
REP 1.3 Top Front Cover (3610)
PL 1.1 Covers (3610)
Removal
1. Remove the Bypass Tray.

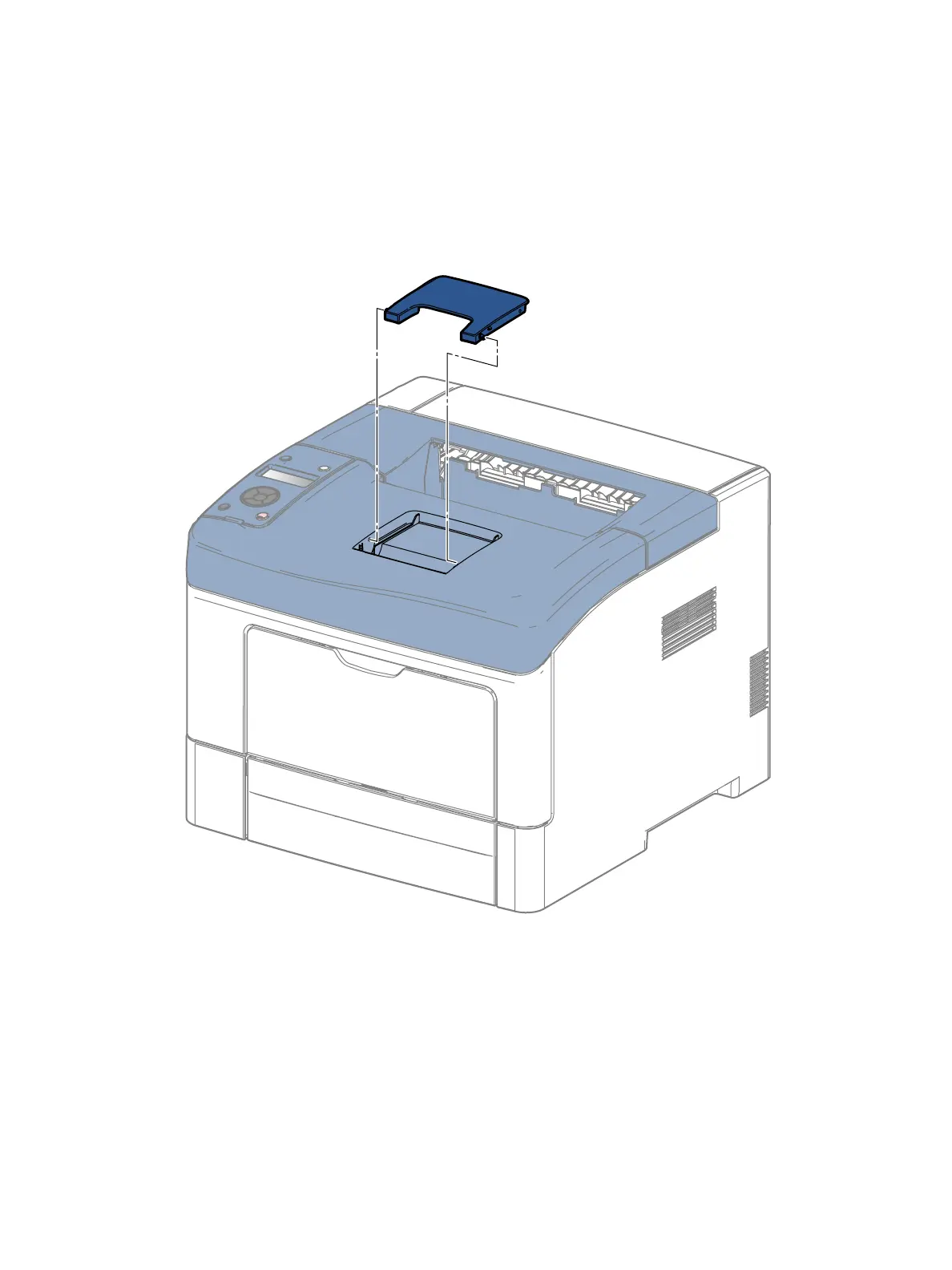

2. Remove the Cover Extension by flexing the extension to release the bosses. (Figure 1)
Figure 1
s3610-006
