Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-9

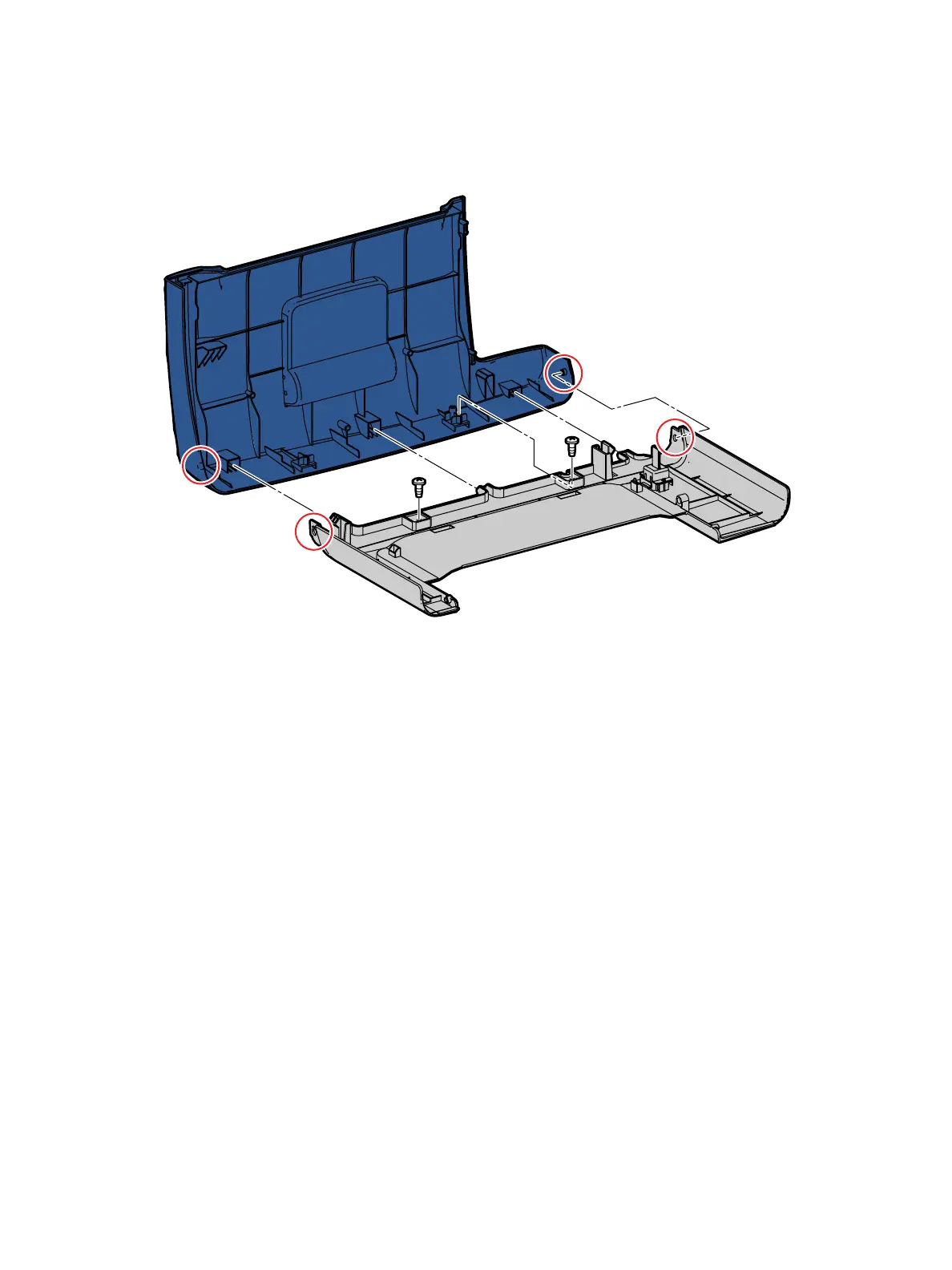

3. If necessary, separate the Front Cover Assembly components; (Figure 3)
a. Remove 2 screws (silver, tapping, 8mm).
b. Release 2 bosses.
Figure 3
Replacement
1. Replace in reverse order.
s3610-003
