Overview
Phaser 3610, WorkCentre 3615 Service Manual1-16

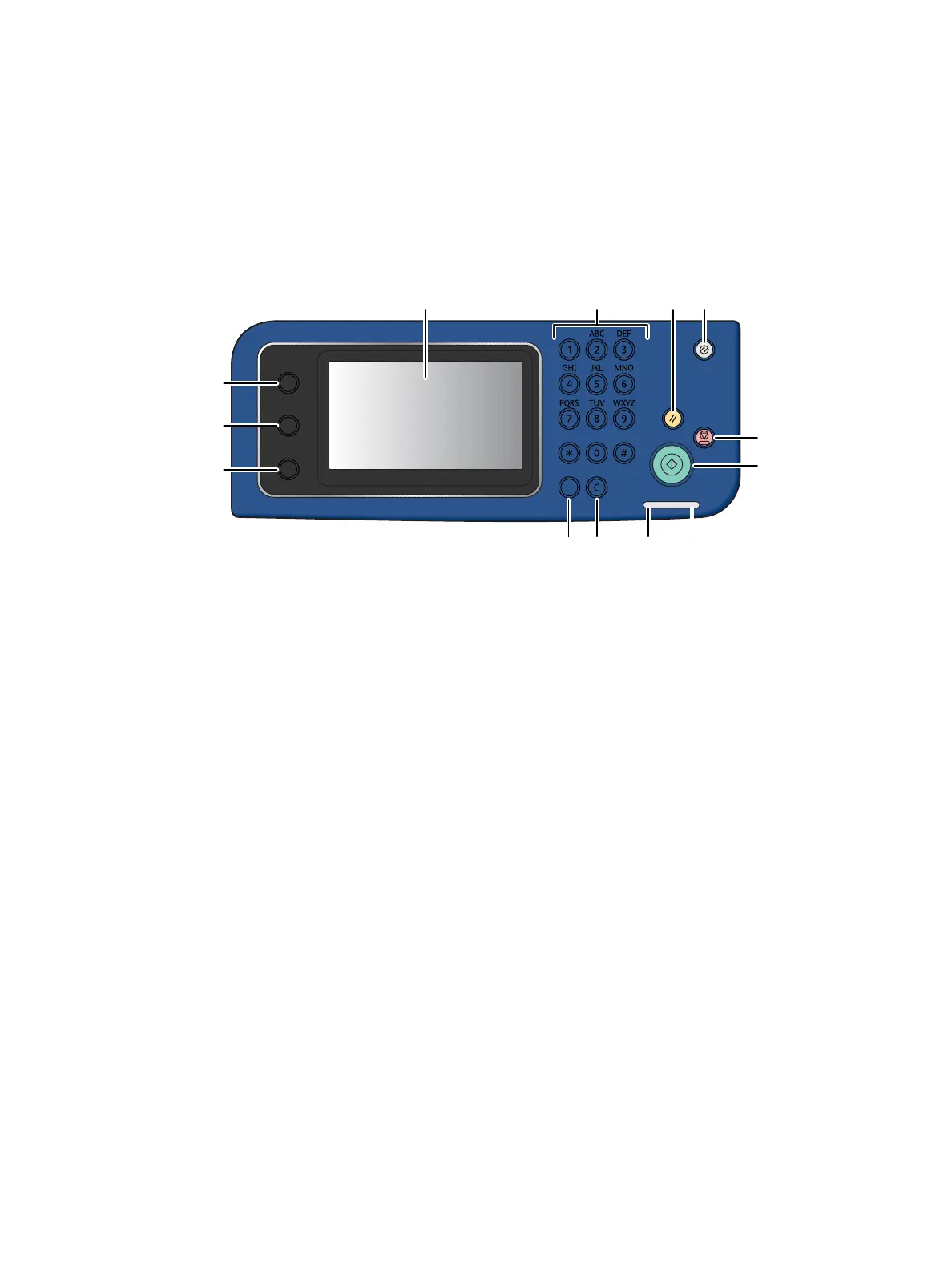

Control Panel Layout (3615)
The Control Panel:
• Displays the current operating status of the printer.
• Provides access to print features, information pages, and setup menus.
• Displays prompt to load paper, replace supplies, and clear jams.
• Displays errors and warnings.
1. Machine Status button switches the display to the System menus.
2. Job Status displays the active jobs, Secure Print Jobs, and Secure Fax Jobs available in Job Status on the
touch screen.
3. Services Home button invokes the Services home menu for access to printer features, such as copy,
scan, and fax.
4. Touch Scree n displays information and provides access to printer functions.
5. Alphanumeric Keypad enters alphanumeric information.
6. Clear All clears previous and changed settings for the current selection.
7. Power Saver enters and exits low-power mode.
8. Stop cancels the current job.
9. Start starts the selected copy, scan, fax, or Print From job, such as Print from USB.
10. Error Indicator
– Lights red to indicate an error condition or warning that requires your attention.
– Blinks red when an error occurs that requires technical support.
11. Data Indicator
– Blinks green when the printer is sending or receiving a fax.
– Lights green when there is at least one saved job, secure print job, or secure fax job on the
device.
12. Clear clears a number field or clears the last number of a numeric entry.
13. Redial / Pause recalls the last fax number used or inserts pauses in fax numbers.
s3610-222
4 6 7
10111213
8
9
1
2
3
5
