Xerox WorkCentre 3615 Service Manual

Image Quality
Phaser 3610, WorkCentre 3615 Service Manual 3-27
IQ-10 Light Induced Fatigue

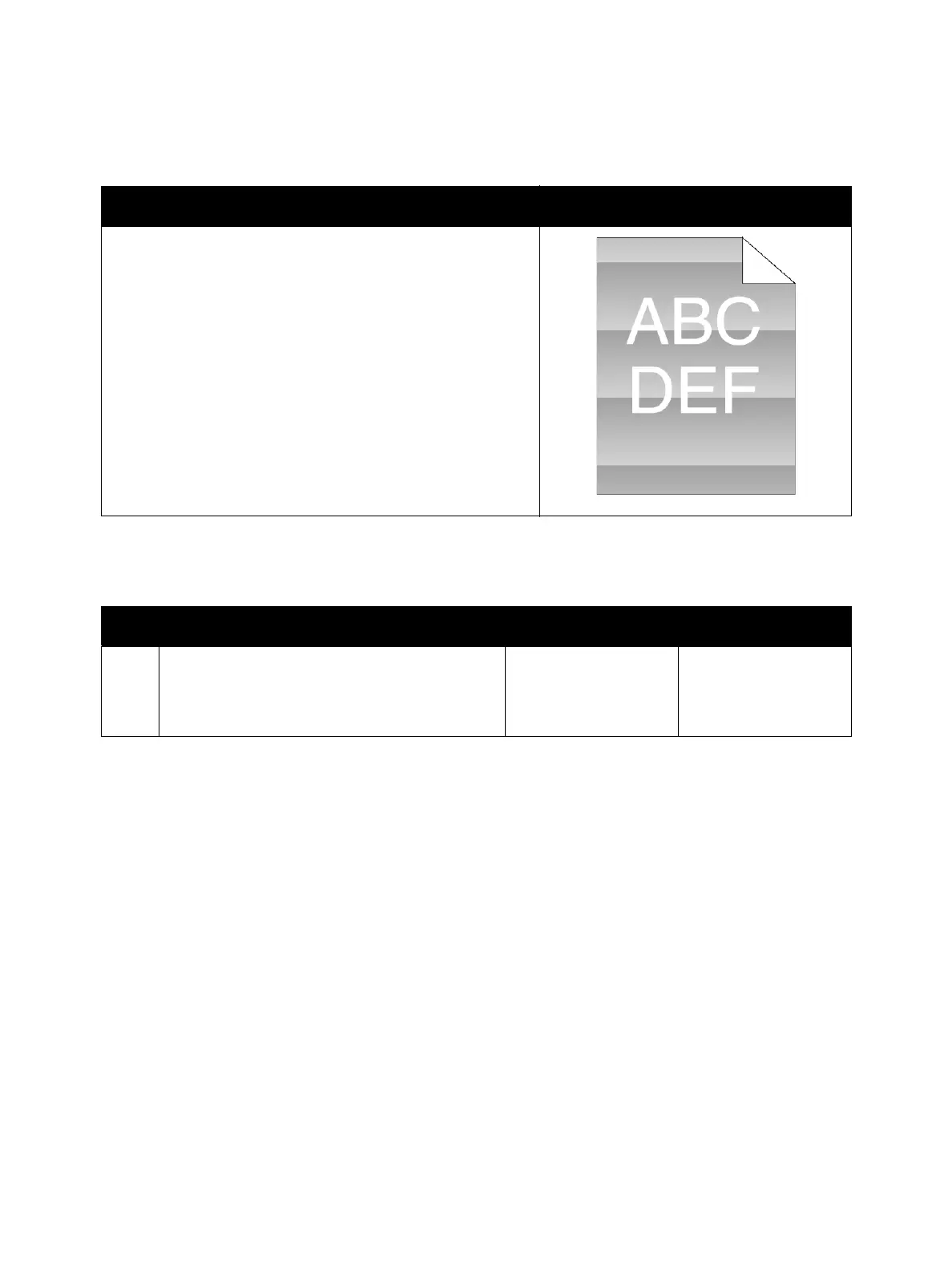

Troubleshooting Reference
Applicable Parts Example Print
• Drum Cartridge, PL 3.1
Troubleshooting Procedure
Step Actions and Questions Yes No
1
Print the Pitch Chart. (Machine Status / Tools /
Admin Settings / Service Tools / Chart)
Does the pattern on the output match with that
on the Pitch Configuration Chart?
Replace the Drum
Cartridge.
Troubleshooting com-
plete.

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
