Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-61
REP 2.13 Full Stack Sensor
PL 2.5 Exit Chute
Removal
1. Remove (REP 2.11 Exit Chute Assembly).

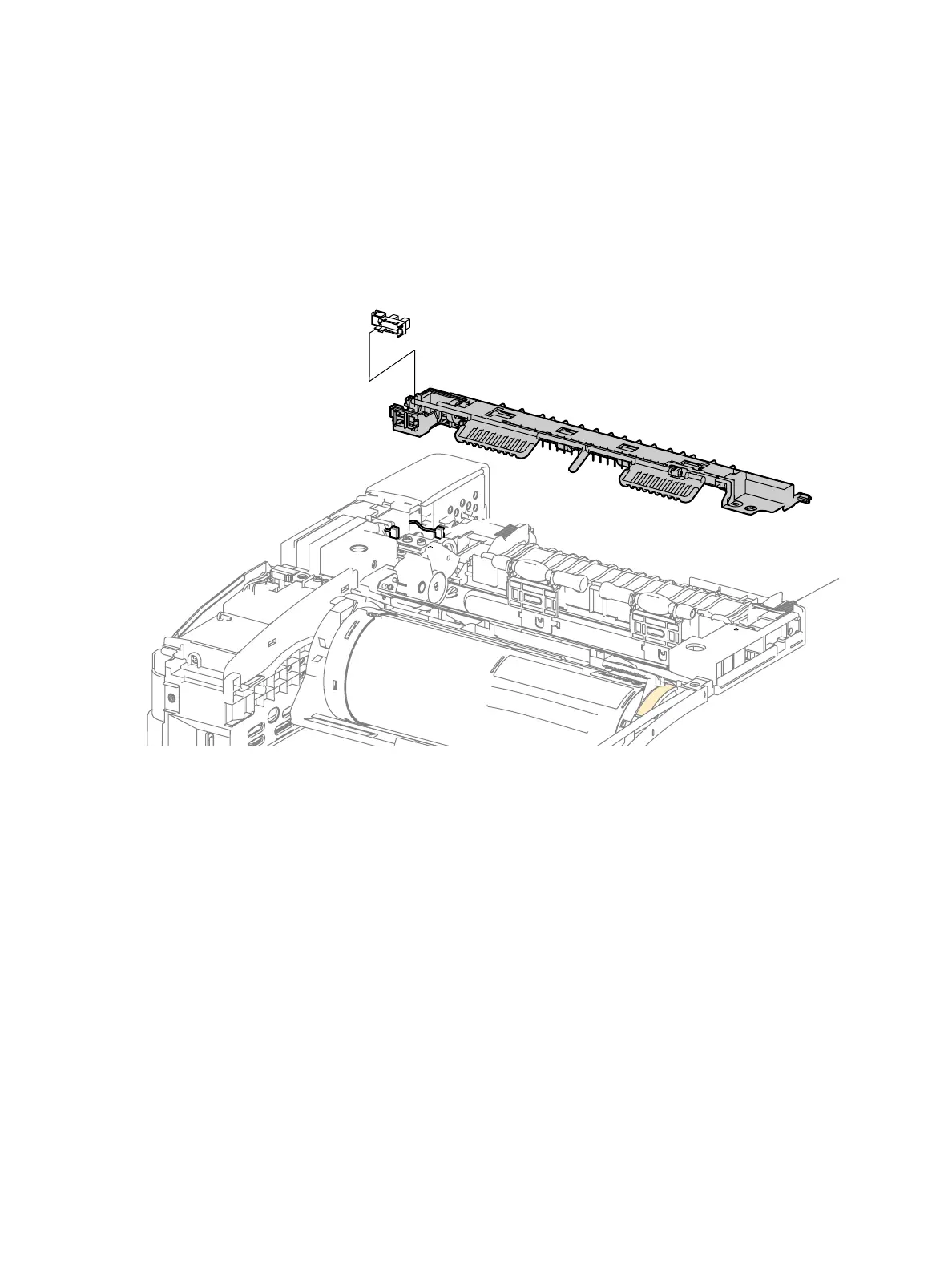

2. Release the 4 clips and remove the Full Stack Sensor. (Figure 1)
Figure 1
Replacement
1. Replace in reverse order.
s3610-032
To Next Page
