Xerox WorkCentre 3615 Service Manual

Image Quality
Phaser 3610, WorkCentre 3615 Service Manual 3-43

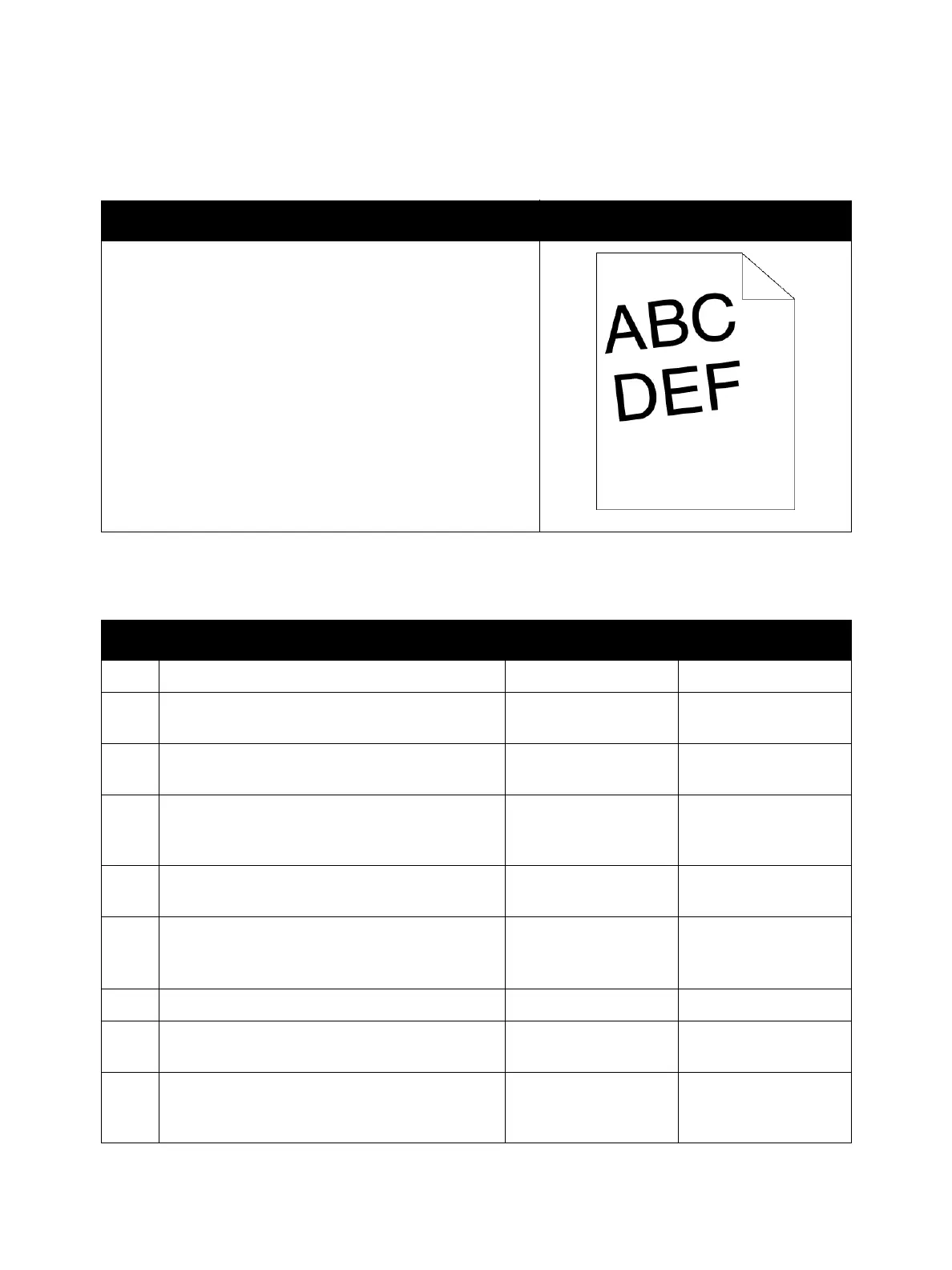

IQ-19 Skewed Image
Note: for the Phaser 3610, begin the procedure at step 7.
Troubleshooting Reference
Applicable Parts Example Print
• IIT Assembly, PL 6.1
• DADF Assembly, PL 6.1
• DADF Pick Up Module, PL 6.1
• Rubber Roll Assembly, PL 2.2
• Regi Pinch Roll Assembly, PL 2.2
• Regi Pinch Roll, PL 2.2
• Transfer Roller Assembly, PL 3.4
•Fusing Assembly, PL 3.5
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Does the error occur only during copying? Go to step 2. Go to step 7.
2
Does the error occur when feeding the original at
the DADF?
Go to step 4. Go to step 3.
3
Is the original positioned on the Platen Glass cor-
rectly?
Replace (REP 6.1 IIT
Assembly).
Reseat the original.
4 Does the original meet the DADF spec? Go to step 5.
Use the platen mode
or change the paper
type.
5
Reseat the DADF Guides.
Does the error still occur when copying?
Go to step 6.
Troubleshooting
complete.
6
Are there any damages or foreign substances on
the DADF Pick Up Module?
Remove the foreign
substances or replace
(
REP 5.6 MCU PWB).
Replace (REP 6.2
DADF).
7 Is the skewed paper fed from the MSI? Go to step 8. Go to step 9.
8
Reset the MSI side guides.
Is the image printed correctly?
Troubleshooting
complete.
Go to step 9.
9
Are there any foreign substances on the paper
path?
Remove the foreign
substances, then go to
step 10.
Go to step 11.

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
