Xerox WorkCentre 3615 Service Manual

Image Quality
Phaser 3610, WorkCentre 3615 Service Manual 3-41

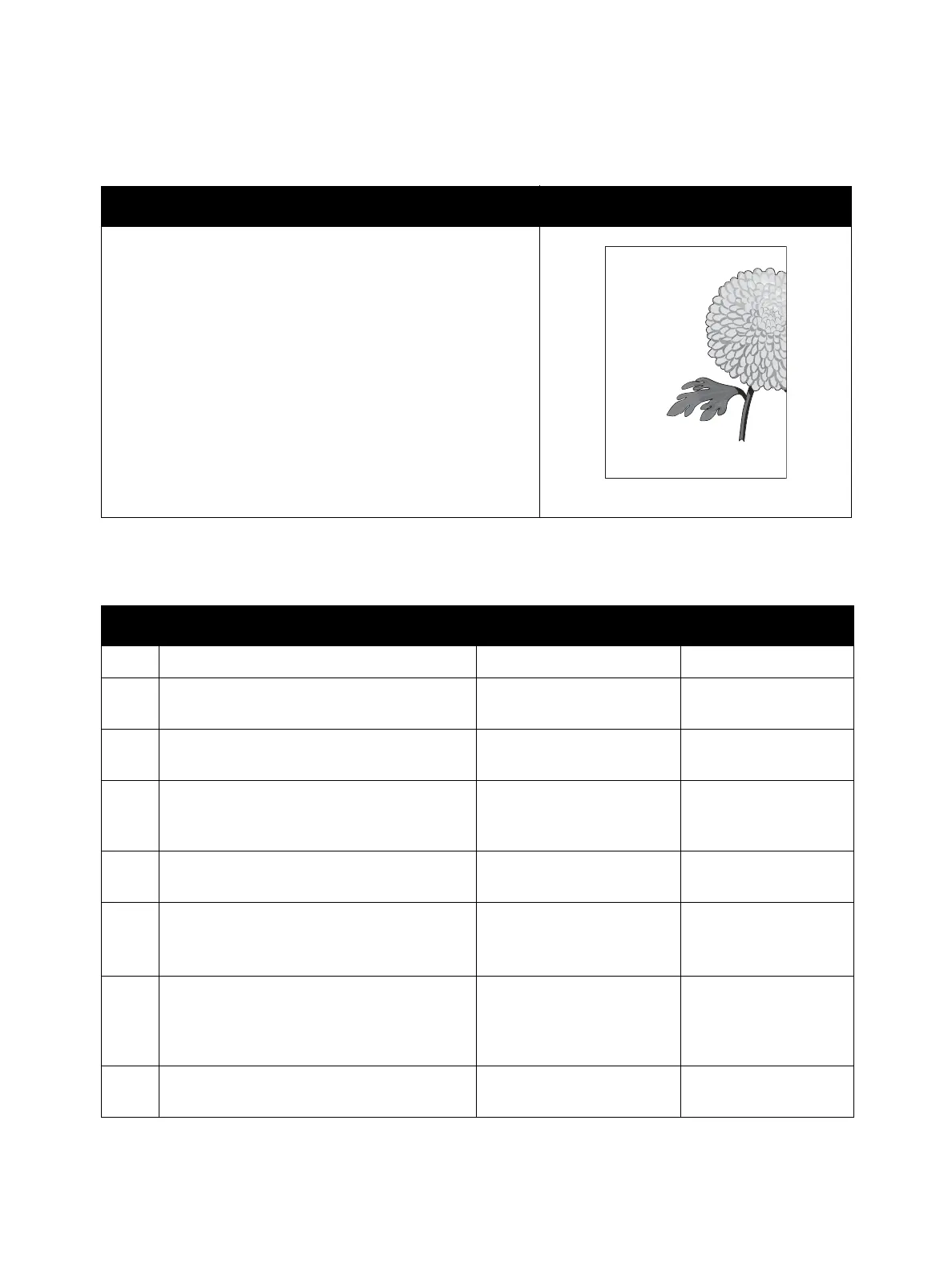

IQ-18 Incorrect Margins
Note: for the Phaser 3610, begin the procedure at step 7.
Troubleshooting Reference
Applicable Parts Example Print
• IIT Assembly, PL 6.1
• DADF Assembly, PL 6.1
• DADF Pick Up Module, PL 6.1
• Drum Cartridge, PL 3.1
• Transfer Roller Assembly, PL 3.4
• ROS Assembly, PL 3.2
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Does the error occur only during copying? Go to step 2. Go to step 7.
2
Does the error occur when feeding the origi-
nal at the DADF?
Go to step 4. Go to step 3.
3
Is the original positioned on the Platen Glass
correctly?
Replace (REP 6.1 IIT
Assembly).
Reseat the original.
4 Does the original meet DADF specs? Go to step 5.
Use the platen mode
or change the paper
type.
5
Reseat the DADF Guides.
Does the error still occur when copying?
Go to step 6.
Troubleshooting
complete.
6
Are there any damages or foreign sub-
stances on the DADF Pick Up Module?
Remove the foreign sub-
stances or replace (
REP 5.6
MCU PWB
).
Replace (REP 6.2
DADF).
7
Print the Test Print Gradation ESS in diagno-
sis. (Service-Mode / Printer Diag / Test
Print)
Is the image printed correctly?
Check the printing data
which generated the prob-
lem.
Go to step 8.
8
Replace the Drum Cartridge.
Is the image printed correctly?
Troubleshooting
complete.
Go to step 9.
