Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-11
3. Remove (REP 1.2 Front Cover Assembly (3610 / 3615)).

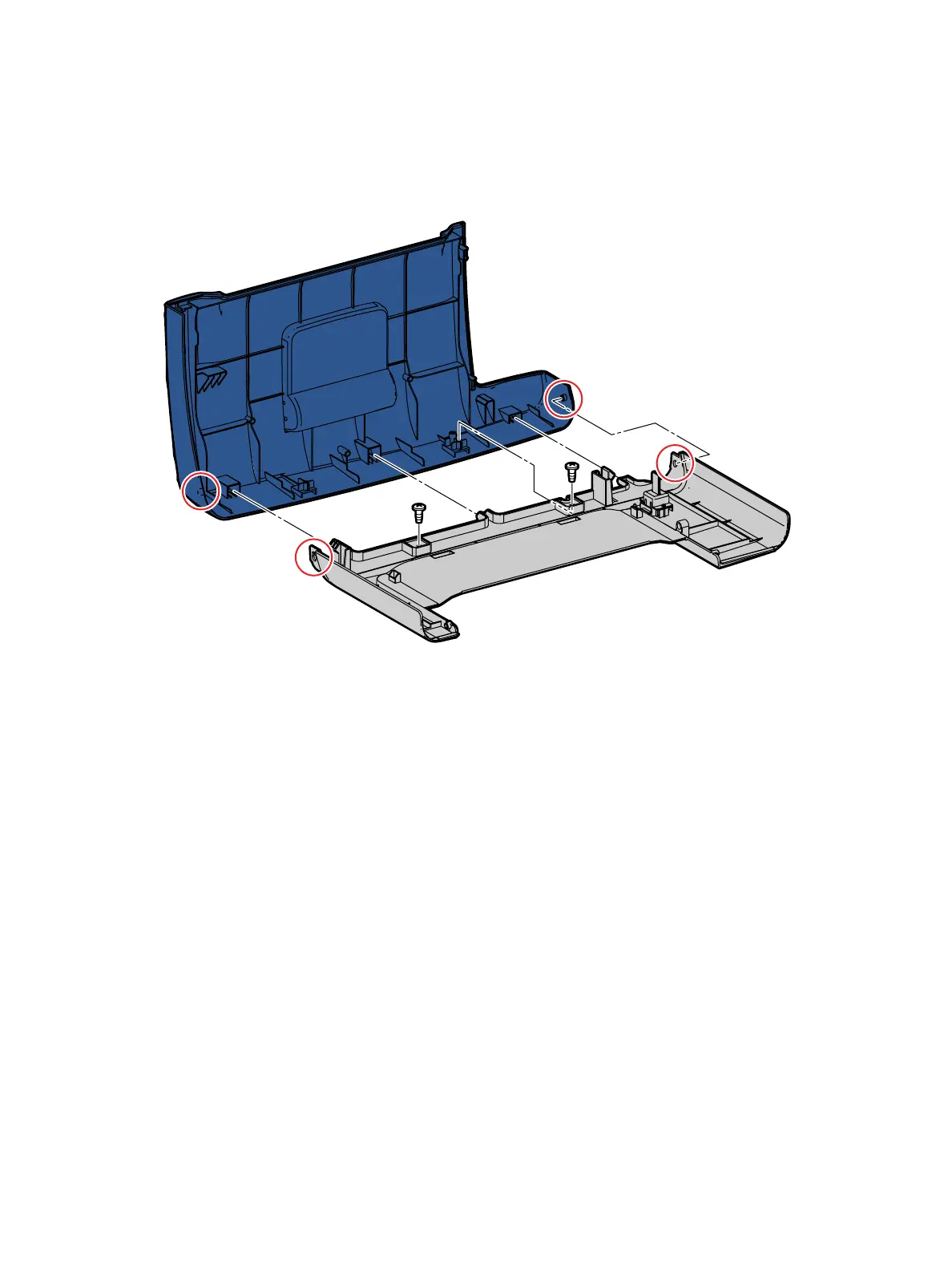

4. To separate the Front Cover Assembly components; (Figure 2)
a. Remove 2 screws (silver, tapping, 8mm).
b. Release 2 bosses.
Figure 2
Replacement
1. Replace in reverse order.
2. Install the Cover Extension on the replacement Top Front Cover.
s3610-003
