Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-63
4. Remove (REP 5.2 ESS PWB Housing).

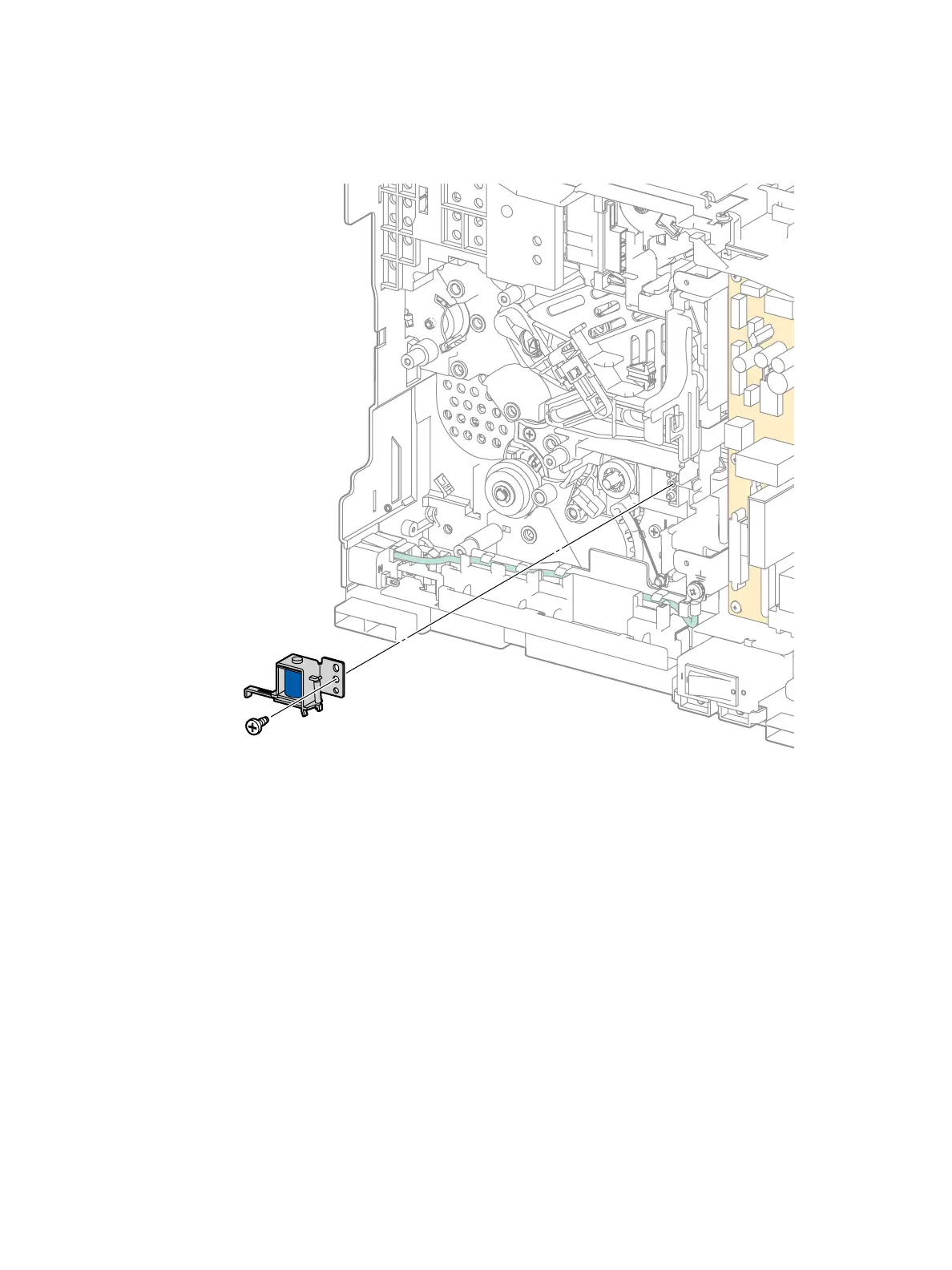

5. Remove the MSI Feed Solenoid. Gently pull the wire harness out through the frame. (Figure 2)
Figure 2
Replacement
1. Replace in reverse order.
s3610-015a
