Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-5

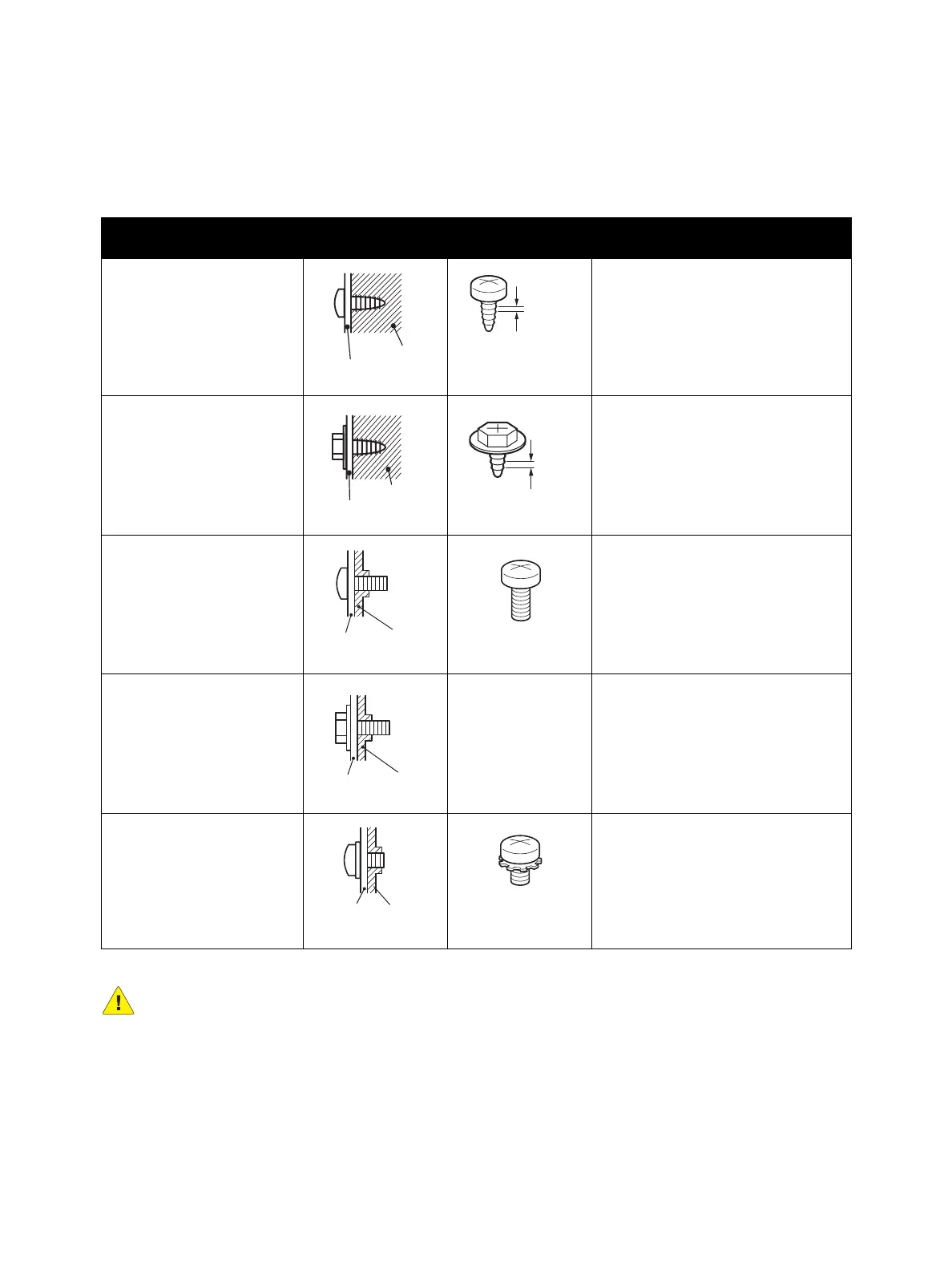

Fastener Types
The following table lists the types of screws used to assemble the printer. The procedures provide
dimensions for screws being removed.
CAUTION: Use care when installing self-tapping screws in plastic. To properly start the screw in
plastic, turn the screw counter-clockwise until you feel the screw engage the threads, then tighten
as usual. Improperly aligning or over tightening the screw can result in damage to previously
tapped threads. Always use the correct type and size screw. Using the wrong screw can damage
tapped holes. Do not use excessive force to remove or install either a screw or a printer part.
Type Application Shape Characteristics
Self-tapping, plastic 1. Silver colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Self-tapping, plastic, with
flange
1. Black colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw has a flange.
4. Screw tip is thin.
Sheet Metal, silver 1. Silver colored.
2. Diameter is uniform.
Self-tapping, hex-head,
with flange
1. Silver colored.
2. Screw has a flange.
3. Diameter is uniform.
Sheet Metal, silver with lock
washer
1. Silver colored.
2. Includes a toothed washer.
3. Diameter is uniform.
4. Used for grounding terminals.
Parts etc.
Plastic
Coarse
Parts etc.
Plastic
Coarse
Parts etc.
Sheet
M
eta
l
Parts etc.
Sheet
Metal
Parts etc.
Sheet
Metal

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
