Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-14
3. If installing a new Rear Cover Assembly, transfer the Transfer Roller Assembly from the old
Assembly.
Replacement
1. Re-install the cover assembly. (Figure 2)
a. Connect P/J 2401
b. Install the boss on the right side of the cover, and make sure the ground spring engages the
hook on the chassis.

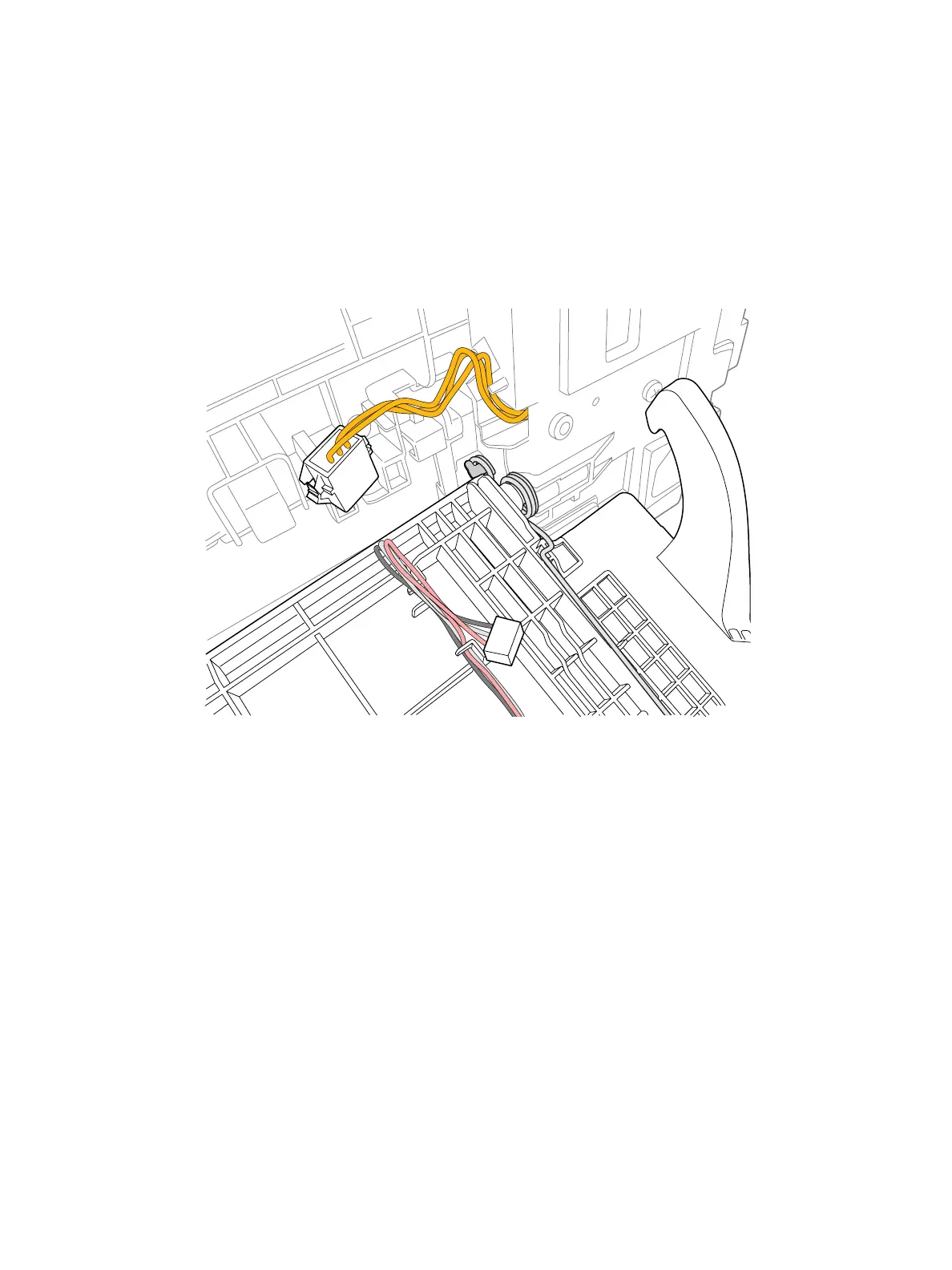

Figure 2
2. Re-engage the left side boss.
3. Replace in reverse order.
s3610-160
a)
b)
