Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-45
Replacement

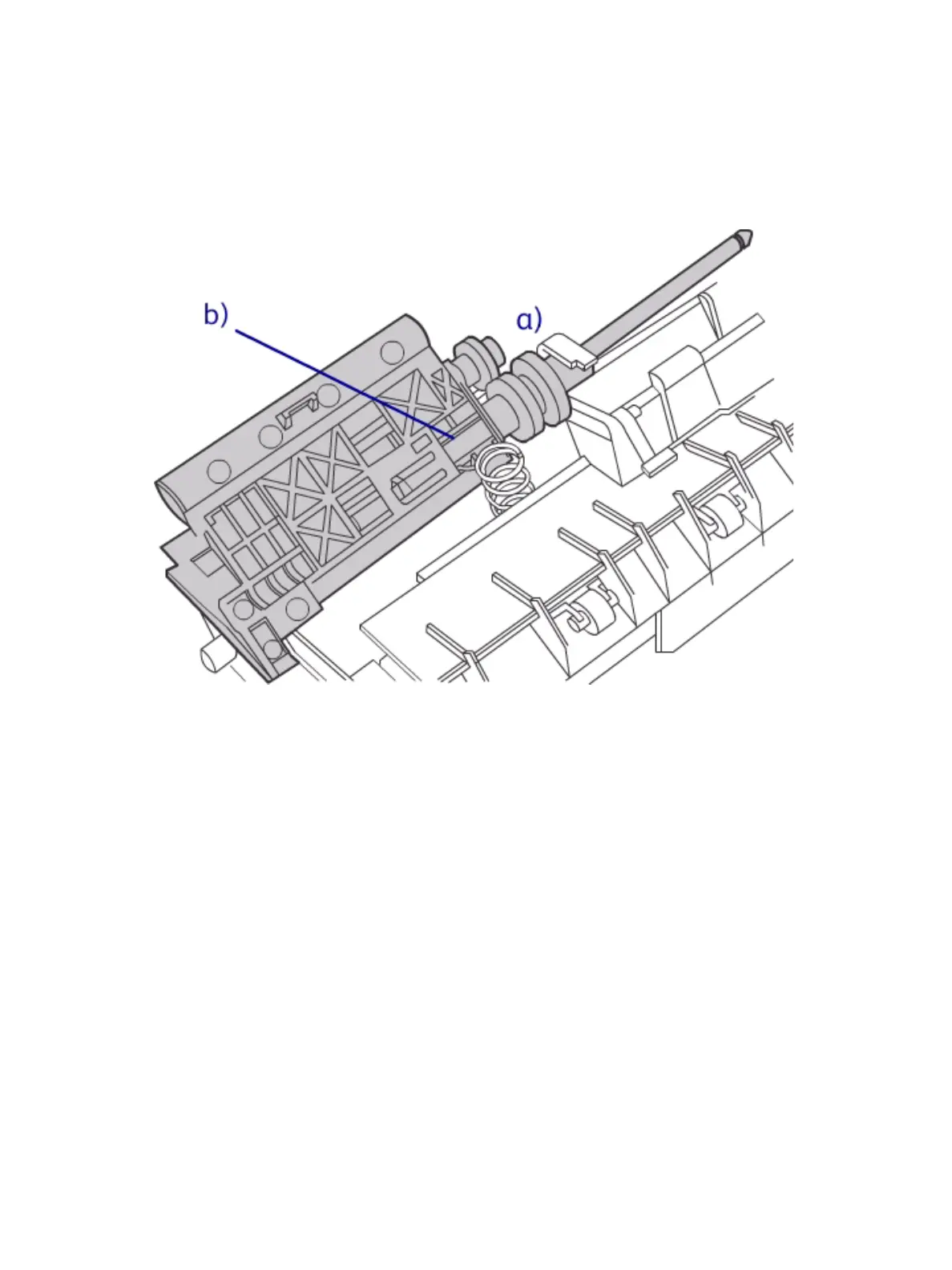

1. Installing the Feeder Assembly. (Figure 3)
a. position the Feeder Assembly under the actuator
b. Make sure the spring is seated correctly in the chassis cavity.
Figure 3
2. Insert the Nudger Bearing to secure the Feeder Assembly to the transport.
3. Replace the shaft with the Feed Gear on it, and then the One Way Clutch.
4. Position the notch on the Feed Clutch onto the tab on the frame, and secure the clutch onto the
shaft using the e-ring.
5. Check the assembly for the correct spring tension.
6. Replace in reverse order.

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
