Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-44
3. Remove the Feeder Assembly. (Figure 2)
a. Remove the E-ring that secures the Feed Clutch to the Transport Assembly,
b. Remove, but do not disconnect the clutch, and remove the bearing.
c. Remove the One-Way Clutch.
d. Remove the the Feed Shaft with the Feed Gear.
e. Remove the Nudger Bearing that secures the Feeder Assembly to the Transport.
f. Remove the Feeder Assembly.

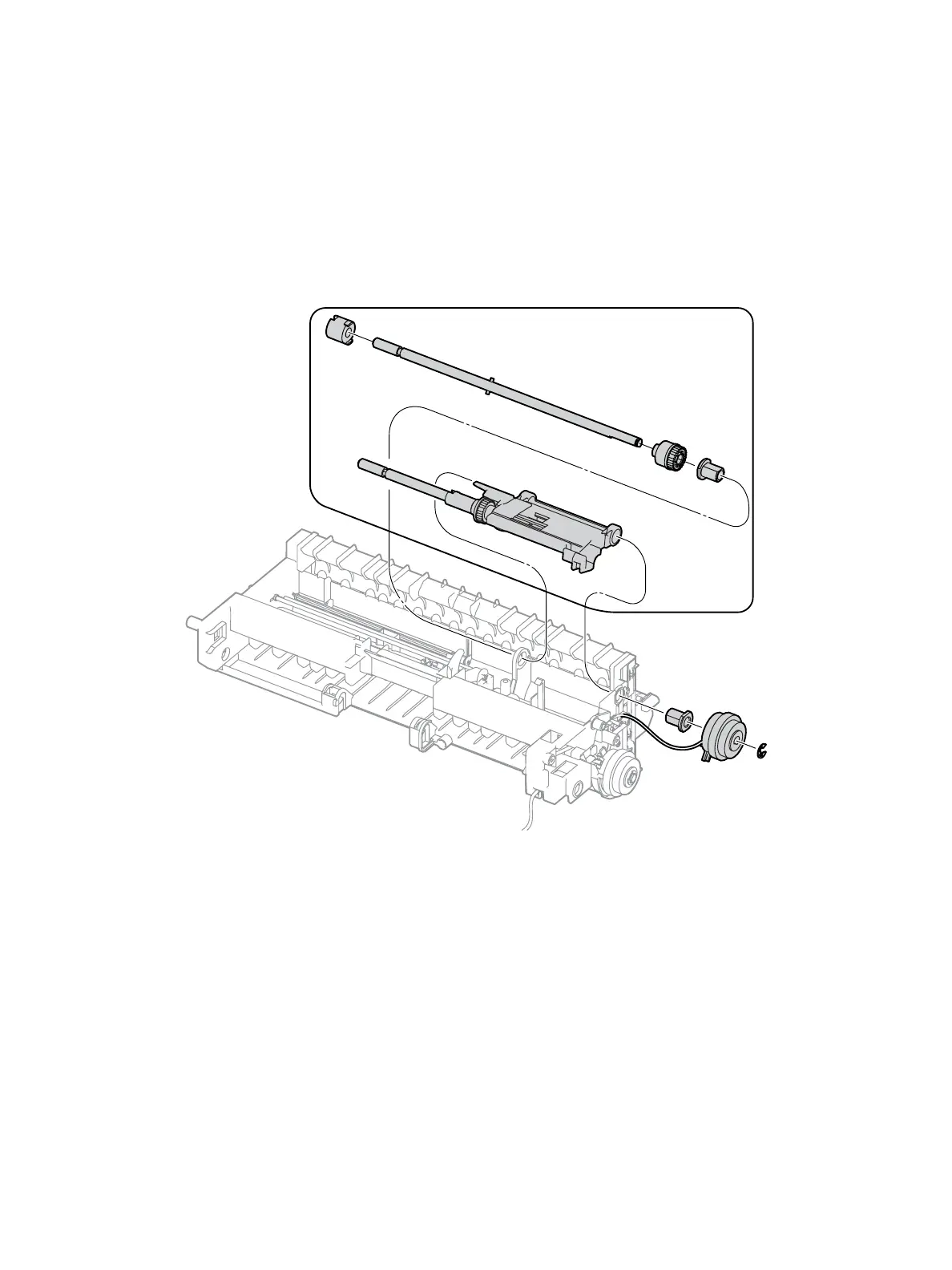

Figure 2
s3610-026
b)
c)
a)
d)
e)
