Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-89

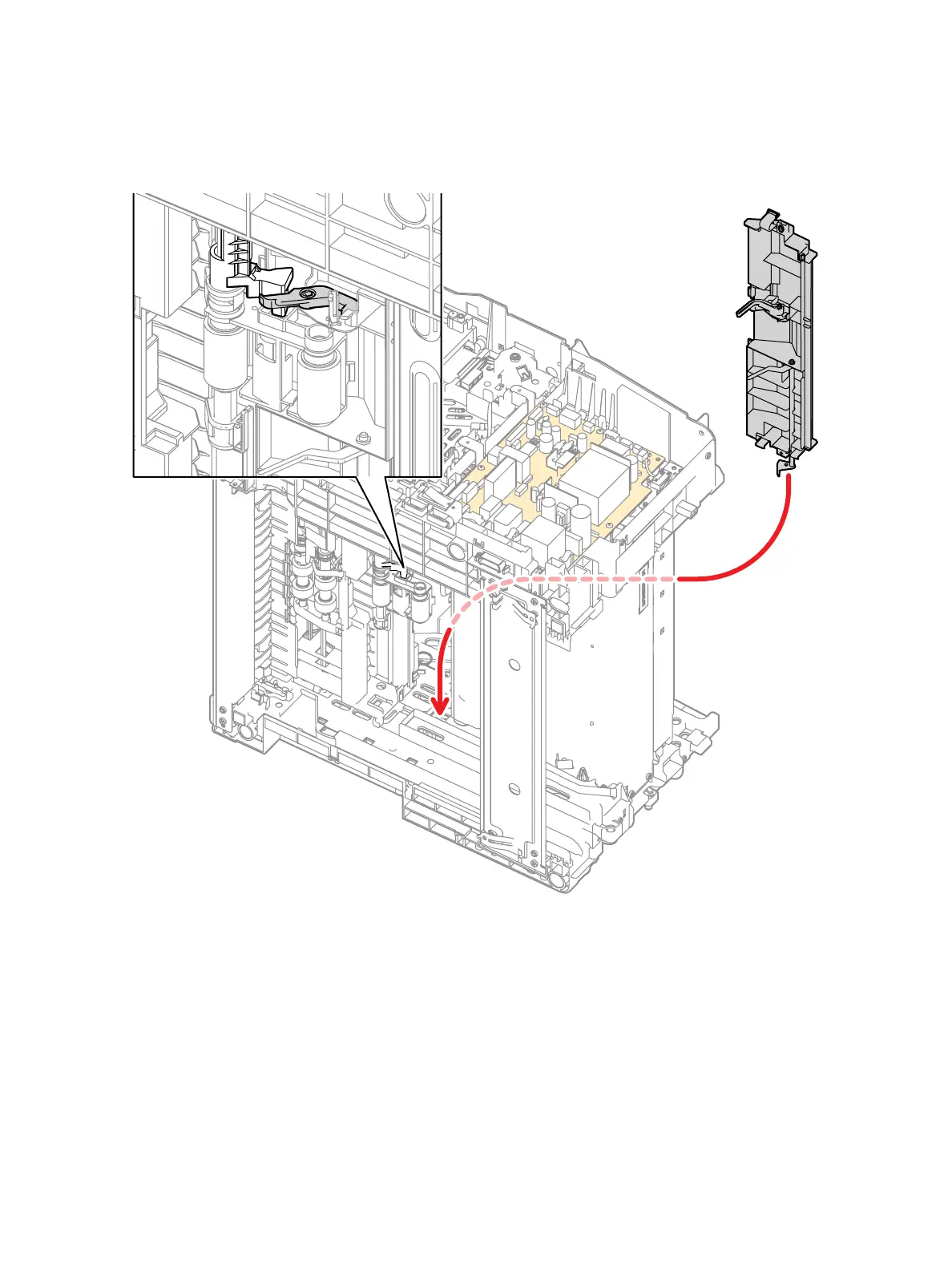

3. When installing the Top Frame Assembly, rest the printer on its right side. Align the Bypass Tray No
Paper Sensor Actuator coupled with the Top Frame Assembly so it fits into the hole on the printer
and the Lock MSI In connects with the Pick Up Holder Assembly. (Figure 6)
Figure 6
4. Replace in reverse order.
s3610-025
