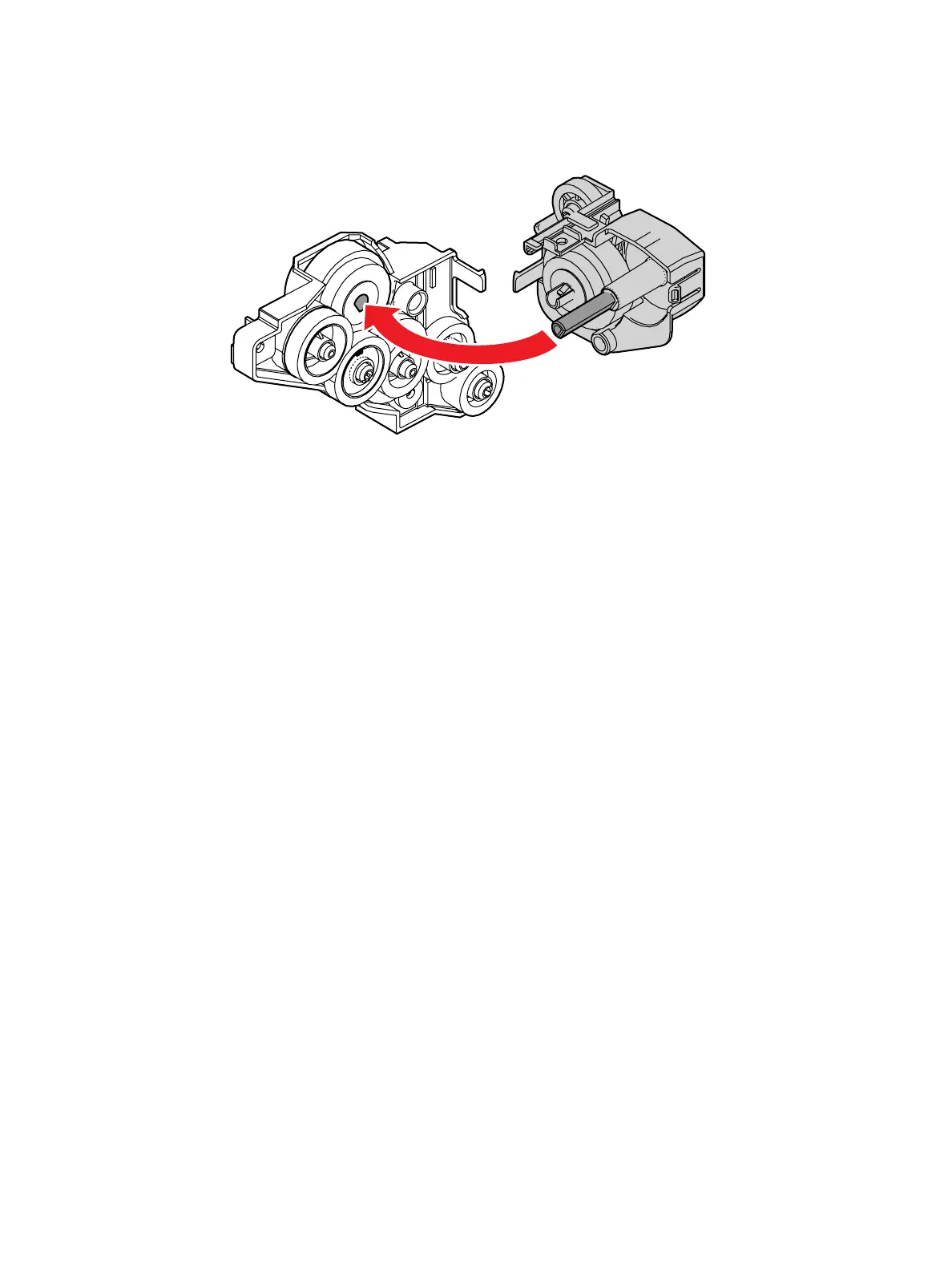

2. When installing the Exit Invert Drive Assembly, fit the D-shaped shaft of the invert clutch into the
D-shaped hole of the exit clutch. (Figure 5)
Figure 5
s3610-053
