Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-31
Replacement
1. Install the Duplex Chute Assembly onto the rear Cover Assembly.
2. Secure both grounding springs with the screw. (Figure 2)

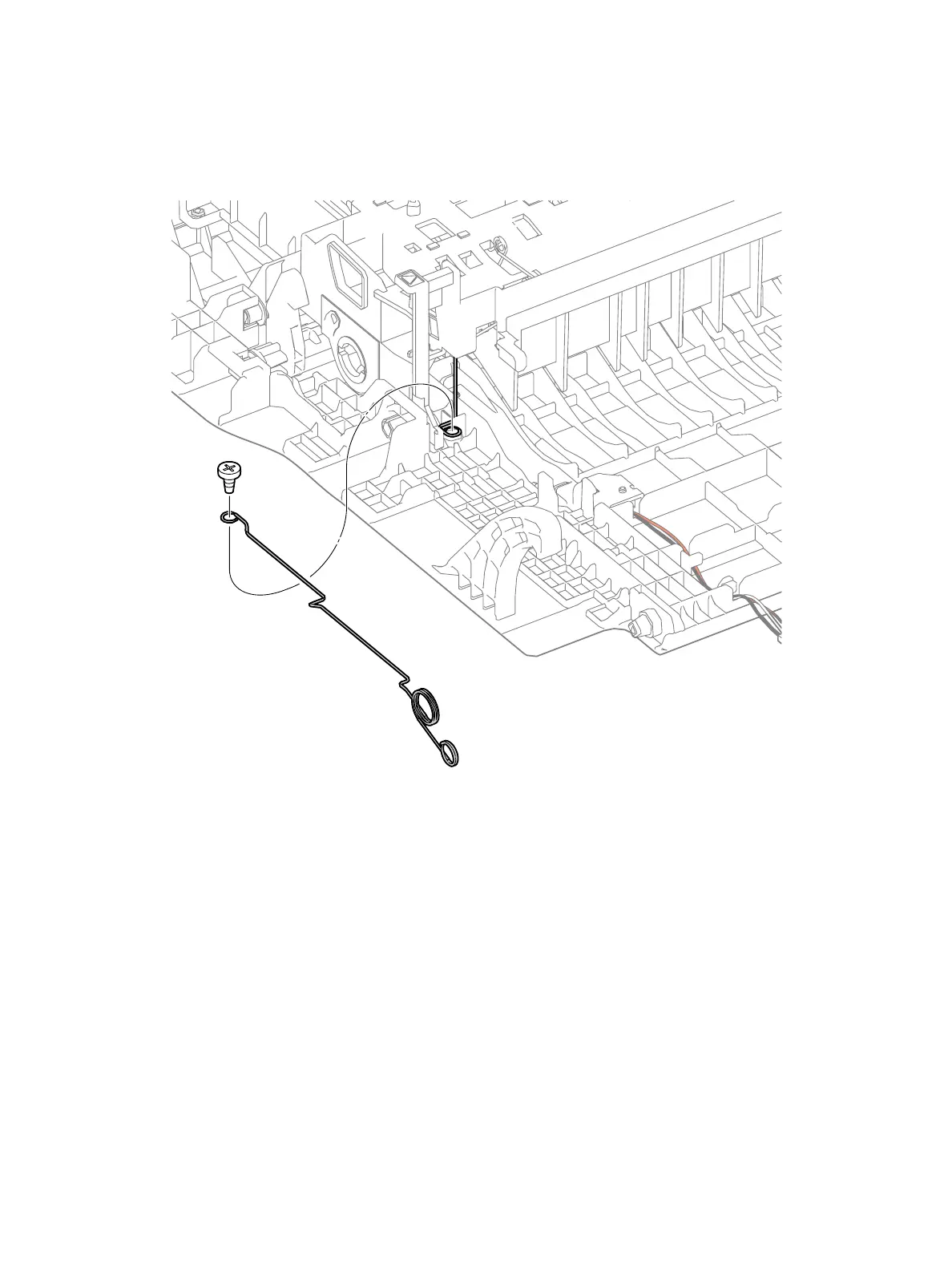

Figure 2
3. Replace in reverse order.
s3610-013
