Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-37
15. Remove the Transport Assembly. (Figure 7)
a. Remove 3 screws (silver, tapping, 8mm),
b. Rotate the Transport Assembly from the left CW into the cavity of the machine to clear the
gears on the right side of the assembly.
c. Lift the Transport Assembly towards the front of the machine and remove.

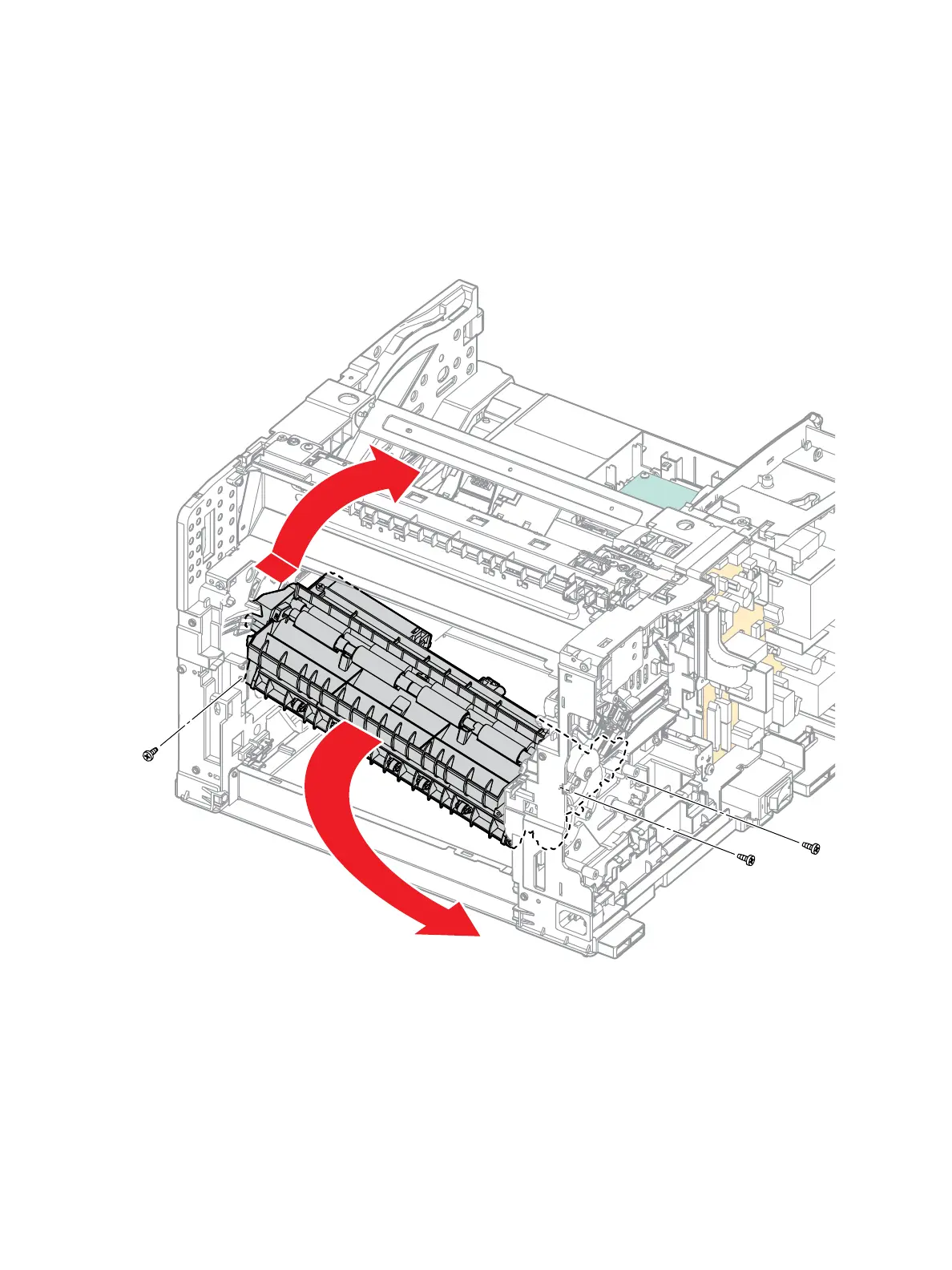

Figure 7
s6310-165
