Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-40

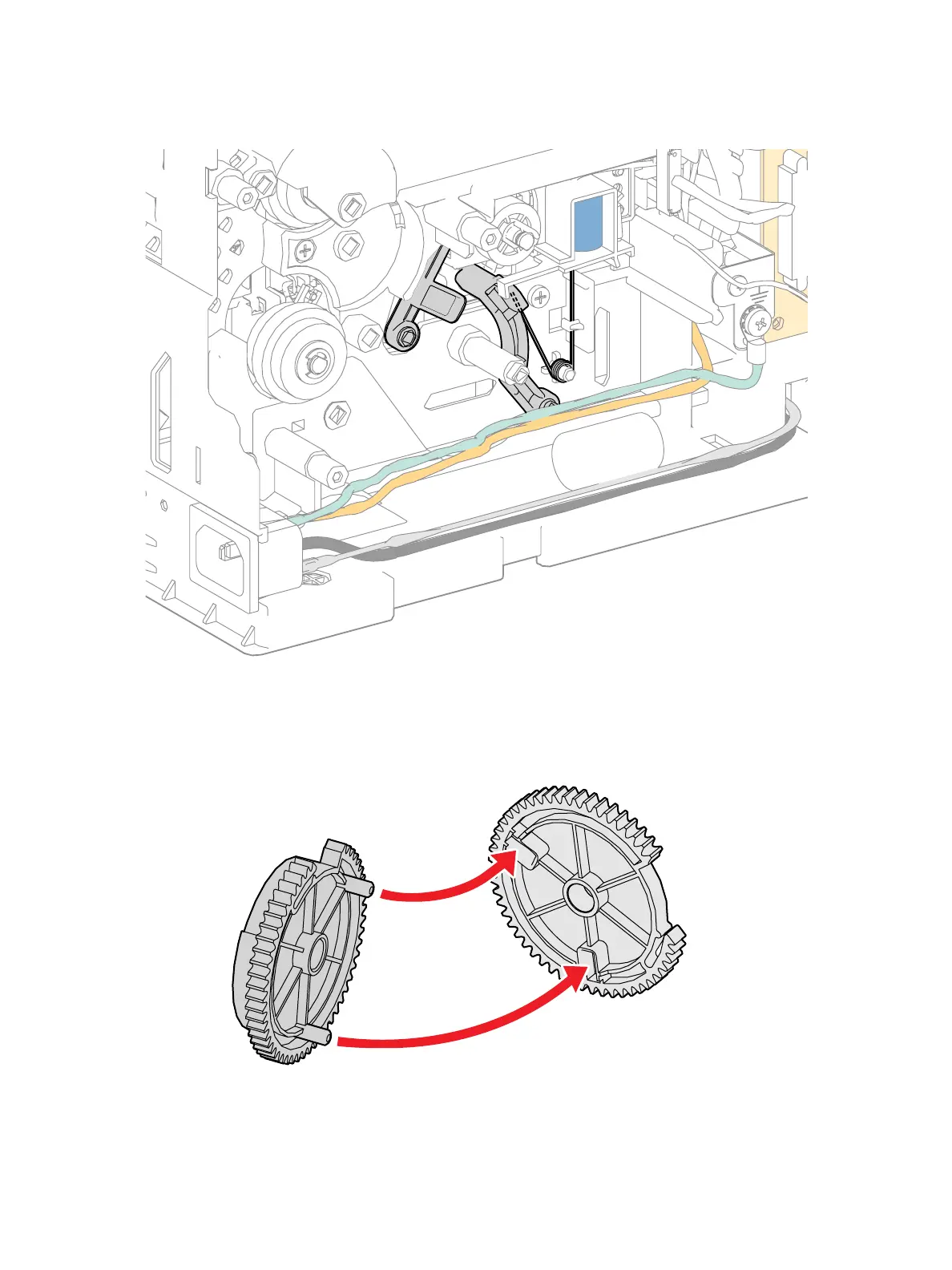

3. When installing the Lifter Arm, check the Feed Spring position. (Figure 10)
Figure 10
4. Assemble the Feed Gear Segments, fit the bosses on MSI 1 into the holes on MSI 2. (Figure 11)
Figure 11
s3610-022
s3610-023
