Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual4-42
6. When replacing the Top Frame Assembly, ensure that the No Paper Sensor Actuator passes
through the hole in the chassis. (Figure 13)

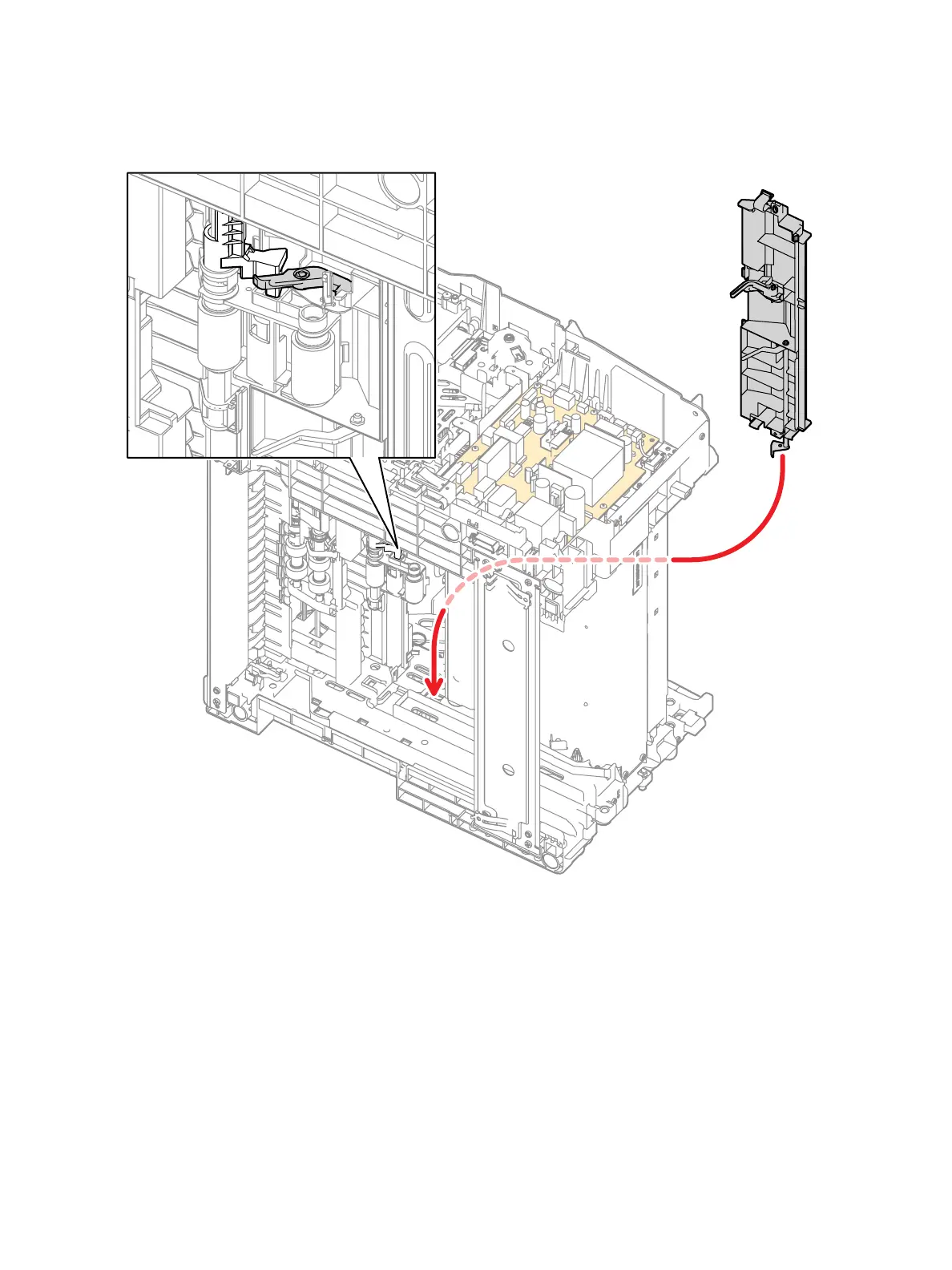

Figure 13
7. Replace in reverse order.
s3610-025
