Xerox WorkCentre 3615 Service Manual

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-59
Replacement

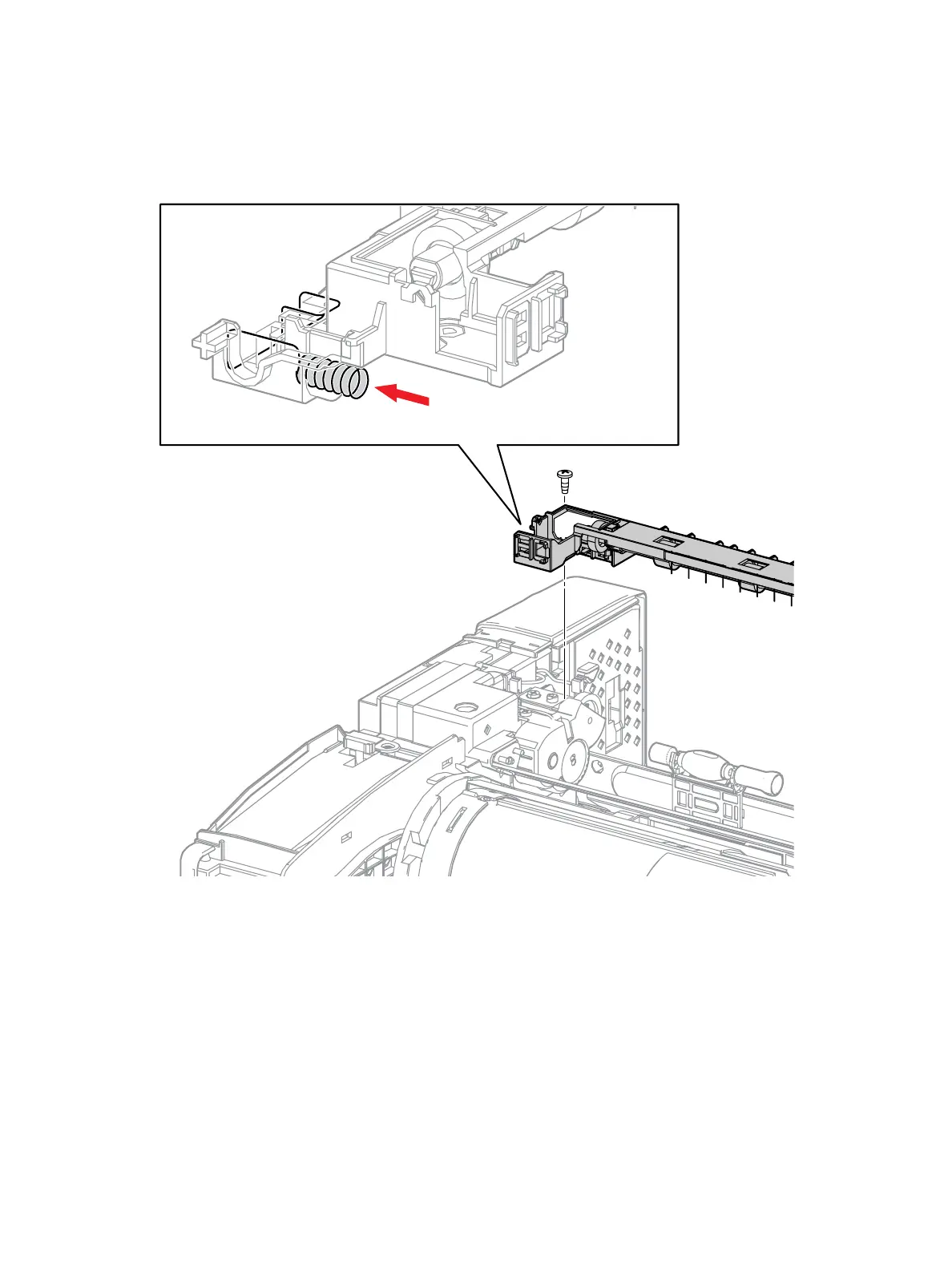

1. When installing the Exit Chute Assembly, the Sensor Ground Spring must contact the chassis
ground plate. (Figure 2)
Figure 2
2. Make sure the tabs on the 2 bosses line up with the slots in the frame to ensure the assembly is
locked into place.
3. Replace in reverse order.
s3610-03
3
