Xerox WorkCentre 3615

Service Parts Disassembly
Phaser 3610, WorkCentre 3615 Service Manual 4-129
3. Release the feeder harness from the guides.
4. Remove the Feeder Assembly. (FIgure 2)
a. 2 screws (silver, tapping, 8mm),
b. Remove the bearing,
c. Release 4 bosses to remove the Feeder Assembly.

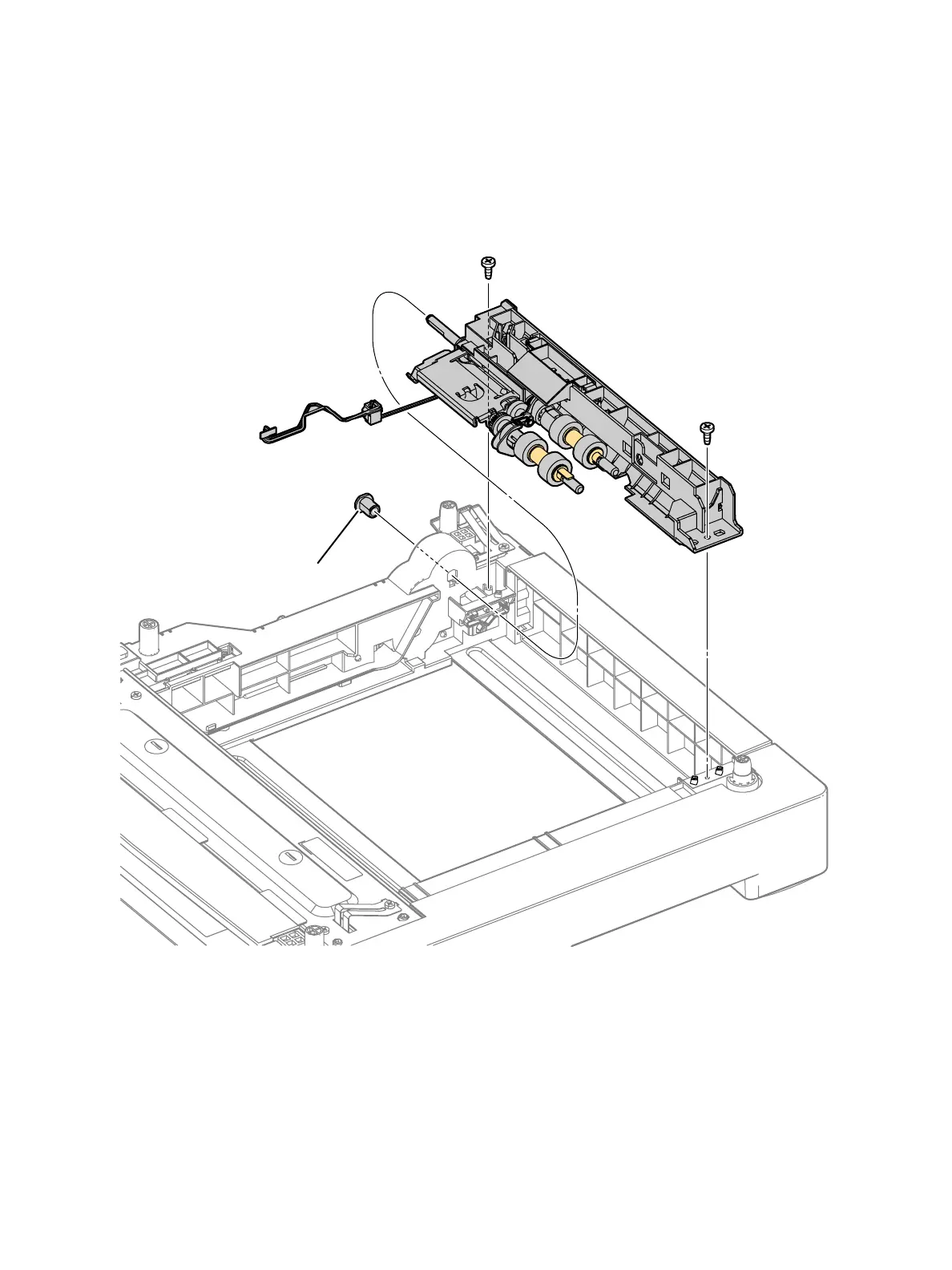

Figure 2
Replacement
1. Replace in reverse order.
s3610-119
Bearing
b)
c)
a)
