Xerox WorkCentre 3615 Service Manual

Specifications
Phaser 3610, WorkCentre 3615 Service Manual8-4
3615 Controller:
The 3615 controller performs system control for the entire machine. It processes and stores images
input/output from the IIT, IOT, facsimile, and printer I/F, and also controls the panel. For FAX
sending/receiving, it sends/receives data to/from the communication line via the NCU.
Configuration Table
Y: feature available, N: feature not available
*1: Direct Print Using the USB Storage Device
Functional Configuration
Product
Name
Operator
Panel
Duplex Network
Wire-
less
USB
Font -
ROM
SD-
Card
Memory
WorkCentre
3615DN
4.3 inch
Touch Panel
YYOptional
1+1
(Host
*1
)
N
Optional
1 slot
N
WorkCentre
3615DNM
4.3 inch
Touch Panel
YYOptional
1+1
(Host
*1
)
N
Optional
1 slot
N
CCD
LED
Sensor
DC Motor
DADF
Engine
Control Panel
[4.3 inch Touch Panel]
AIO Controller
LM1
NCU
Option
・SD-Card
ROS
IOT
IOT MCU
PSTN/PBX
Network (Rear)
USB2.0 (Rear)
Wireless Network (Option)
USB host 2.0 (Rear)
USB host 2.0 (Front)
(For USB Memory)

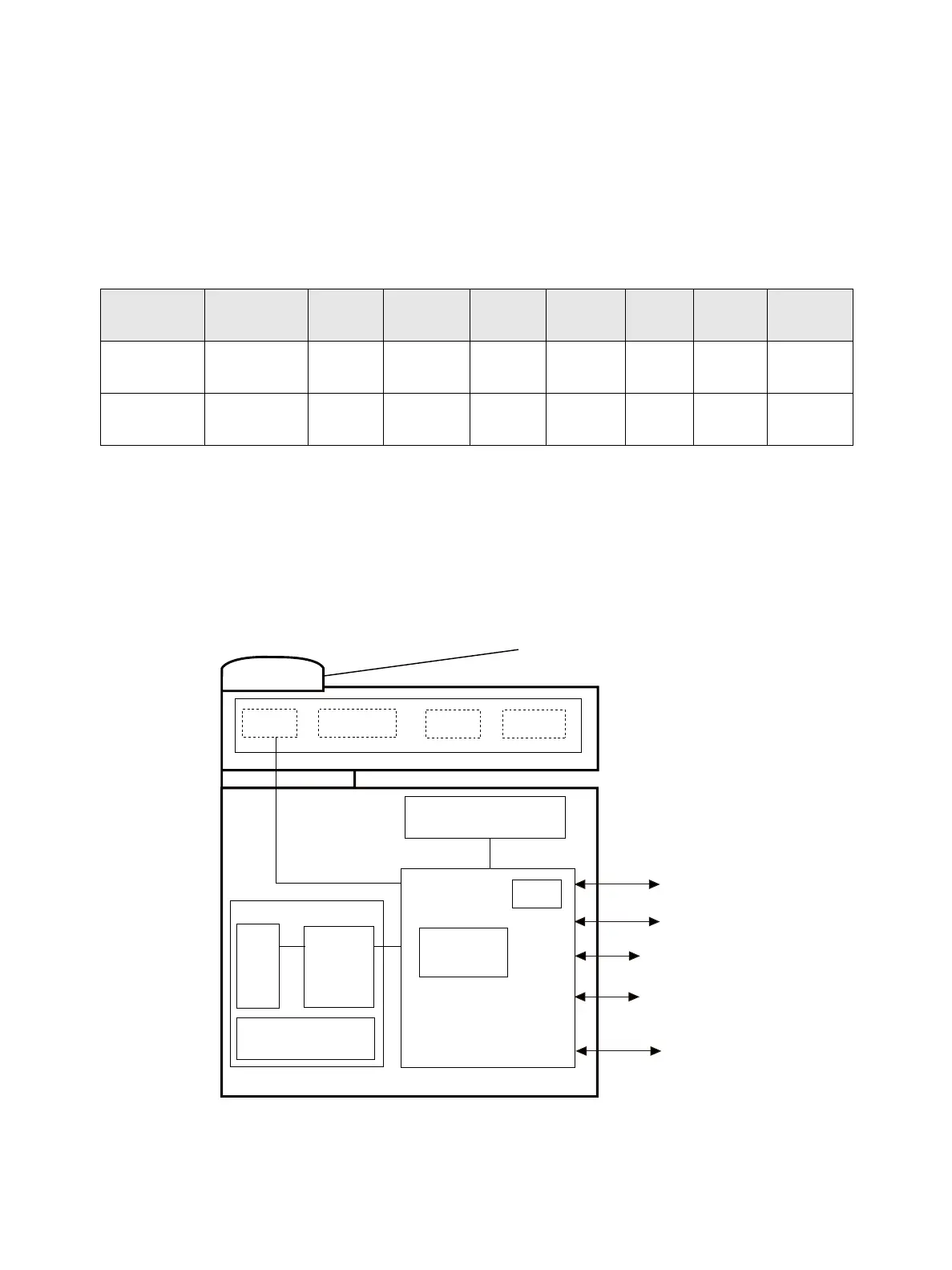

ZaA06001XB
IIT
Option
࡮
550 Sheet Feeder

Xerox WorkCentre 3615 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Fax	Yes
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory (Standard)	256 MB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Print Speed	47 ppm
Scan Resolution	600 x 600 dpi
Automatic Document Feeder	50 sheets
Connectivity	Ethernet
First Page Out Time (Copy)	8.5 seconds
Paper Capacity	250 sheets
Network Connectivity	Ethernet
Operating System Compatibility	Windows, Mac, Linux
