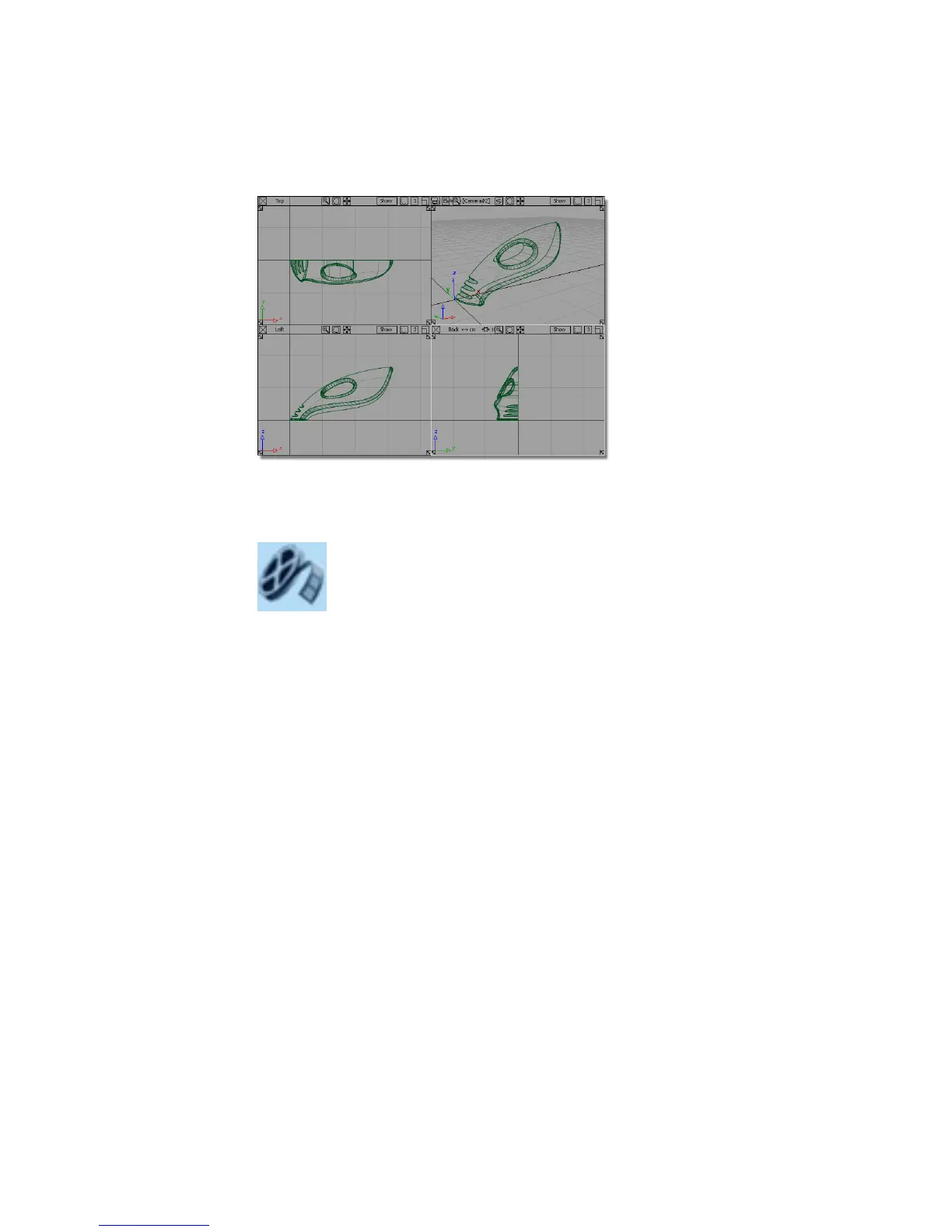

If you were not successful in part 5, open the file called vacuum_part6.wire,
located in the wire directory of the CourseWare project. This file contains the
completed model from Part 5.
Watch Part 6 of the tutorial.
Creating a cylinder for the power button
First, you will create a cylinder surface for the outline of the power button.
1 Return to the wireframe view using the diagnostic Shading in the
Control Panel
2 Choose Layouts > Top or the F5 hotkey to switch to the Top view.
348 | Chapter 6 Modeling a Vacuum Cleaner
