If you were not successful in part 5, open the file called MP3Player_part6.wire,
located in the wire directory of the CourseWare project. This file contains the
completed model from Part 5.
Watch Part 6 of the tutorial.
Control Button Revolved Surface
First, you will create the outline circles for the button design.

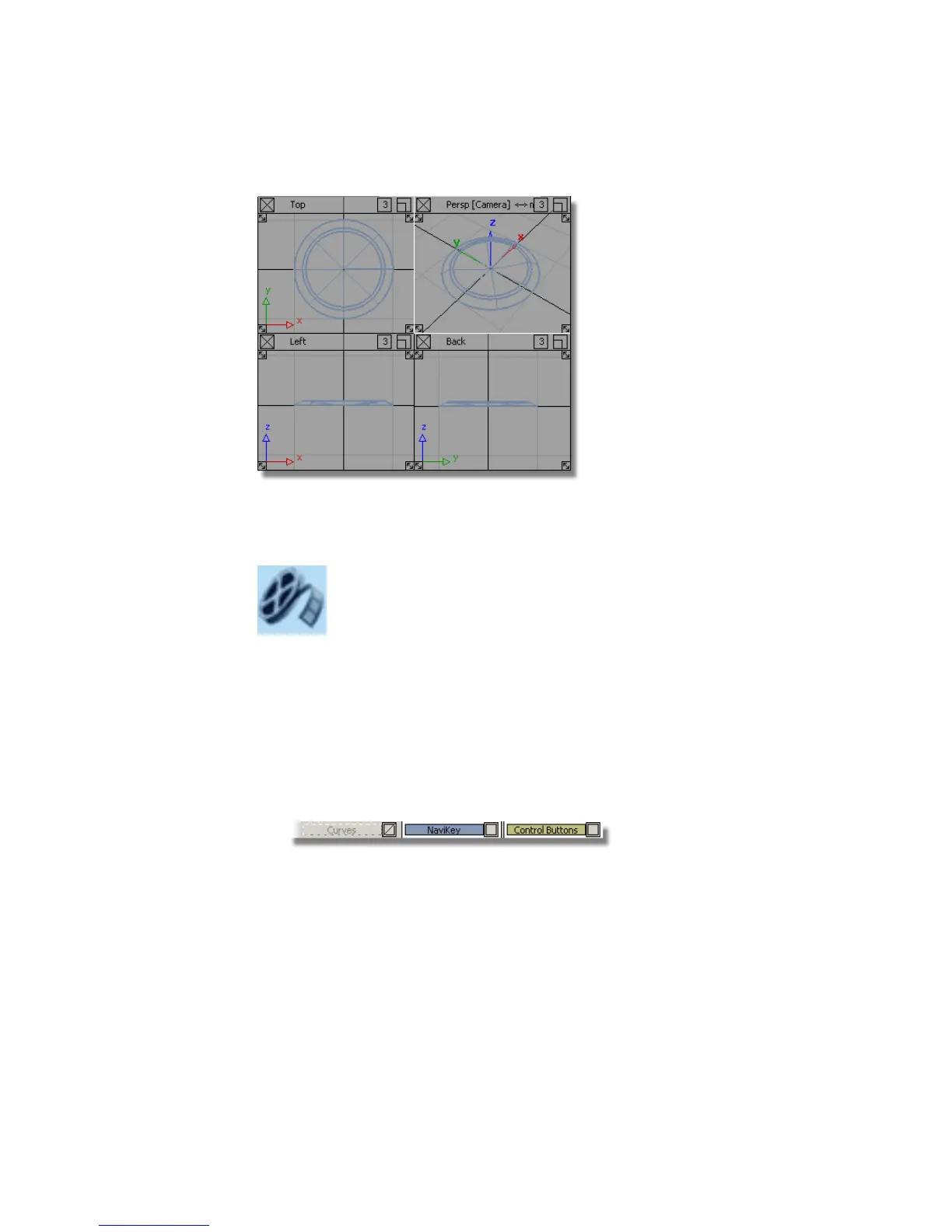

1 Maximize the Top window
2 Choose Layers > New to create a layer. Change the name of the layer to
Control Buttons.
3 Choose Curves > Keypoint Curve Toolbox , then Keypoint Curve Tools
> Circular Arc . You are prompted to enter the center of the circle.
Type in 0 to place the center of the circle at the origin.
