Part 4: Adding Blend Details
Creating the Blend Surface
The label surface is recessed back from the main bottle surface. The gap between
the two surfaces will be bridged by a Birail surface, which will give the label
area its character.
To create the Birail, you will use the two trimmed edges as Rails, and create
two new curves for the Generation curves.
Watch Part 4 of the tutorial.
Opening the tutorial file (optional)
If you successfully completed Part 3, proceed to the next step: Creating the
Generation Curves below.

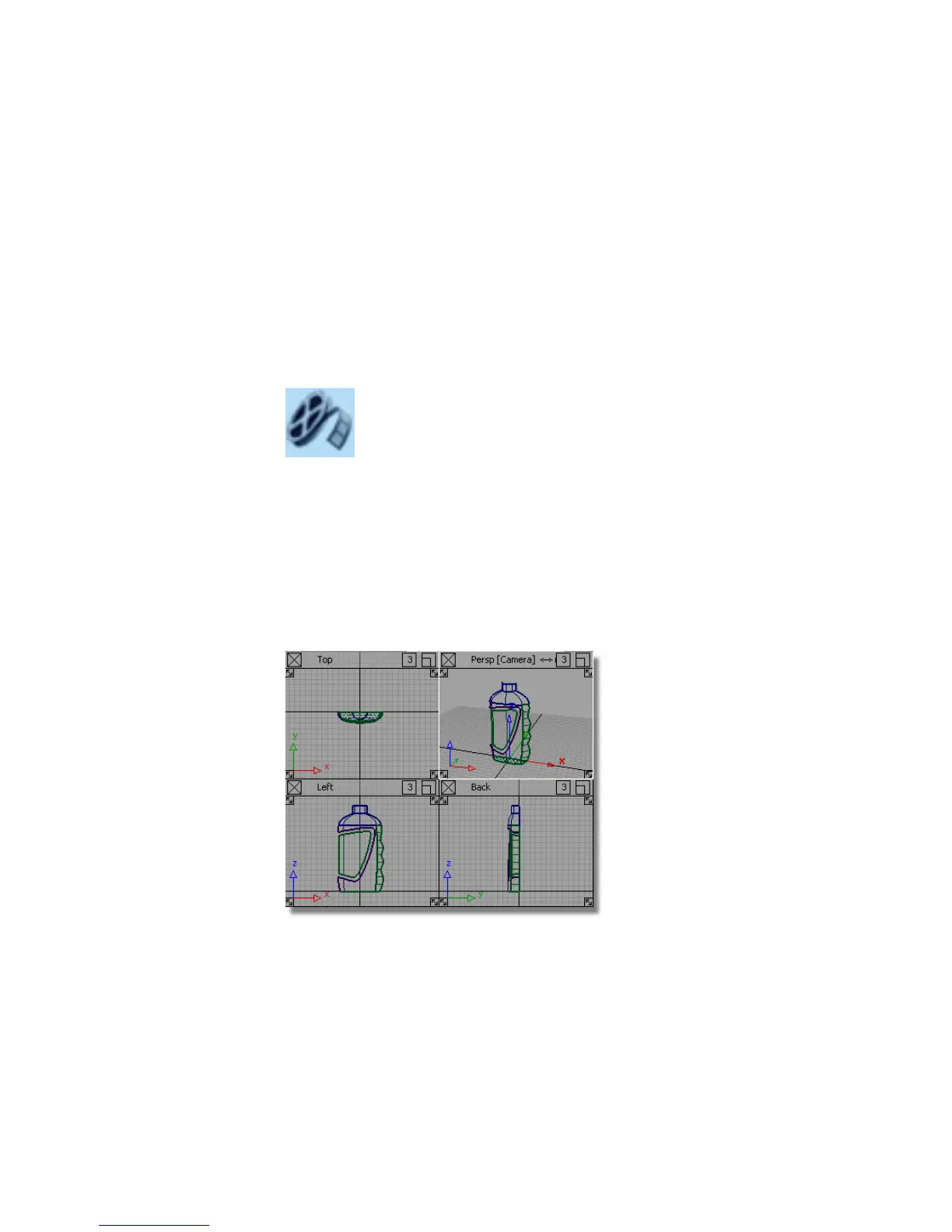

If you were not successful in part 3, open the file called showergel_part4.wire,
located in the wire directory of the CourseWare project. This file contains the
completed model from Part 3.
Part 4: Adding Blend Details | 555
