Routing Virtual Router Redundancy Protocol (VRRP)
IX20 User Guide
473

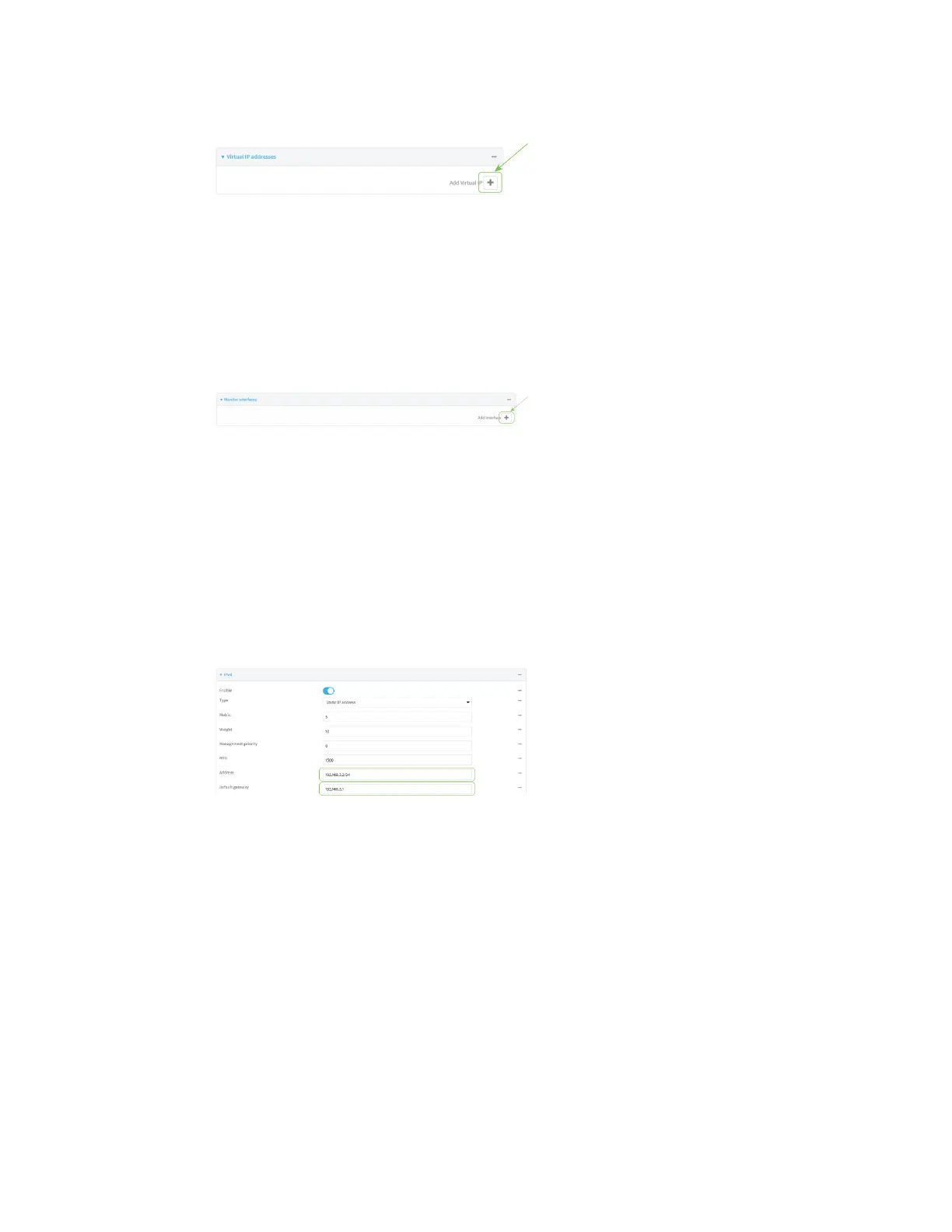

10. Click to add a virtual IPaddress.
11. For Virtual IP, type 192.168.3.3.
Task 2: Configure VRRP+ on device two
1. Click to expand VRRP+.
2. Click Enable.
3. Click to expand Monitor interfaces.
4. Click to add an interfacefor monitoring.
5. Select Interface: Modem.
6. Click to enable Monitor VRRP+ master.
7. For Priority modifier, type 30.
Task 3: Configure the IP addressfor the VRRP interface, ETH2, on device two
1. Click Network >Interfaces> ETH2 > IPv4
2. For Address, type 192.168.3.2/24.
3. For Default gateway, typethe IPaddressof the VRRPinterfaceon the master device,
configured above in Task 3, step 2 (192.168.3.1).
Task 4: Configure SureLink for ETH2 on device two
1. Click Network >Interfaces> ETH2 > IPv4 >SureLink.
2. Click Enable.
3. For Interval, type 15s.
4. Click to expand Test targets>Test target.
5. For Test Type, select Ping test.
