Operation
114
Instructions for use Zeus Infinity Empowered SW 2.n

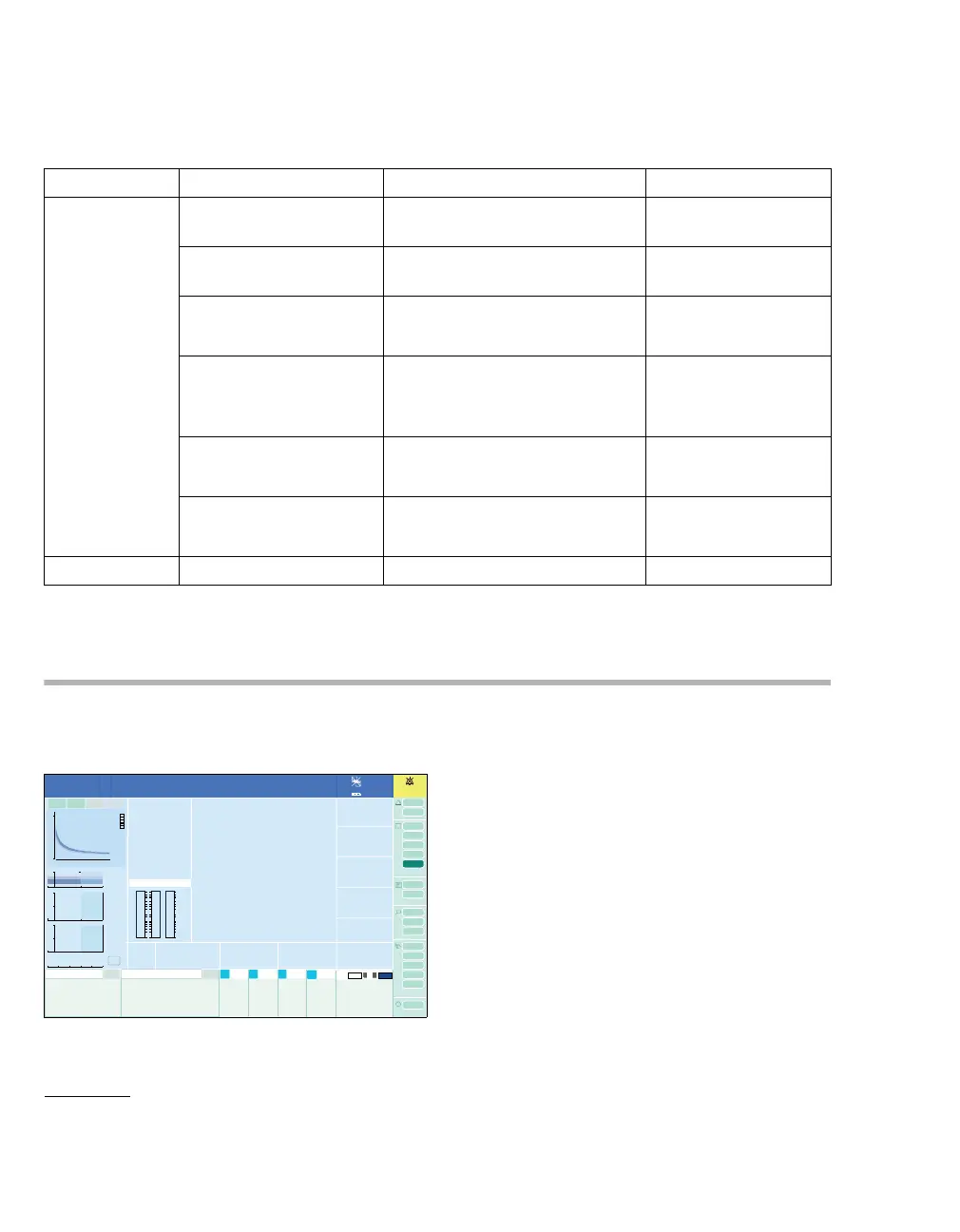

Influence of weight and age on the device settings:
Integrated SmartPilot View (optional)
SmartPilot View* is only available in the adult
(Adult) patient category.
z Touch the SmartPilot button (A).
Integrated SmartPilot View is optionally displayed
or hidden in the left-hand area (B) of the screen.
The view can be saved in a profile (Profiles).
More detailed information can be found in the
SmartPilot View instructions for use (9054084,
1st edition).
Patient data Influenced parameter Algorithm Remark
Weight Tidal volume: VT Radford / User / VT from profile Setting is performed
only in standby mode.
Respiratory rate: RR Radford / User / RR from profile Setting is performed
only in standby mode.
∆Psupp cancelation >20 kg: 4.0 s
≤20 kg: 1.5 s
Internal respiratory phase
detection
>20 kg: Criteria for adults
≤20 kg: Criteria for pediatric pa-
tients
Alarm limit setting for
Exp. time too short
>20 kg: 6.0 L/min
≤20 kg: 2.0 L/min
Internal circle flow in
fresh-gas mode
>20 kg: 6 L/min x T
i/(Ti + Te)
≤20 kg: 1 L/min x T
i/(Ti + Te)
Age xMAC Age-dependent after Mapleson
* only in conjunction with Variant 3 – C700
503
1:35
A
B
