Cleaning, disinfection, and sterilization
378
Instructions for use Zeus Infinity Empowered SW 2.n
Assembly

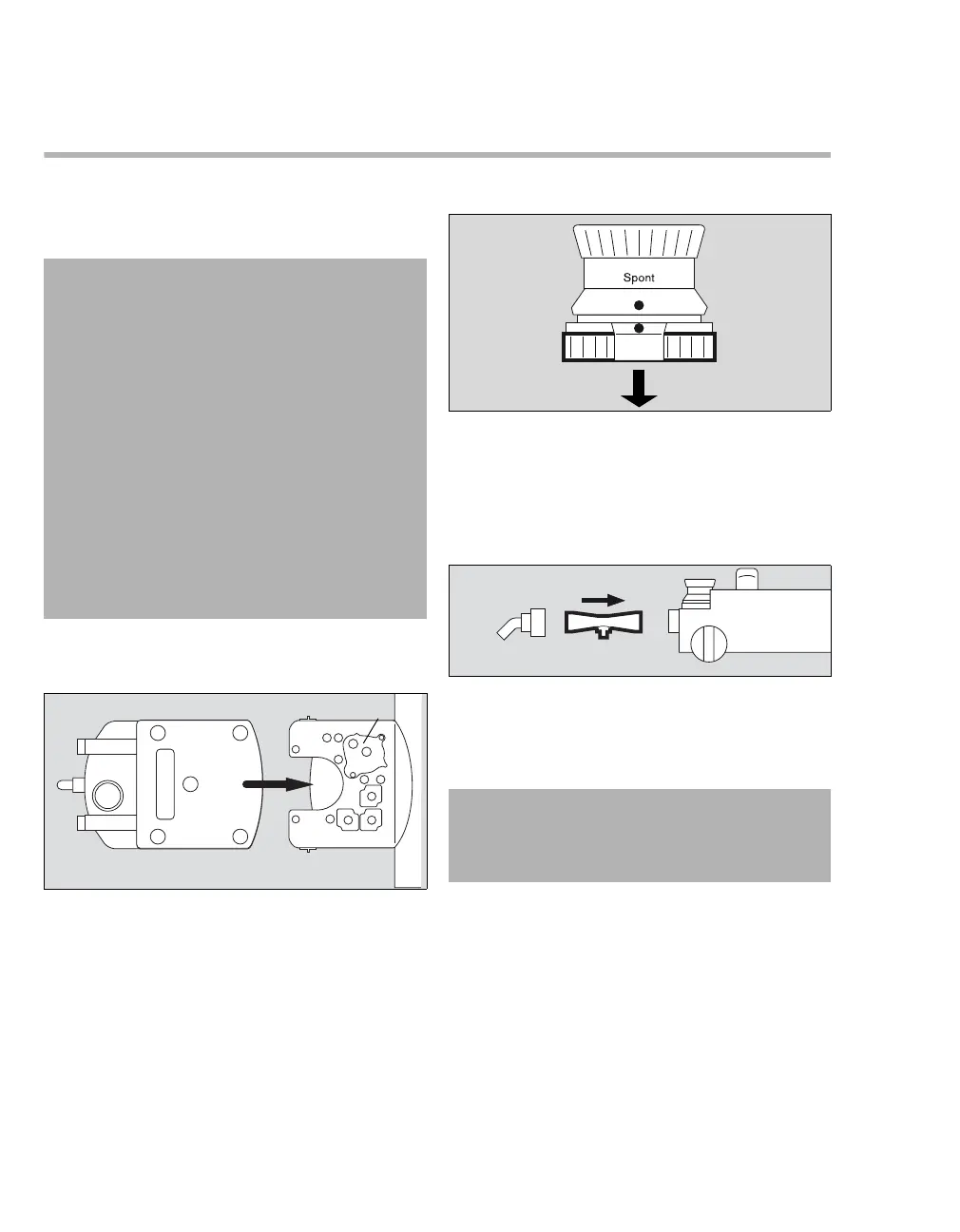

Assembling the breathing system
1 Visual inspection of the surface seal and ce-
ramic disks in the valves.
2 Insert ventilator (A) in the breathing system
mount.
3 Tighten the quick-release screws for the ventila-
tor by turning them 90° clockwise.
4 Attach cover fitting properly.
5 Tighten all 5 quick-release screws by turning
them 90
o
clockwise, using a 6 mm Allen key
(supplied).
6 Fit the APL valve (B) vertically on the upper part
of the breathing system housing.
The mark (C) must point in the direction of the
user when the breathing system is installed.
7 Tightly screw the knurled nut (D) clockwise.
8 Insert the two SpiroLife flow sensors (E) into
the breathing system and screw in place with
the nozzles (only use the blue, non-rotatable
connecting nozzles)
WARNING
Risk of fire
Residual vapors of highly flammable disin-
fectants (e.g., alcohols) and deposits that
were not removed during reprocessing may
ignite when the flow sensor is in use.
– Ensure particle-free cleaning and disinfec-
tion.
– After disinfection, allow the flow sensor to
air for at least 30 minutes.
– Before inserting the flow sensor check for
visible damage and soiling, such as resid-
ual mucus, medication aerosols, and parti-
cles.
– Replace flow sensors when damaged,
soiled, or not particlefree.
091
A
006156
CAUTION
Do not spray the nozzles on the breathing system
with silicone spray! Silicone spray can get into the
breathing system and cause the valves to stick.
B
C
D
E
