Dräger Zeus Infinity Empowered - Connecting Pediatric and Neonatal Breathing Hoses

Assembly and preparation
70
Instructions for use Zeus Infinity Empowered SW 2.n
6 Connect the breathing bag (G) with the con-
necting nozzle to the breathing bag hose and
attach to the angled nozzle. Insert the breathing
bag downward, hanging in the direction of the
floor, into the mount.
It is recommended that only Dräger-approved
breathing bags be used. Otherwise, device opera-
tion may be restricted.

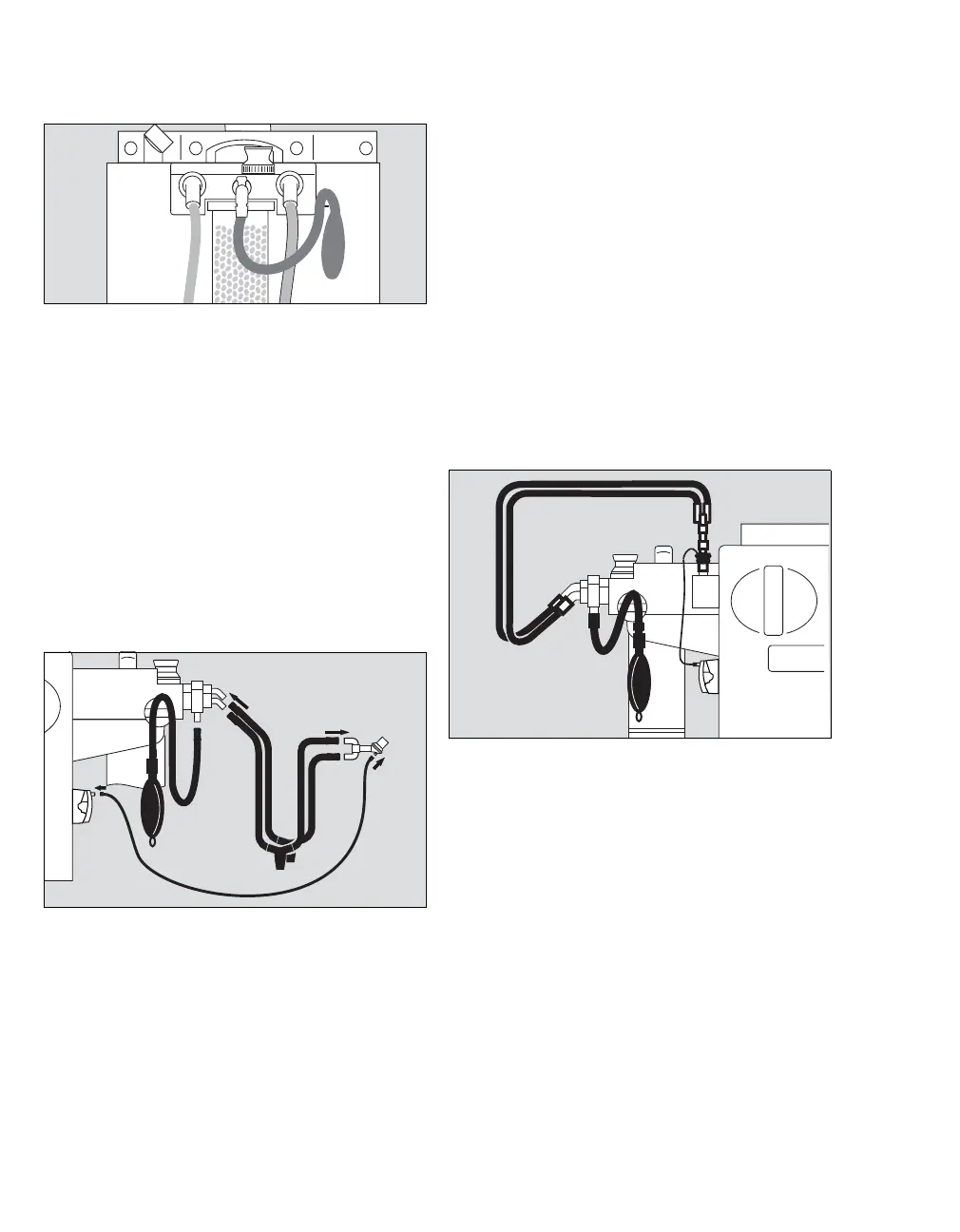

Connecting pediatric and neonatal
breathing hoses
Using a near-patient filter
1 Connect breathing hoses (A) to the inspiration
and expiration nozzles of the breathing system
using the large sleeves. Connect the small
sleeves with Y-piece.
2 Attach hose water traps (B) attach at the lowest
point to collect the condensate.
3 Connect the Y-piece (C) and spacer (D).
4 Attach the HME filter or filter (E) to the spacer
on the Y-piece.
5 Connect the sample line (F) on the filter and on
the CO2 water trap.
6 Connect the breathing bag (G) with the con-
necting nozzle to the breathing bag hose and
attach to the angled nozzle of the breathing sys-
tem. Insert the breathing bag downward, hang-
ing in the direction of the floor, into the mount.
It is recommended that only Dräger-approved
breathing bags be used. Otherwise, device opera-
tion may be restricted.
Determining system compliance and leakage
1 Connect Y-piece with filter (G) to the self-test
adapter firmly.
2 Perform leak test, see page 136.
149267
G
A
A
C
E
F
F
G
D
B
272
G
