Operation
116
Instructions for use Zeus Infinity Empowered SW 2.n
Control mode Fresh-gas control
Setting the fresh-gas concentration manually

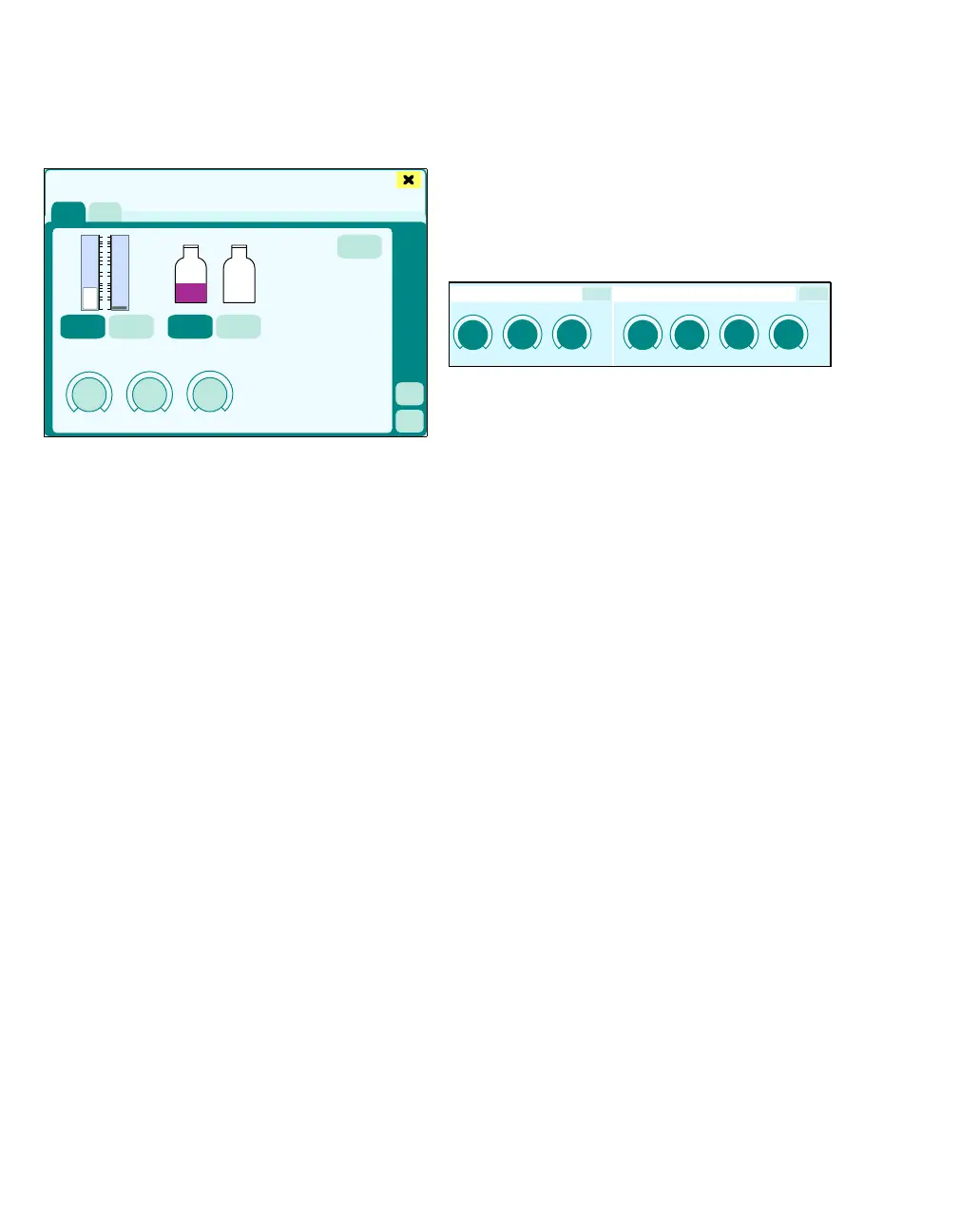

1 Touch the FG ctrl. tab (A).
2 Confirm with rotary knob.
3 Touch the O
2+Air or O2+N2O button (B) for the
carrier gas required.
4 The color changes to yellow, confirm with rotary
knob.
5 Touch the button (C) for the anesthetic agent re-
quired (ISO, SEV, DES).
The anesthetic agents displayed correspond to
the connected DIVA metering modules.
6 The color changes to yellow, confirm with rotary
knob.
Settings:
–O
2 fresh-gas concentration FG O2 (D)
– Fresh-gas flow Flow (E)
– Fresh-gas concentration of the anesthetic
agent FG DES, FG ISO, FG SEV (F)
7 Touch the therapy control of the parameter.
8 Use the rotary knob to set and confirm the
value.
The set values are transferred to the system.
When selecting the therapy control for the anes-
thetic-gas concentration for the first time, the initial
value is preset automatically (see page 350).
z Button (G) opens the Ventilation settings dia-
log window
z Button (H) opens the Alarms dialog window
After closing the MixGas settings dialog window,
the most important therapy controls (I) are shown in
the lower part of the screen and can be used di-
rectly.
Set O
2 concentration to 100 %.
z Touch the 100% O
2 button (J).
The color of the therapy control (K) turns yellow and
indicates a value of 100 %.
z Use the rotary knob to set and confirm the
value.
