Instructions for use Zeus Infinity Empowered SW 2.n 365
Cleaning, disinfection, and sterilization
Dismantling the anesthetic gas receiving
system (AGS)

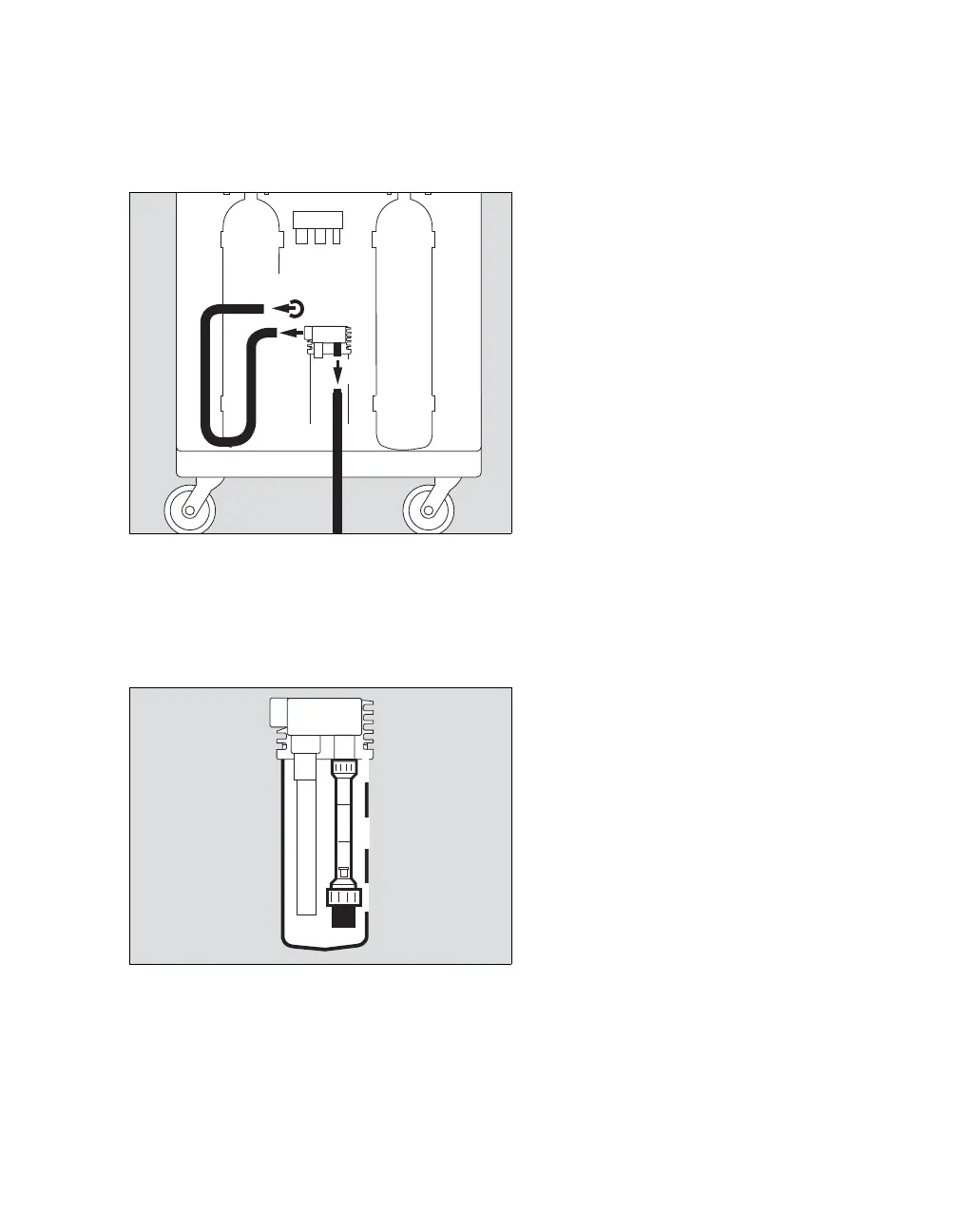

1 Disconnect the suction hose (A) from the re-
ceiving system on the back of Zeus IE.
2 Remove the transfer hose (B).
3 Remove the anesthetic gas receiving system
(C); refer to the respective instructions for use.
4 Turn the buffer-volume container (D) counter-
clockwise by 45° and remove it.
5 Unscrew the union nut (E).
6 Unscrew the flow tube (F) from the connection
housing (H).
Do not place the flow tube in the cleaning and
disinfection machine, wipe disinfection only!
7 Unscrew the union nut (G) and remove the par-
ticle filter.
Follow the hospital hygiene regulations and rele-
vant instructions for use for disposal.
8 Prepare the individual parts for disinfection and
cleaning in the cleaning and disinfection ma-
chine.
To achieve optimum drying of the buffer-volume
container, sterilization can be performed after re-
moval at a maximum temperature of 134 °C (maxi-
mum of 10 min).
022023
A
B
B
C
•
D
E
F
G
H
