Instructions for use Zeus Infinity Empowered SW 2.n 197
Monitoring
Patient monitoring
Zeus IE patient monitoring (optional) provides the
following functions:
A ECG (electrocardiography), see page 208
B SpO
2 (oxygen saturation), see page 217
The SpO
2 measurement can be carried out via
the SpO2 SmartPod or without the SpO2*
SmartPod.
C NIBP (non-invasive blood pressure),
see page 220
D IBP (invasive blood pressure), see page 225
E Temp (temperature), see page 233
F C.O./ Calculat. (cardiac output), see page 234
G BIS/NMT (anesthesia effect monitoring),
see page 238
The parameters can be displayed as measured val-
ues in configurable parameter boxes.
The ECG, SpO
2, IBP and BIS parameters can also
be displayed as mini-trends.

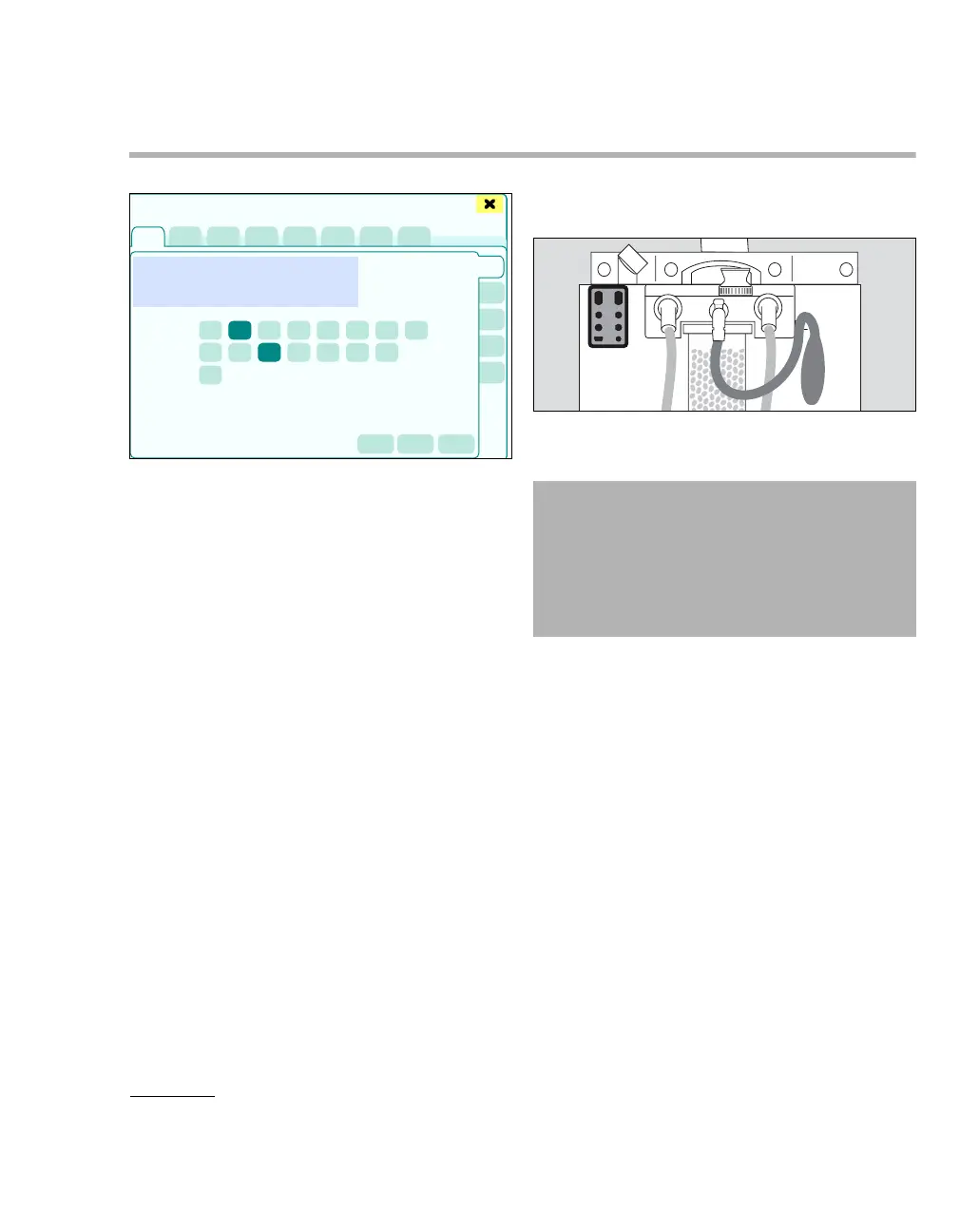

Connection field for patient monitoring
The connection field for patient monitoring is on the
left-hand side next to the breathing system.
389
*optional
Sensors/Parameters
A
B
CDE
F
G
148
WARNING
Care must be taken to ensure that the pods are
fitted securely and cannot drop. Route and at-
tach the sensor cables and catheter tubes to
the patient in such a way that if cables, tubes
or the device are moved the patient will not be
injured.
