Monitoring
198
Instructions for use Zeus Infinity Empowered SW 2.n
SpO2 measurement with SmartPod SpO2

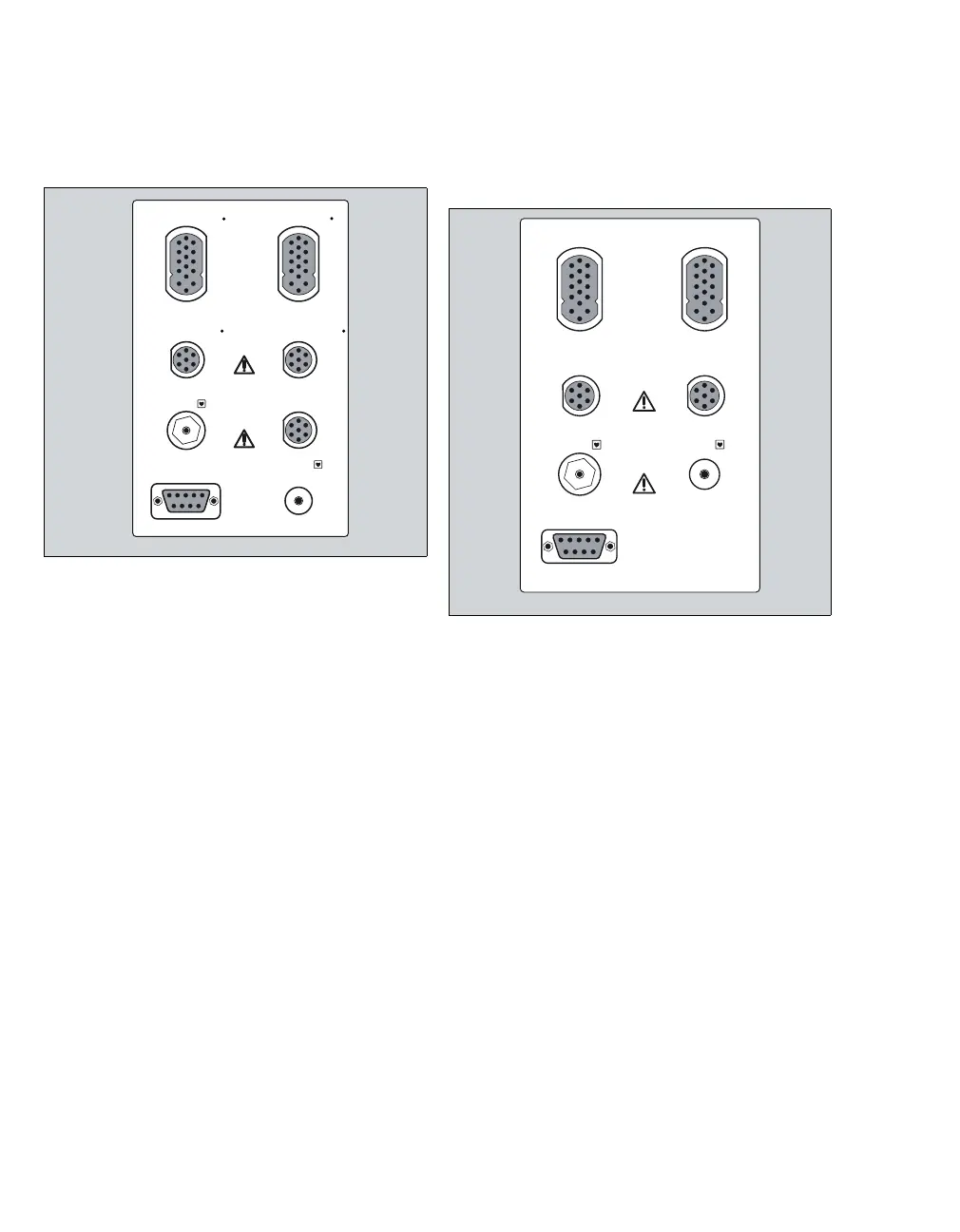

The connection field has the following connections:
A HEMOMED 1
Connection for accessories to measure 1 to
4 invasive blood pressures (IBP) and C.O.
BMULTIMED
Connection for accessories to measure 3 to
6 ECG leads and 1 or 2 temperatures
C Aux/Hemo 2/3
Connections for accessories to measure 1 to
4 invasive blood pressures and C.O. as well as
for anesthesia effect monitoring (Trident pod,
BISx pod)
DNIBP
Connection to measure the non-invasive blood
pressure
ESpO2
Connection to measure oxygen saturation (sen-
sor technology must be identified)
F IV system
Connection of Module DPS for intravenous an-
esthesia (optional)
GSync
Synchronization connection for defibrillators
SpO
2 measurement without SpO2 SmartPod
(optional)
The connection field has the following connections:
H HEMOMED 1
Connection for accessories to measure 1 to
4 invasive blood pressures (IBP) and C.O.
IMULTIMED
Connection for accessories to measure SpO2,
3 to 6 ECG leads and 1 or 2 temperatures
J Aux/Hemo 2/3
Connections for accessories to measure 1 to
4 invasive blood pressures and C.O. as well as
for anesthesia effect monitoring (Trident pod,
BISx pod)
KNIBP
Connection to measure the non-invasive blood
pressure
LSync
Synchronization connection for defibrillators
M IV system
Connection of Module DPS for intravenous an-
esthesia (optional)
009
NIBP
Aux / Hemo 2 Aux / Hemo 3
SpO2
HEMOMED 1
MULTIMED
IV-System
Sync.
A
B
C
D
E
F
G
010
NIBP
Aux / Hemo 2 Aux / Hemo 3
HEMOMED 1
MULTIMED
IV-System
Sync.
H
I
J
K
L
M
