Instructions for use Zeus Infinity Empowered SW 2.n 43

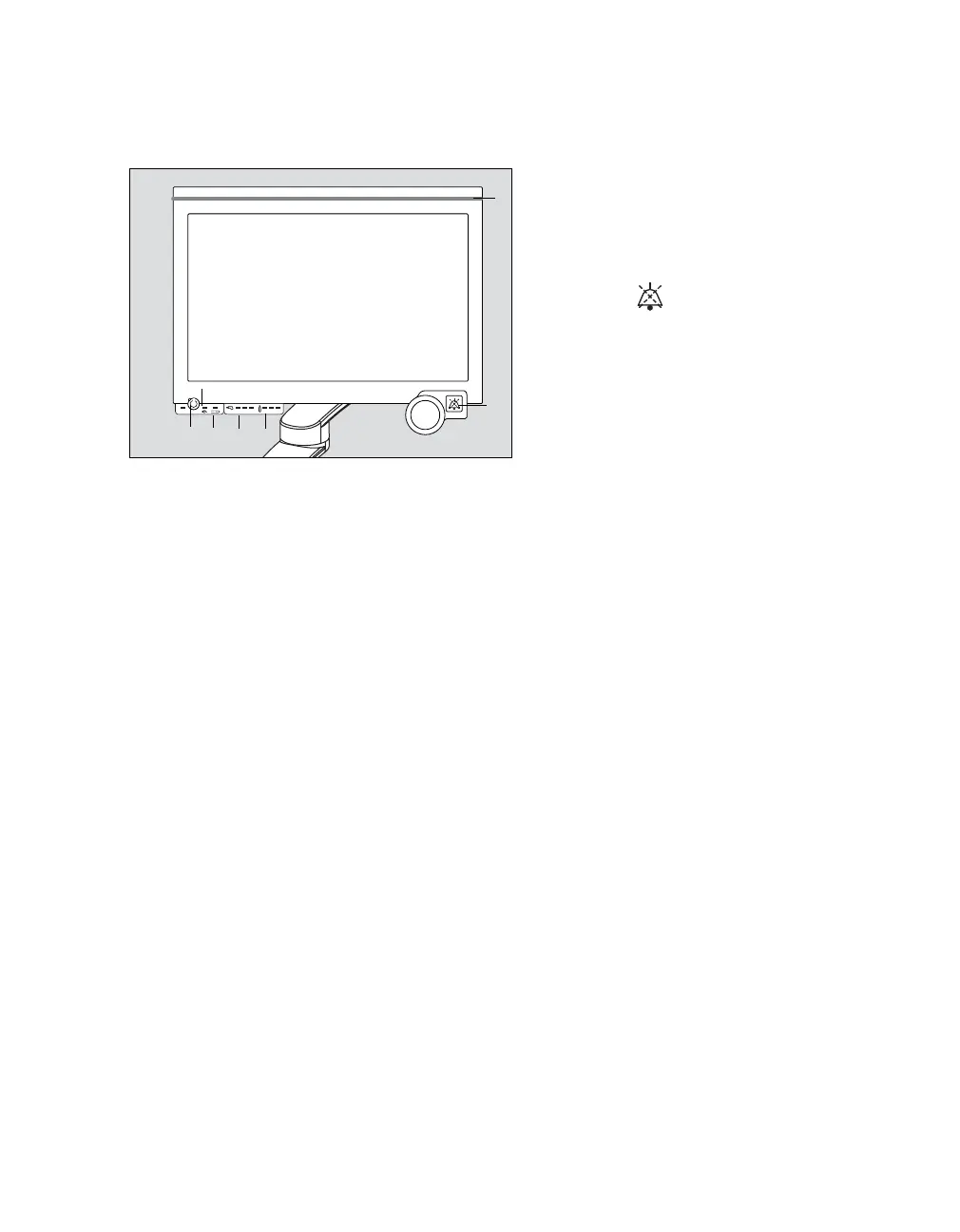

Operating concept
Variant 2 and variant 3
All the controls are on the screen.
A The screen is touch-sensitive (touch screen)
and can also be operated with gloves. Touch
lightly to call up functions or dialog windows.
B Rotary knob for selecting and confirming set-
tings
C On/Off key to switch the device on/off
D LED for status display of the power supply for
grid operation:
– Green = mains supply sufficient
– Off = no mains supply present
E LED for status display of the power supply for
battery operation:
– Green = battery charged
– Yellow = battery charge less than 50 %
– Off = battery charge less than 10 %
F LEDs for status display of the gas supply from
the central gas supply (O
2, Air, N2O)
– Green = pressure sufficient
– Off = pressure not sufficient
G LEDs for status display of the gas supply from
the backup gas cylinders (O
2, Air, N2O)
– Green = pressure sufficient
– Green, flashing = pressure slightly below
level
– Off = pressure not sufficient
H Alarm pause function
Press the button to suppress the audible
alert of all active alarms for 2 minutes. For addi-
tional information, see page 177.
I The alarm bar on the front and back indicates
alarm conditions:
– Red = high-priority alarm condition
– Yellow = medium-priority alarm condition
021
O2
Air
N
2O O2
Air
N
2O
A
B
C
D
E
FG
H
I
