Assembly and preparation
78
Instructions for use Zeus Infinity Empowered SW 2.n
5 Screw the locking cap (E) off the filling device
slowly so that any pressure which has built up
in the DIVA metering module can escape
slowly.

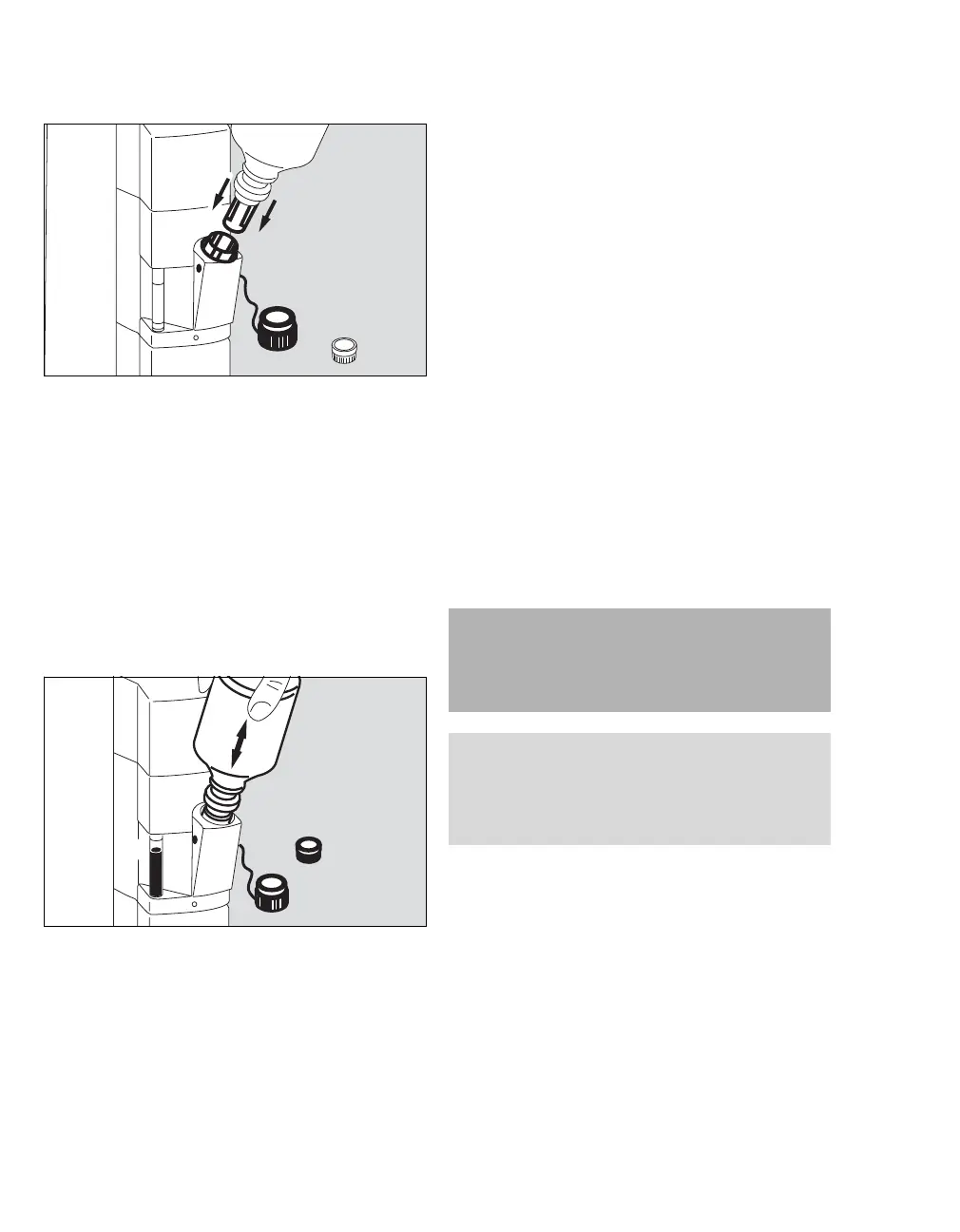

6 Introduce the anesthetic agent bottle with the
filling adapter (F) into the filling opening. When
doing so, turn the anesthetic agent bottle clock-
wise until the coded area has engaged in the
filling opening.
Do not turn the anesthetic agent bottle counter-
clockwise. The filling adapter might become de-
tached from the anesthetic agent bottle
7 Press the anesthetic agent bottle (G) up to the
stop into the filling opening and keep it pressed.
Avoid excessive force and tilting of the anes-
thetic agent bottle!
8 Watch the filling level in the sight glass (H).
9 The supply will be interrupted automatically
when the maximum mark is reached.
10 Fill the DIVA metering module to the maximum
mark at the most.
11 If the DIVA metering module is filled beyond the
maximum mark, the anesthetic agent flows out
through an overflow hole (I).
Finishing the filling process
1 Reduce the pressure in the anesthetic agent
bottle and slowly pull out the anesthetic agent
bottle.
2 Check the filling level in the sight glass (H) –
DIVA metering module must hang or stand ver-
tically during checking.
3 Screw on the locking cap (J).
z Screw the Dräger Fill filling adapter from the an-
esthetic agent bottle and
4 use the screw cap (K) to close the anesthetic
agent bottle.
061062
F
E
K
J
H
G
I
CAUTION
Increased occupational exposure
Firmly screw on the locking cap. Otherwise, anes-
thetic agent can escape.
NOTE
Do not store the anesthetic agent bottle with the
Dräger Fill filling adapter screwed on. The Dräger
Fill filling adapter is no substitute for the bottle
cap.
