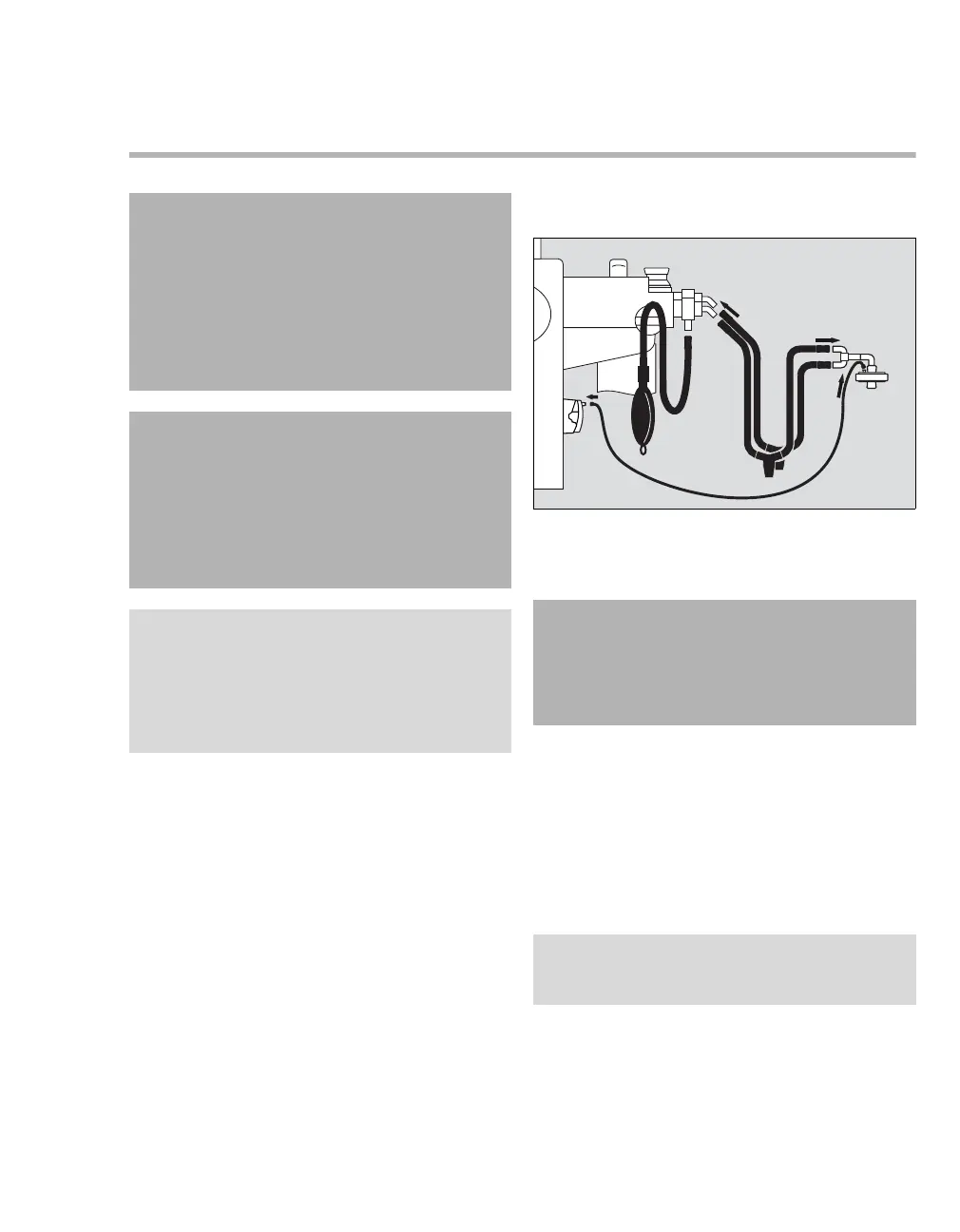

Instructions for use Zeus Infinity Empowered SW 2.n 69
Assembly and preparation
Connecting hoses
Connecting adult breathing hoses
1 Breathing hoses (A) – connect to the inspiratory
and expiratory ports of the breathing system
and the Y-piece.
2 Attach hose water traps (B) attach at the lowest
point to collect the condensate.
3 Connect the Y-piece (C) and elbow (D).
4 HME filter or filter (E) – connect to the elbow on
the Y-piece.
5 Connect the sample line (F) on the filter and on
the CO2 water trap.
WARNING
Risk of burns to the patient's airways/mucous
membranes
A defect in the ventilator or the DIVA metering
module can lead to an increased breathing-
gas temperature.
To prevent the risk of burns, the length of the
breathing hose may not be less than 110 cm.
WARNING
Risk of patient injury
When using near-patient filters do not scav-
enge at the patient end!
In the event of stenosis or increased filter re-
sistance the patient may be injured by vac-
uum.
NOTE
Zeus IE is manufactured without natural rubber
latex.
To minimize the risk of exposure to latex, use
breathing bags and breathing hoses manufac-
tured without natural rubber latex.
176
WARNING
Risk of burns when using HF surgery equip-
ment
Do not use any antistatic or conductive
breathing hoses!
NOTE
Only scavenge from the near-patient filter, other-
wise the measured values may be incorrect.
A
A
F
F
D
C
E
B
