Instructions for use Zeus Infinity Empowered SW 2.n 73
Assembly and preparation
Connecting IV system
z Assemble the IV-system (optional) according to
the instructions for use for Module DPS syringe
pumps.
Attaching to a retaining arm (A) (optional)
1 Insert infusion apparatus stand into the retain-
ing arm and fasten with the clamping screw.
2 Attach the IV system to the infusion apparatus
stand. Check to make sure the IV system is se-
cure.
3 A carrying handle (B) can be fitted to the top sy-
ringe pump.
– Insert the carrying handle into the mounting
slot of the top syringe pump and lower it.
– Turn the clamping screw until the carrying
handle is securely attached.
4 Connect the cable connection (C) between the
IV system and the IV system connection in the
connection field for patient monitoring.
Attaching to an infusion apparatus
1 Attach the IV system to the pole of the infusion
apparatus stand. Check to make sure the
IV system is secure.
2 Check the stability of the infusion apparatus
stand.
3 Connect the cable connection (C) between the
IV system and the IV system connection in the
connection field for patient monitoring.
– Use extension cable if necessary.
For stability reasons, an additional attachment to
the infusion apparatus stand is necessary from
three syringe pumps upwards.
z Use an additional screw clamp.
Using Quicklock
1 Secure the connector with Quicklock until it can
be felt and heard to have engaged.
2 To unlock, squeeze the Quicklock on both sides
and remove the connector.
Use port saver
To protect the IV socket on Zeus IE, it is recom-
mended that an adapter (port saver) be used.
1 Attach the adapter to the IV connection point on
Zeus IE.
2 Insert the IVDock plug into the adapter.
z Replace the adapter if worn.

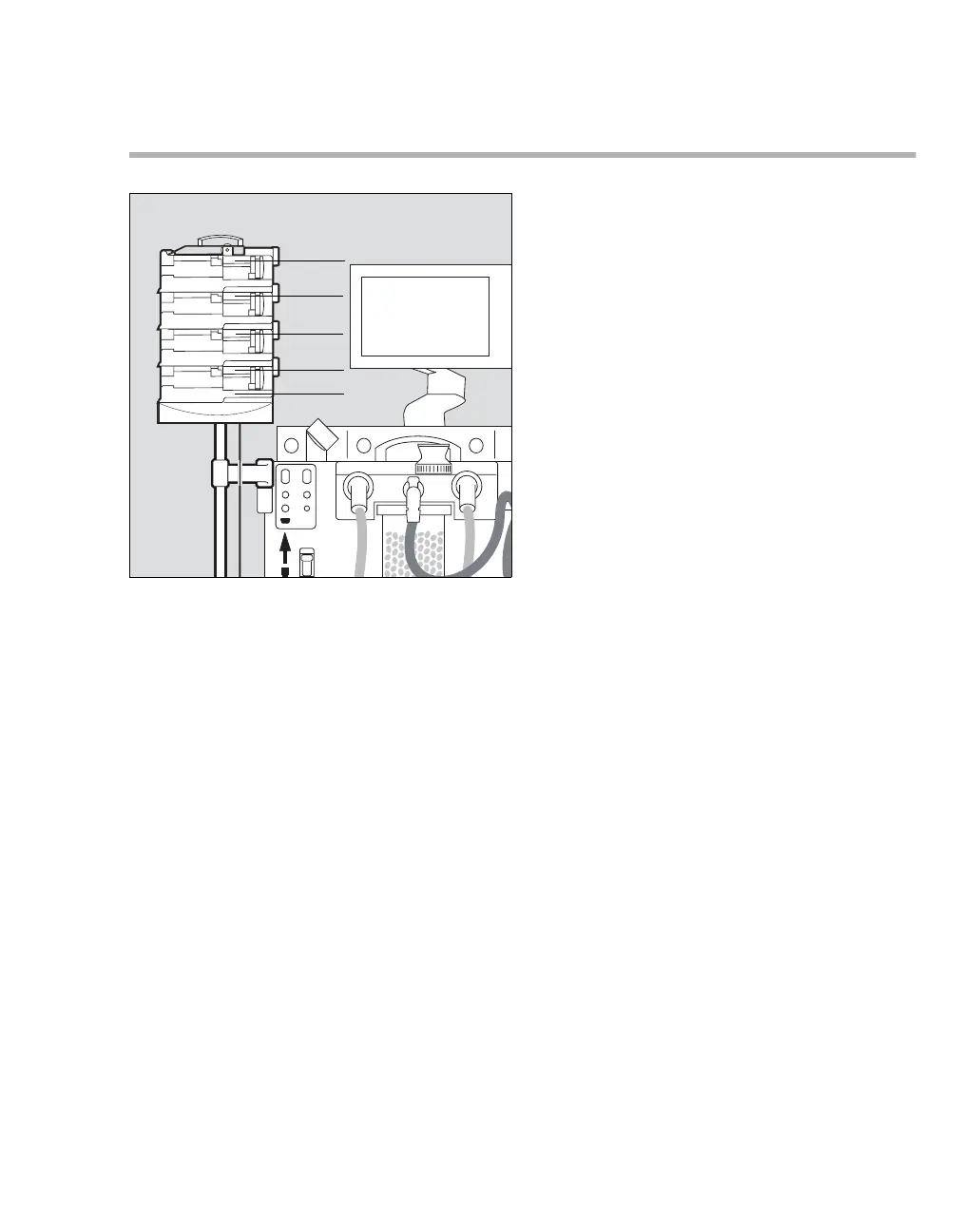

The positions of the Module DPS syringe pumps on
the IVDock (basis) determine the identification of
the syringe pumps for syringe pump control (1 to 4),
see page 141.
171
A
B
C
DPS 4
DPS 3
DPS 2
DPS 1
IV Dock
