Operation
Ventilation mode Volume Control
Volume Control with constant flow
Volume-controlled ventilation with fixed mandatory
minute volume MV, adjusted with tidal volume VT
and respiratory rate RR.
For patients without spontaneous breathing.

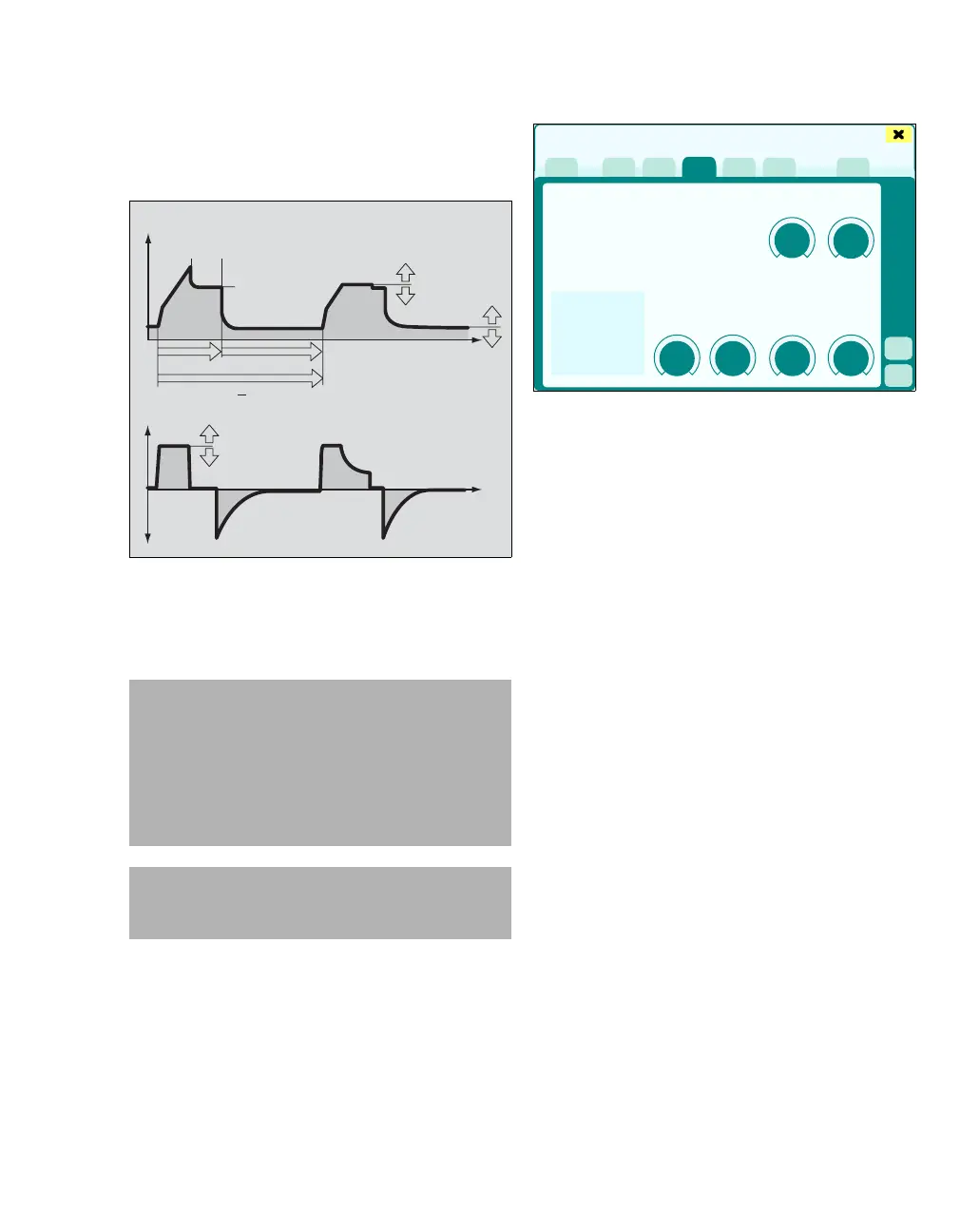

Adjust ventilation pattern with ventilation parame-
ters:
A Maximum airway pressure P
max
B Tidal volume VT
C Respiratory rate RR
D Positive end-expiratory pressure PEEP
E Inspiration time T
i or I:E
In the configuration (see page 349), specify
whether T
i or the I:E ratio is used.
F Pause time % Tplat
259
WARNING
Risk of patient injury
Do not use Volume Control
ventilation mode
with intrinsic PEEP (alarm message: Exp. time
too short). Expiratory flow does not return to
the base line. This can cause an excessive
pressure rise in ventilation pressure.
CAUTION
The administered volume may be lower than the
set volume if there is a leak!
1
t
t
Insp. Flow
% Tplat
(configura-
ble)
Paw
PEEP
Flow
RR
T
i
Pplat
T
e
Pmax
340
Ventilation settings
A
B
C
D
E
F
